IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL
Chapter 4 Functional Checks 4 - 7
4-3-5-2 LOGIQ C Series SoftMenu Key Tour
1.) Top Menu Controls op Menu Controls
2.) Sub menu Controls: Activates Sub Menu for Modes and toggles/changes functions
A.) Press F5 on the keyboard to activate Sub Menu,
B.) Use the Direction keys to toggle/change functions

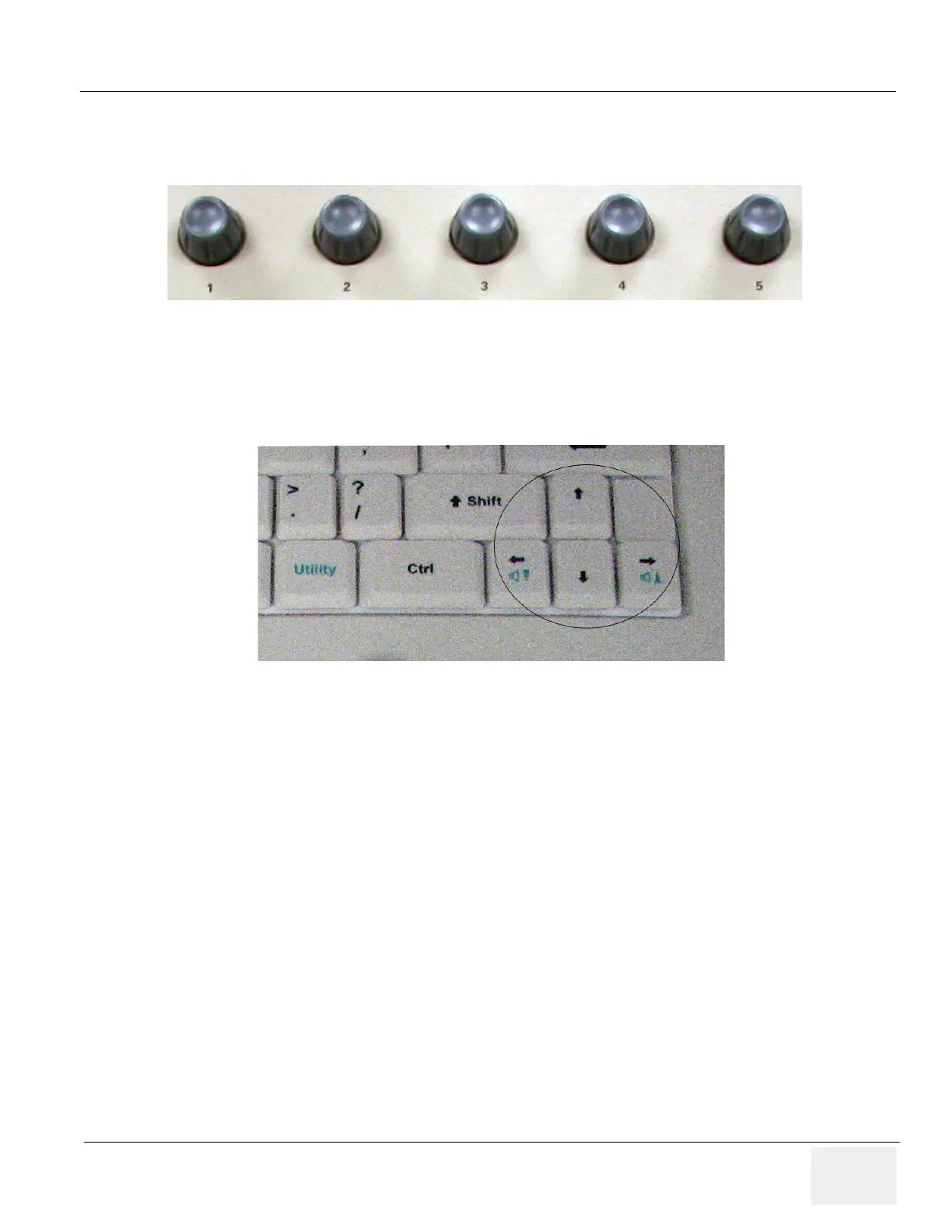

Figure 4-5 SoftMenu Key Tour
Figure 4-6 Sub Menu Controls
