GE HEALTHCARE LOGIQ C3/C5 PREMIUM
DIRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
Chapter 4 Functional Checks 4 - 31
4-3-14-4 Archiving Images (cont’d)
7.) Press PATIENT
and set the Dataflow to store images directly to CD-ROM.
8.) From the image screen, press EZBACKUP/MOVE
. The Move Images pop-up appears.
9.) Press Next
on pop-up message.
10.)A media check message appears. Press OK
to continue.

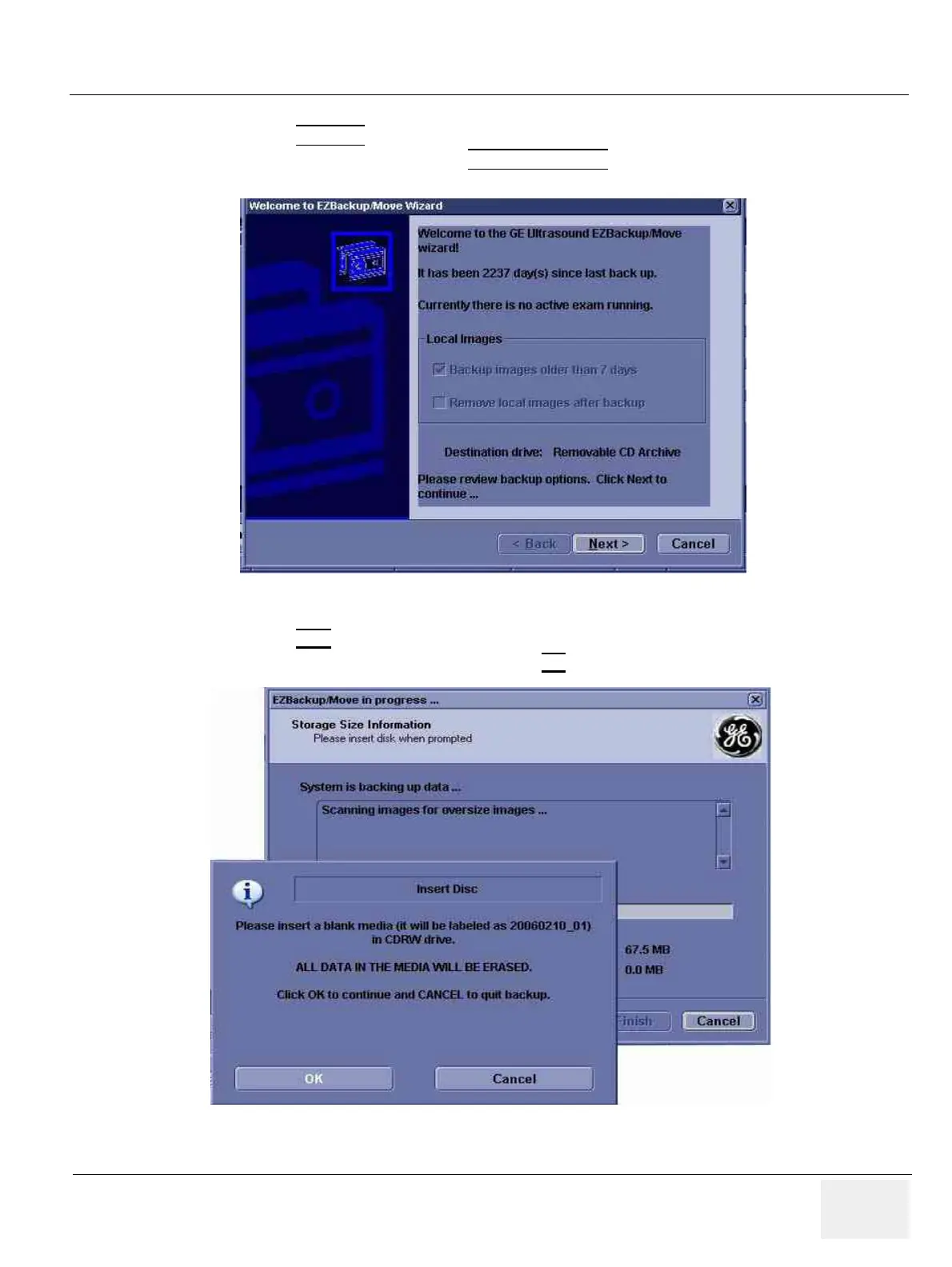

Figure 4-40 Image Archive Move Pop-up Menu
Figure 4-41 Media check message
