GE HEALTHCARE LOGIQ C3/C5 PREMIUM
DIRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
Chapter 4 Functional Checks 4 - 9
4-3-6 B Mode Checks
4-3-6-1 Preparations
1.) Connect one of the probes listed in 3-6-6 "Available Probes" on page 3-19, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

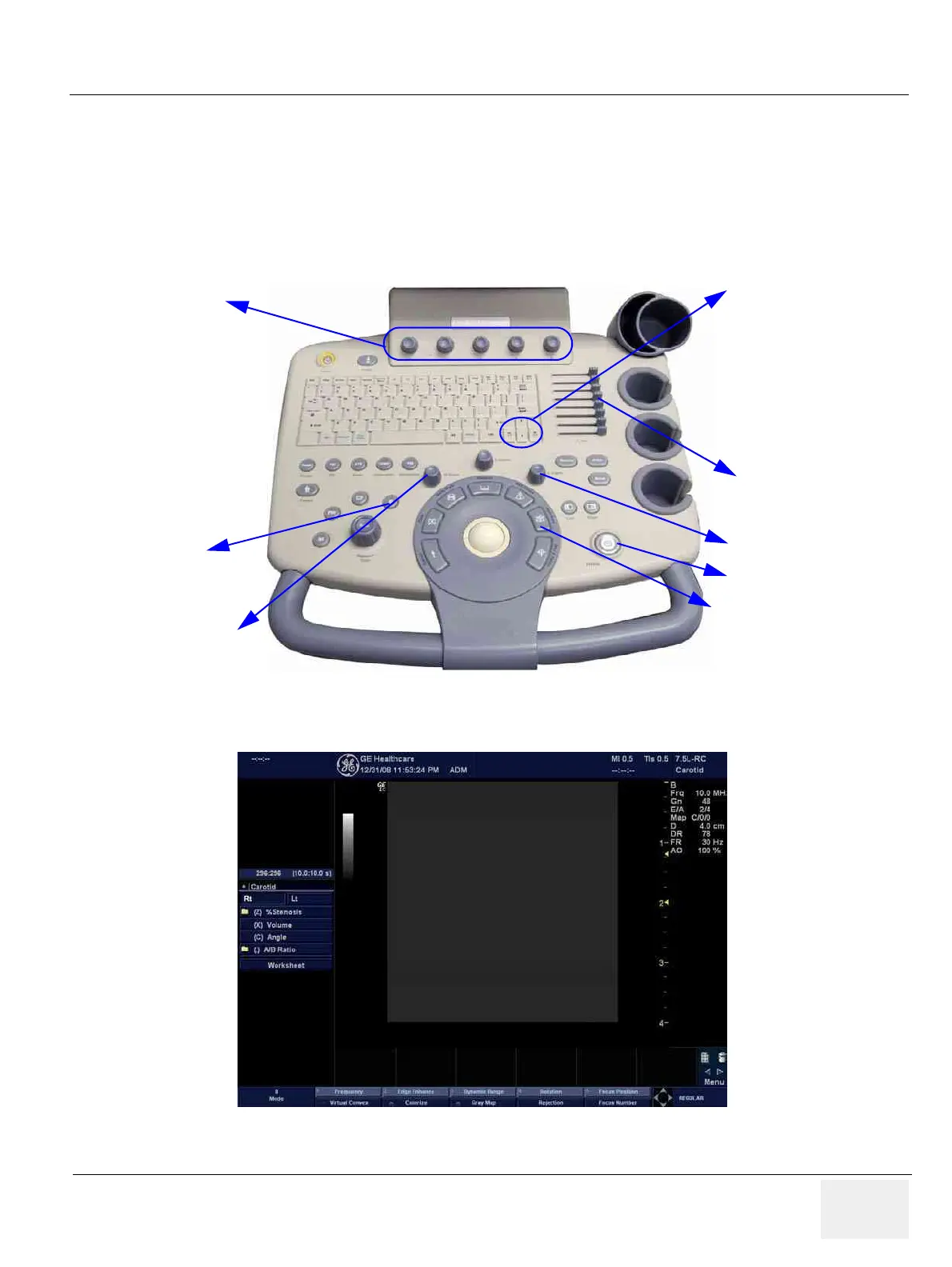

Figure 4-26 Controls available in B Mode
Figure 4-27 B Mode Screen Picture Example
Biopsy Kit
Frame Average
Line Density
Focus Width
B softener
Power Output
Suppression
Range Focus
Secondary Menu
TGC
Depth
Scan Area
Freeze
Zoom
SoftMenu Key
Frequency
Virtual Convex
Edge Enhance
Colorize
Dynamic Range
Gray Map
Rotation
Rejection
Focus Position
Focus Number
B Mode
To Next Page
