GE HEALTHCARE LOGIQ C3/C5 PREMIUM
DIRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
4 - 8 Section 4-3 - General Procedure
4-3-5-3 Monitor Display

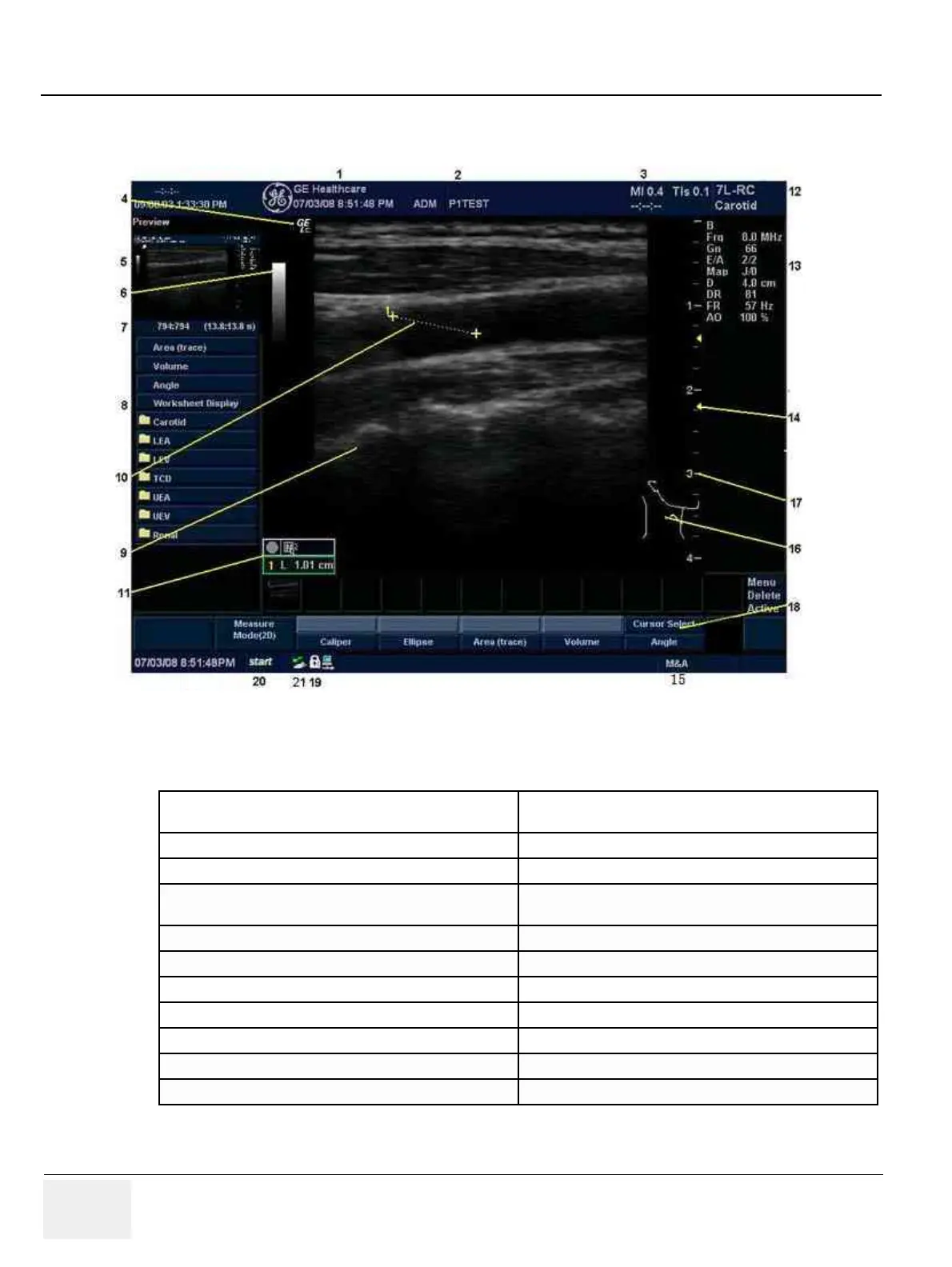

Figure 4-25 Monitor Display Tour
Table 4-2 Monitor Display Features
1. Institution/Hospital Name, Date, Time, Operator
Identification, system status (real-time of frozen).
12. Probe Identifier. Exam Study.
2. Patient Name, Patient Identification. 13. Imaging Parameters by Mode (current mode highlighted).
3. Acoustic Output Readout, 14. Focal Zone.
4. GE Symbol: Probe Orientation Marker. Coincides with a
probe orientation marking on the probe.
15. Trackball Functionality Status: Scroll, M&A (Measurement
and Analysis), Position, Size, Scan Area Width and Tilt.
5. Image Preview. 16. Body Pattern.
6. Grey/Color Bar. 17. Depth Scale.
7. Cine Gauge. 18. SoftMenu
8. Measurement Summary Window. 19. Caps Lock: On/Off.
9. Image. 20. Start menu icon.
10. Measurement. 21. Card icon.
11. Results Window.
