GE HEALTHCARE LOGIQ C3/C5 PREMIUM
DIRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
Chapter 4 Functional Checks 4 - 15
4-3-8 Doppler Mode Checks
4-3-8-1 Preparations
1.) Connect one of the probes listed in 3-6-6 "Available Probes" on page 3-19, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

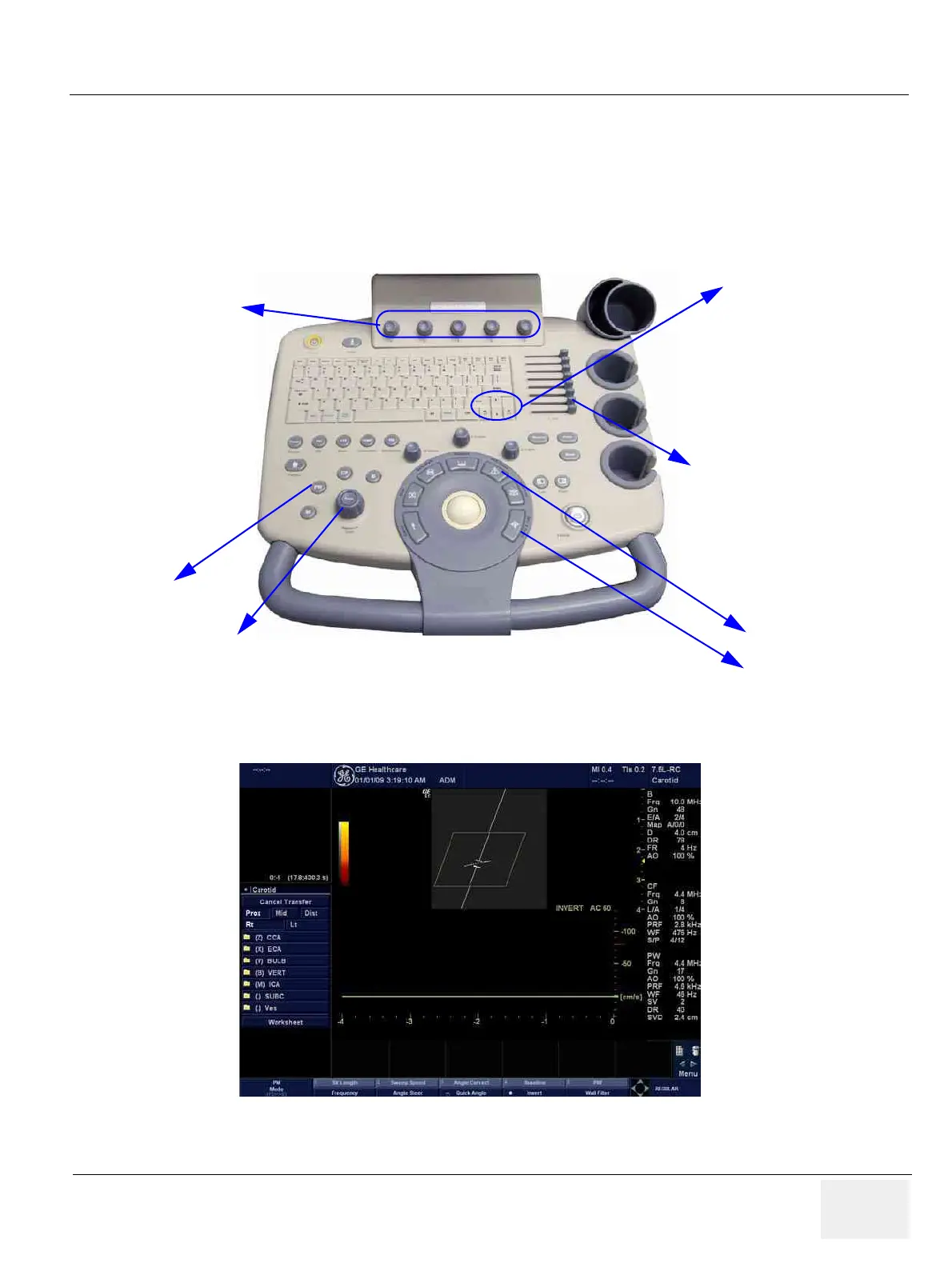

Figure 4-30 Controls available in Doppler Mode
Figure 4-31 Doppler Mode Screen Picture Example
Secondary Menu
Gain
M/D Cursor
Primary Menu
Frequency
SV Length
Sweep Speed
Angle Steer
Angle Correct
Quick Angle
Baseline
Invert
PRF
Wall Filter
PW-Mode
Rejection
Dynamic Range
Display Format
Full Timeline
Trace Method
Trace Sensitivity
Trace direction
Modify, Auto Calcs
PW/CF Ratio
Duplex
Time Resolution
Colorize
Gray Map
Power Output
Auto Calcs
Spectral Average
Cycles, to Average
B Pause Cursor
TGC
To Next Page
