GE HEALTHCARE VIVID FIVE
D
IRECTION 5341787-100, REVISION 8 BASIC SERVICE MANUAL
8 - 6 Section 8-4 - Loading Base Image Software
Section 8-4Loading Base Image Software
NOTE: While it is believed to be unnecessary, It would not hurt to disconnect the system from the
network and remove all transducers.
NOTE: Please ensure power cable is connected during system upgrade!
1.) Insert the disk labeled “System & Application Software” into the DVD ROM drive.
2.) Properly turn off the scanner by momentarily pressing the Power On/Off Switch. Select “Shut
Down” from the System Exit menu.
3.) If the system will not shutdown normally, hold down the Power On/Off Switch until the light
turns from green to amber.
4.) Turn on the system. System will detect the DVD-RW automatically.
5.) Press any key to continue when below message display as shown below.

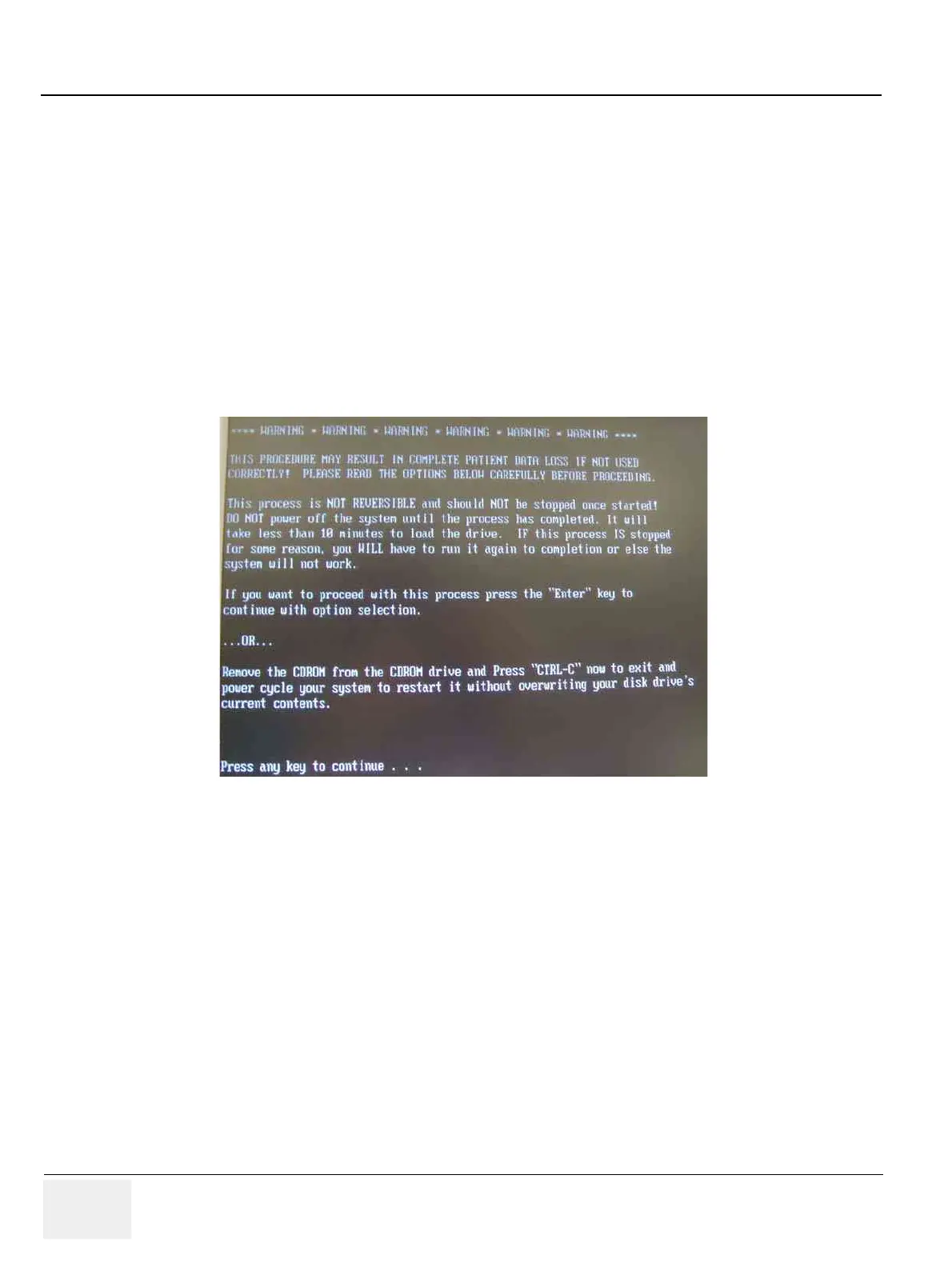

Figure 8-65 Upgrade message
To Next Page
