GE HEALTHCARE VIVID FIVE
D
IRECTION 5273008-100, REVISION 8 BASIC SERVICE MANUAL
Chapter 3 System Setup 3 - 13
3-6-5-2 Left Panel Connector
1 USB port is Located on the left panel.
1.) 1 USB Ports (Printers, Footswitch, etc)
3-6-5-3 Printer Box Rear Panel connector
1.) 1 USB Ports only for B/W Printer
NOTE: Each outer (case) ground line of peripheral/accessory connectors are protectively grounded.
Signal ground lines are not isolated, except the Service port (3). All of signal lines (include signal
GND) of the Service port are isolated.

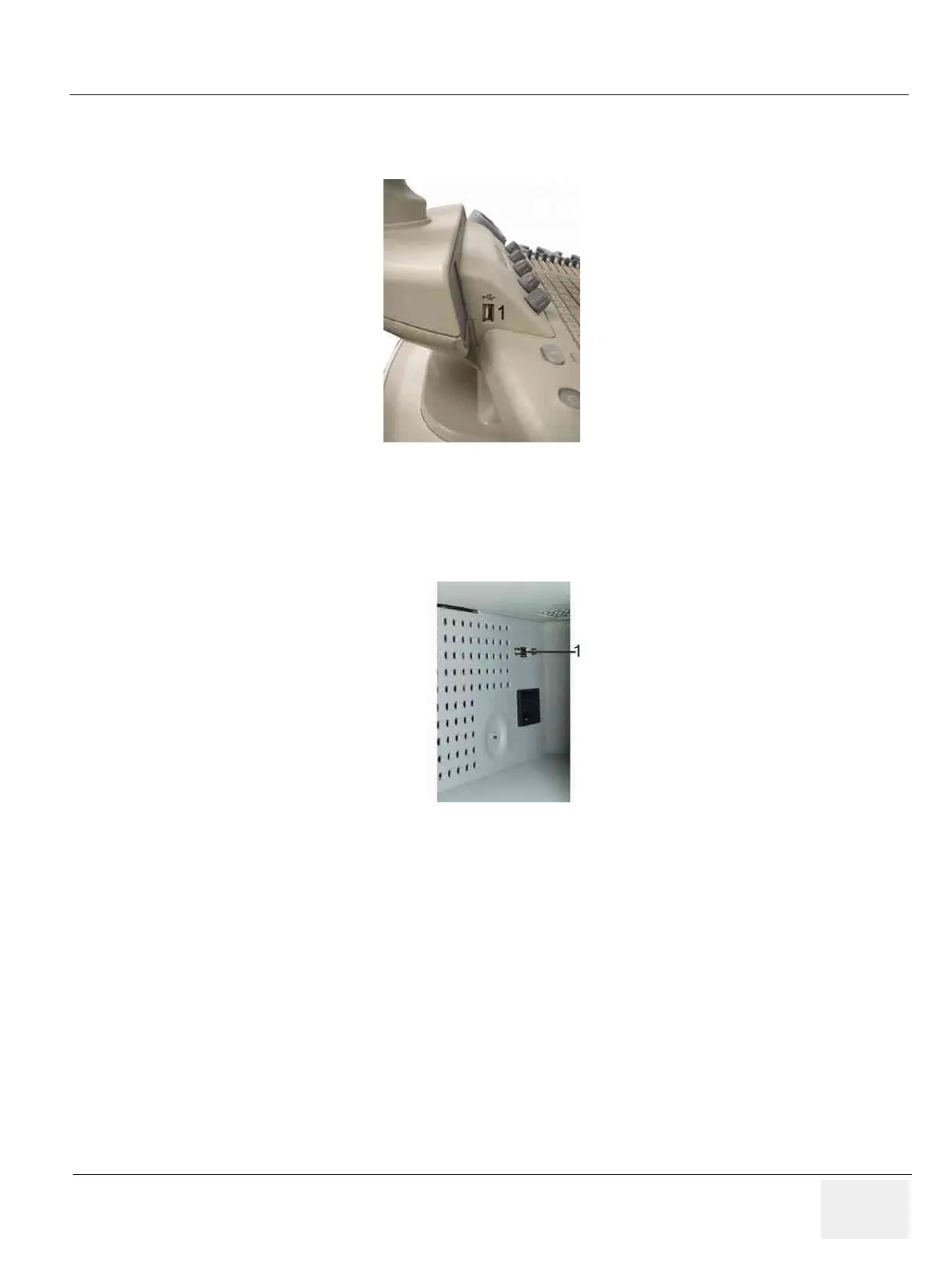

Figure 3-7 Left Connector Panel
Figure 3-8 Printer Box Rear Connector Panel
