GE HEALTHCARE VIVID FIVE
D
IRECTION 5273008-100, REVISION 8 BASIC SERVICE MANUAL
Chapter 3 System Setup 3 - 17
3-6-5-5 Connect Peripherals (cont’d)
E.) Connect the USB Memory to the system. The USB Memory can be properly connected using USB
ports.
F.) ECG can be properly connected using USB ports. (ECG only supported by LOGIQ C5 Premium)

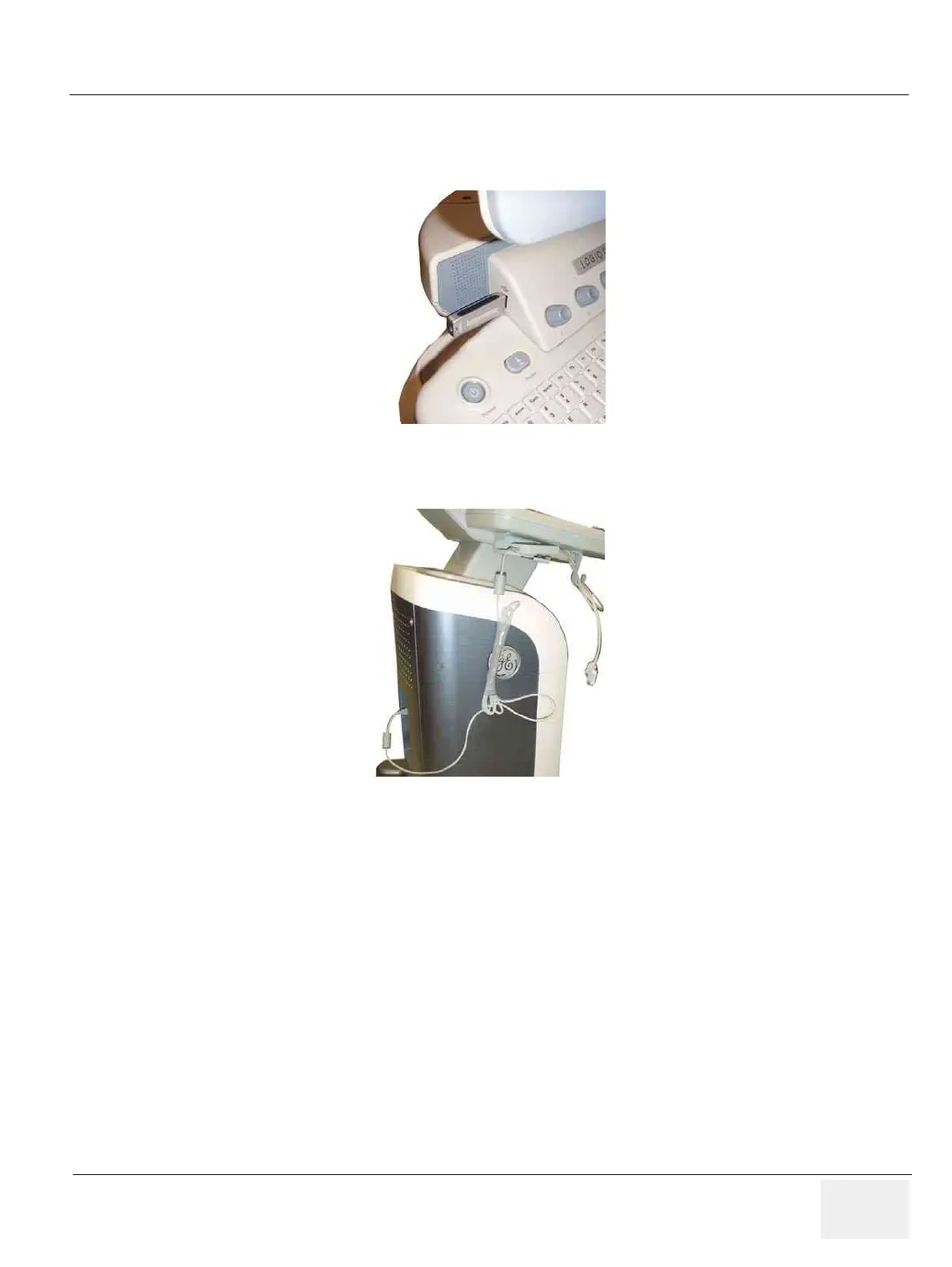

Figure 3-13 USB Memory Connection
Figure 3-14 ECG Connection
