GE M60 UR Series

2-2 M60 Motor Protection System GE Multilin
2.1 INTRODUCTION 2 PRODUCT DESCRIPTION
2

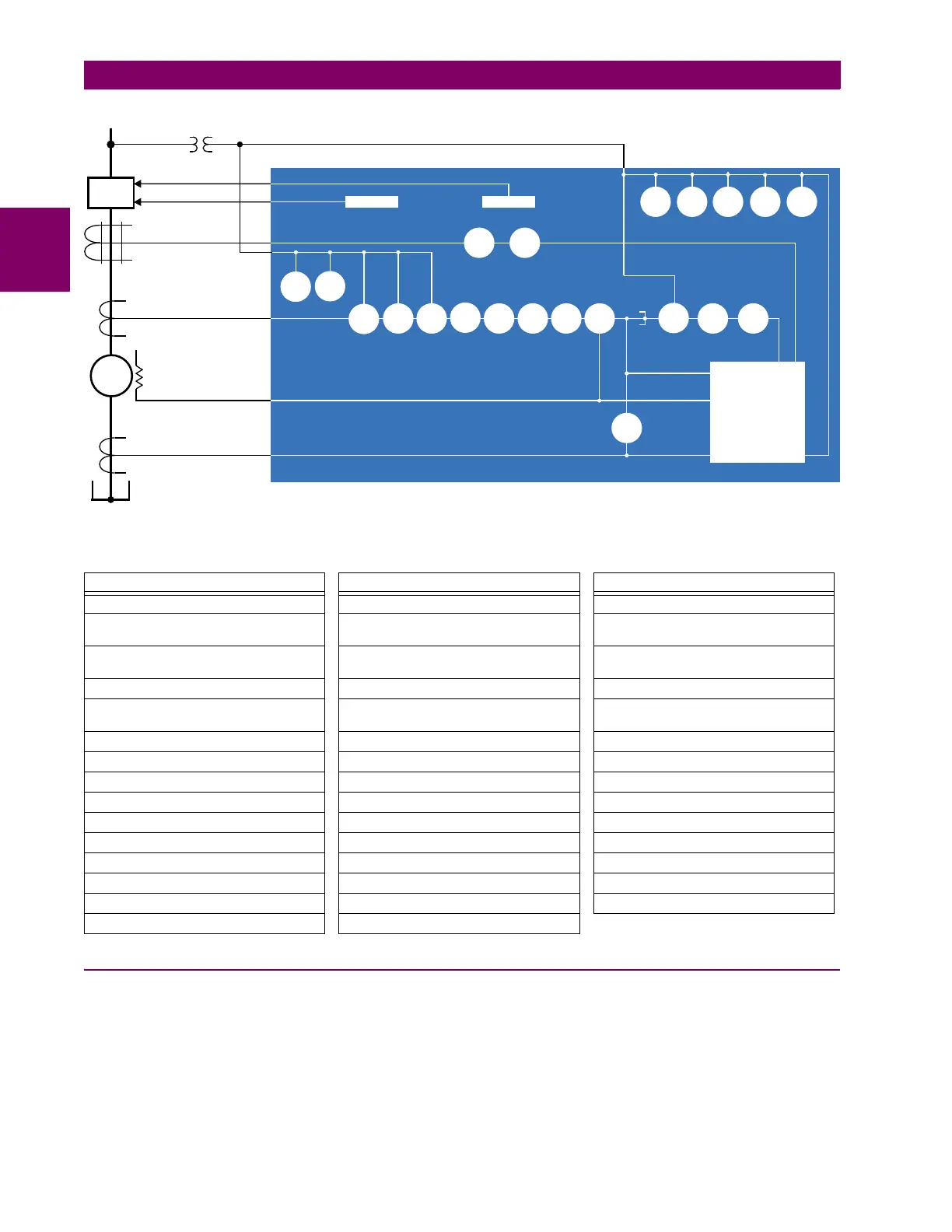

Figure 2–1: SINGLE LINE DIAGRAM
2.1.2 SECURITY
The following security features are available:
• Password security — Basic security present in the default offering of the product
• EnerVista security — Role-based access to various EnerVista software screens and configuration elements. The fea-
ture is available in the default offering of the product and only in the EnerVista software.
• CyberSentry security — Advanced security options available as a software option. When purchased, the options are
automatically enabled, and the default Password security and EnerVista security are disabled.
Table 2–2: OTHER DEVICE FUNCTIONS
FUNCTION FUNCTION FUNCTION
Breaker Control FlexElements (16) Setting Groups (6)
Broken Rotor Bar Detection FlexLogic Equations Time synchronization over IRIG-B or
IEEE 1588
Contact Inputs (up to 96) IEC 60870-5-103 Communications
(optional)
Time Synchronization over SNTP
Contact Outputs (up to 96) IEC 61850 Communications (optional) Transducer Inputs/Outputs
Control Pushbuttons Metering: Current, Voltage, Power, and
Frequency
Trip Bus
CT Failure Detector Modbus Communications Two-Speed Motor
CyberSentry™ Security Modbus User Map User Definable Displays
Current Unbalance Motor Learned Data User Programmable Fault Report
Digital Counters (8) Non-Volatile Latches User Programmable LEDs
Digital Elements (48) Non-Volatile Selector Switch User Programmable Pushbuttons
Direct Inputs/Outputs (32) Oscillography User Programmable Self-Tests
Disconnect Switches Reduced Voltage Starting Virtual Inputs (64)
DNP 3.0 or IEC 60870-5-104 protocol Remote RTD Protection Virtual Outputs (96)
Ethernet Global Data Protocol (optional) RTD Inputs VT Fuse Failure
Event Recorder RTD Protection
$'&'5
*
*
3 
1
6

0HWHULQJ
7ULS
&ORVH
00RWRU3URWHFWLRQ6\VWHP
0

3
B
1
3 %)
1%)
1
3 
8
2
3
