GE M60 UR Series

5-230 M60 Motor Protection System GE Multilin
5.7 CONTROL ELEMENTS 5 SETTINGS
5
d) RESTART DELAY
PATH: SETTINGS  CONTROL ELEMENTS  START SUPERVISION  RESTART DELAY
The RESTART DELAY MIN TIME setting specifies the lockout time to start the motor after motor was stopped. The restart delay
element asserts the
RESTART DELAY OP FlexLogic operand for RESTART DELAY MIN TIME after the motor stopped. The ele-
ment uses motor status asserted by the thermal model element. The thermal protection must be configured properly in
order for this function to operate.

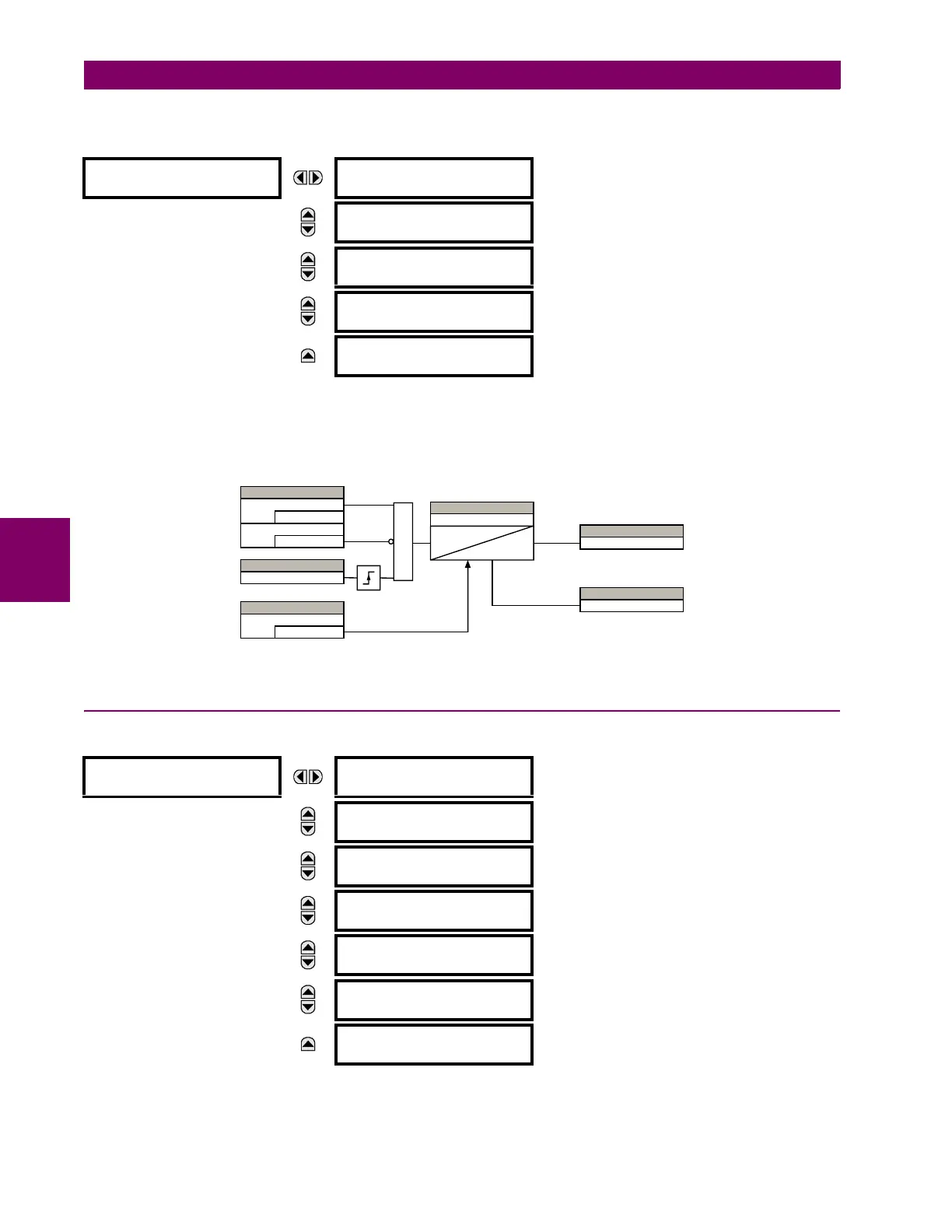

Figure 5–116: RESTART DELAY SCHEME LOGIC
5.7.8 REDUCED VOLTAGE STARTING
PATH: SETTINGS  CONTROL ELEMENTS  REDUCED VOLTAGE STARTING
 RESTART DELAY

RESTART DELAY
FUNCTION: Disabled
Range: Disabled, Enabled
MESSAGE
RESTART DELAY
MIN TIME: 0 s
Range: 0 to 50000 s in steps of 1
MESSAGE
RESTART DELAY BLOCK:
Off
Range: FlexLogic operand
MESSAGE
RESTART DELAY
TARGET: Self-reset
Range: Self-reset, Latched, Disabled
MESSAGE
RESTART DELAY
EVENTS: Disabled
Range: Disabled, Enabled
 REDUCED VOLTAGE
 STARTING
REDUCED VOLTAGE
STARTING: Disabled
Range: Disabled, Enabled
MESSAGE
TRANSITION MODE:
Current Only
Range: Current Only, Current or Timer,
Current and Timer
MESSAGE
REDUCED VOLT FLA:
125% FLA
Range: 25 to 300% FLA in steps of 1
MESSAGE
REDUCED VOLT TIMER:
10.0 s
Range: 1.0 to 600.0 s in steps of 0.1
MESSAGE
REDUCED VOLT BLOCK:
Off
Range: FlexLogic operand
MESSAGE
REDUCED VOLT TARGET:
Self-reset
Range: Self-reset, Latched, Disabled
MESSAGE
REDUCED VOLT EVENTS:
Disabled
Range: Disabled, Enabled
833017A4.CDR
SETTING
Enabled = 1
Function
Off = 0
Block
AND
FLEXLOGIC OPERAND
MOTOR OFFLINE
SETTING
= Off
Emergency Restart
restart from lockout
from the motor setup settings
SETTING
Minimum Time
0
T
RESET
FLEXLOGIC OPERAND
RESTART DELAY OP
ACTUAL VALUE
Restart Delay Lockout
