GE MiCOM P145 Agile - Figure 116: Star Connected Condenser Bushings; Figure 117: Theoretical Earth Fault in Condenser Bushing System

Warning:
When operating in areas with r
estricted space, suitable protective barriers must be
used where there is a risk of electric shock due to exposed terminals.
Neutral Voltage
Displacement Relay
(NVD)
E00819

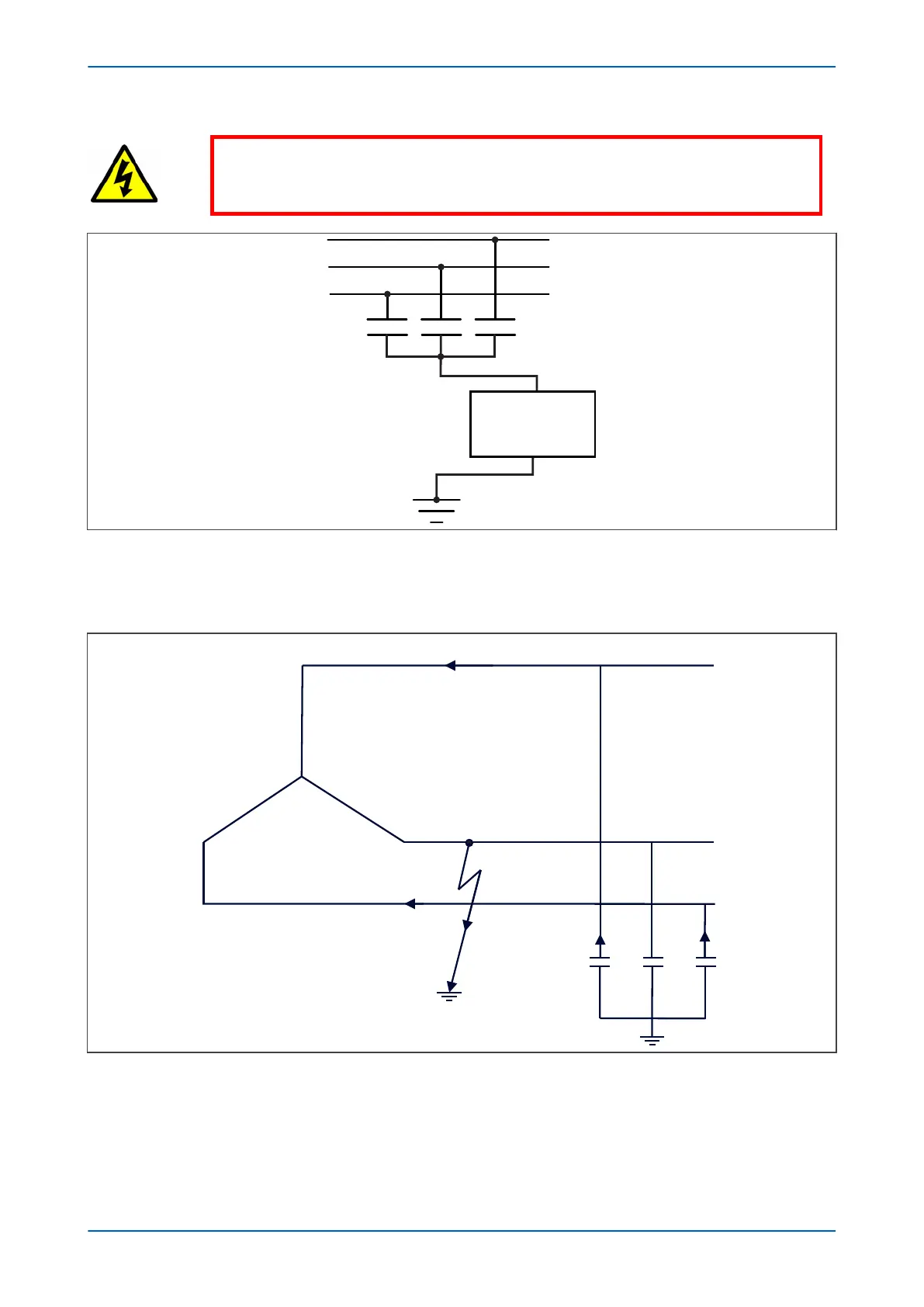

Figure 116: Star connected condenser bushings
Calculations for Condenser Bushing Syst
ems
Consider a single-phase fault to ground on B-Phase:
V
a
I
F
I
C
I
A
V
b
V
c
N
-jXc -jXc -jXc
E00820
Figure 117: Theoretical earth fault in condenser bushing system
