GE MiCOM P145 Agile - Figure 204: Automatic Selection of Disturbance Record - Method 1

V01004
Start
Read status word from
r
e
gister 3x0001
Is disturbance bit
(b
it 4) set?
Select next oldest non-
ex
tracted record by writing
0x04 to register 4x00400
Send command to accept
re
cord by writing 0x08 to
register 4x00400
Extract disturbance data
Yes
No
Error

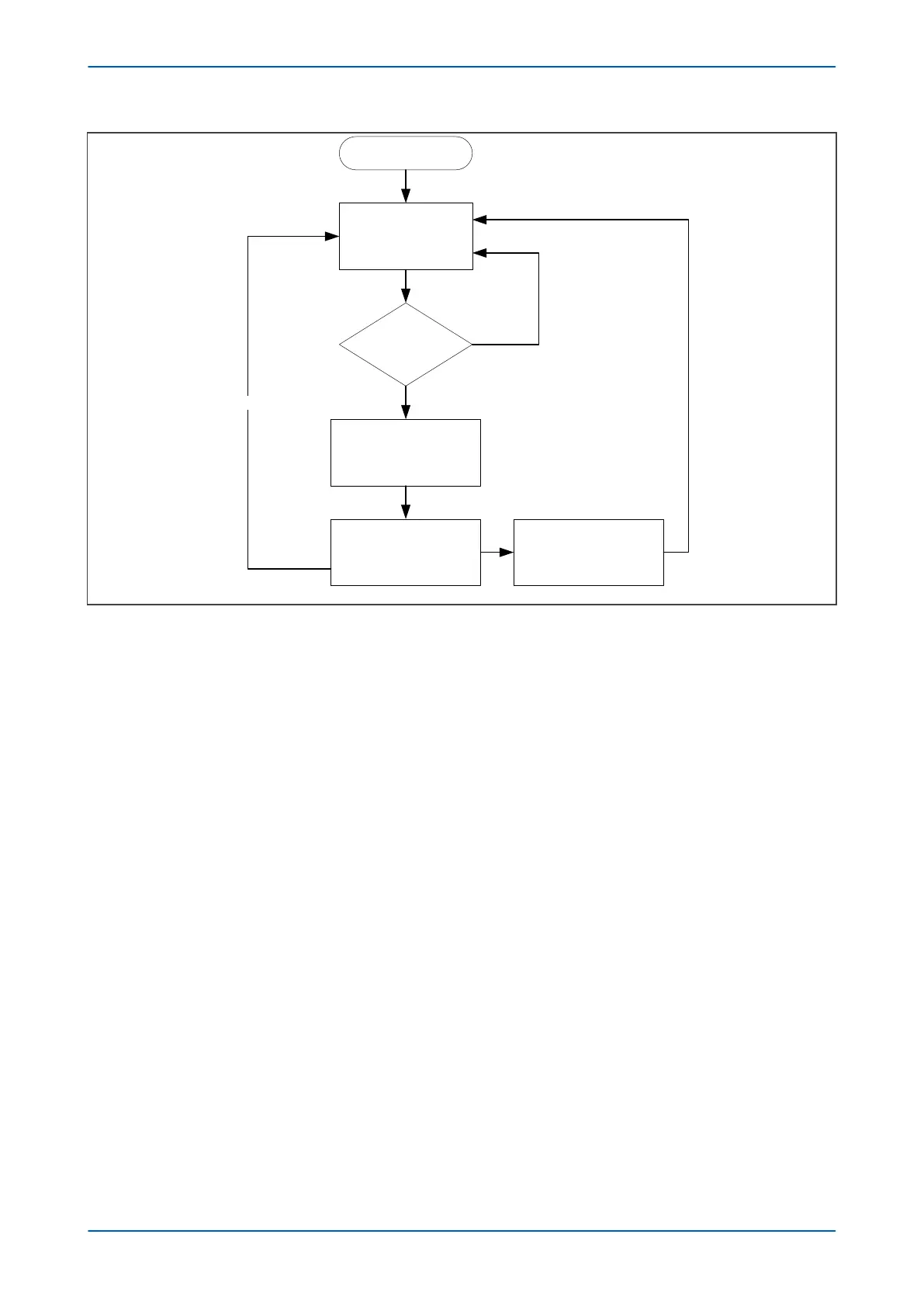

Figure 204: Automatic selection of disturbance record - method 1
Method 2
Method 2 is more complex to implement but is more efficient at extracting large quantities of disturbance records.
This may be useful when the disturbance recorder is polled only occasionally and therefore may have many stored
records.
