GE MiCOM P145 Agile - Case Dimensions 80 TE; Figure 217: 80 TE Case Dimensions

To Next Page

To Previous Page

5.3 CASE DIMENSIONS 80TE

413.2

177.00

222.00

407.10

30.00

240.00

INCL. WIRING

157.50 MAX

SIDE VIEW

SECONDARY COVER

(WHEN FITTED)

116.55 142.45

12 OFF HOLES

3.40

168.00

4.50

129.50155.40

408.90

62.00

159.00

74.95

FRONT VIEW

TERMINAL SCREWS : M4 X 7 BRASS CHEESE HEAD SCREWS WITH

LOCK WASHERS PROVIDED.

MOUNTING SCREW : M4 X 12 SEM UNIT STEEL THREAD

FORMING SCREW.

FLUSH MOUNTING PANEL

CUT-OUT DETAIL

E01410

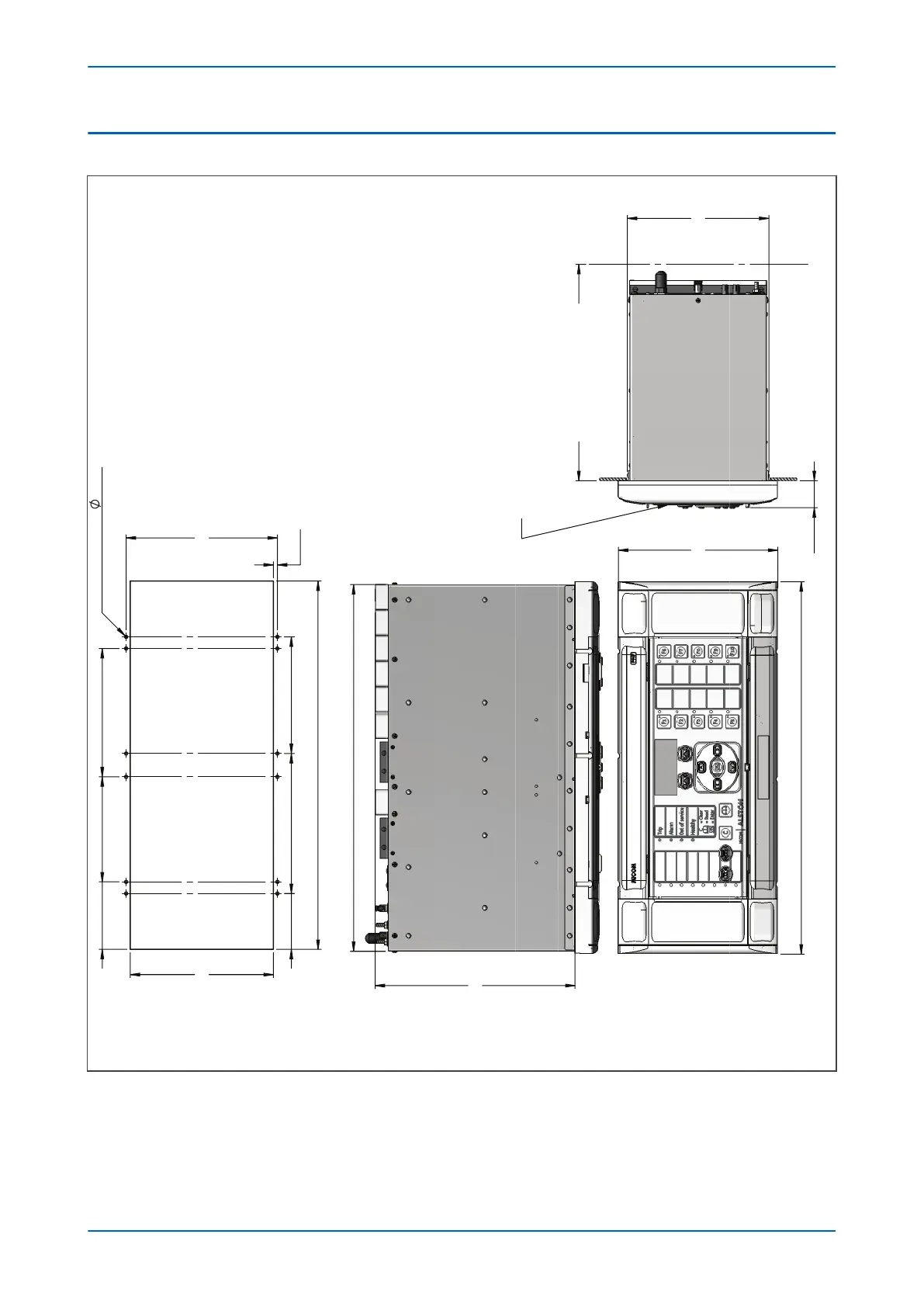

Figure 217: 80TE case dimensions

Chapter 20 - Installation P14x

486 P14xEd1-TM-EN-1
