14 469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
6 Communicating with the relay via the front panel RS232 port
To speed up the process of changing or loading relay setpoints, the use of a computer is
strongly recommended. Refer to the 469 Instruction Manual for additional information on
the serial communication cable to be used to communicate with the relay via the front
port.

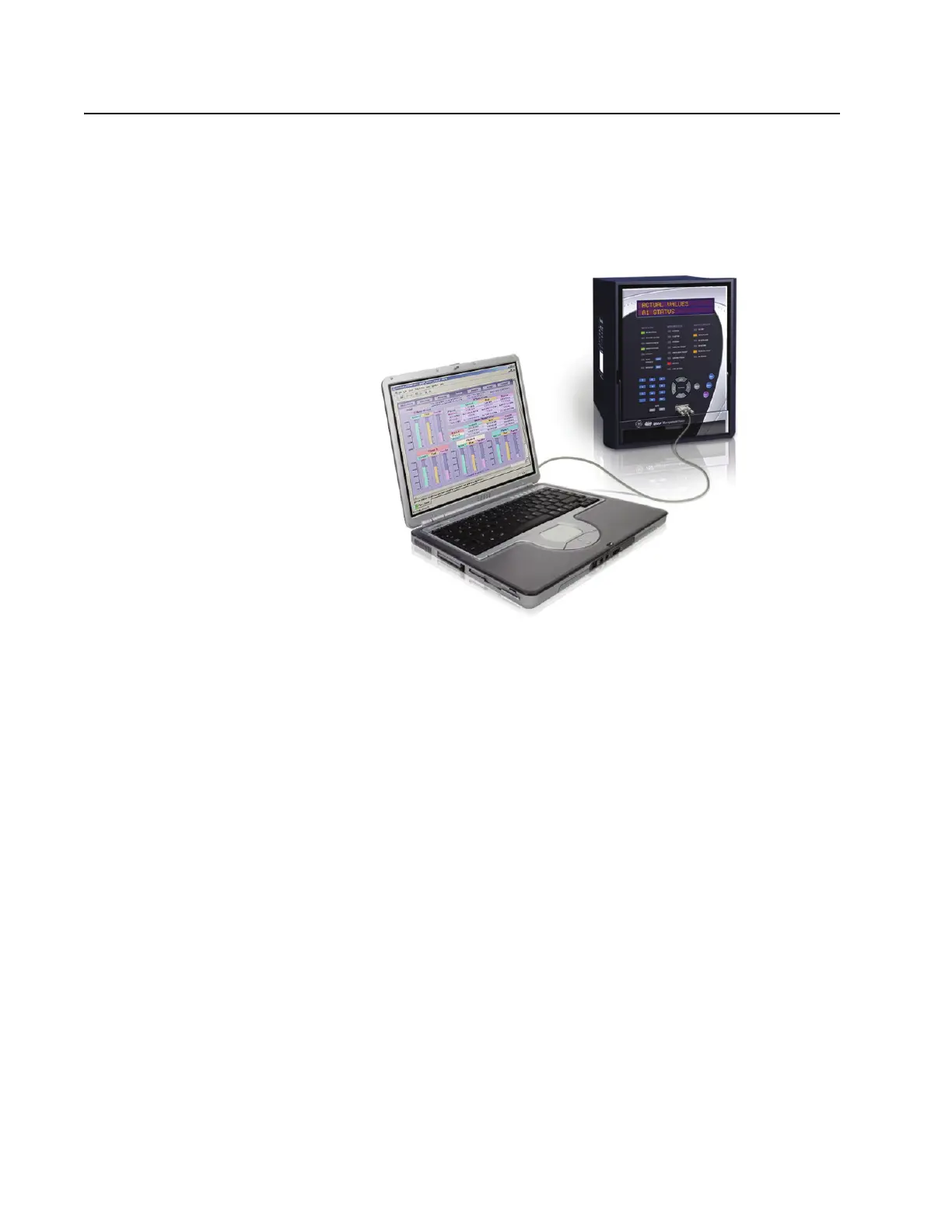

FIGURE 12: RS232 Connection
