GE Multilin 469

38 469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
1. With EnerVista 469 Setup running and communications established, select the Actual
> A4 Event Recorder item from the main menu. This displays the Event Recorder
window indicating the list of recorded events, with the most current event displayed
first.

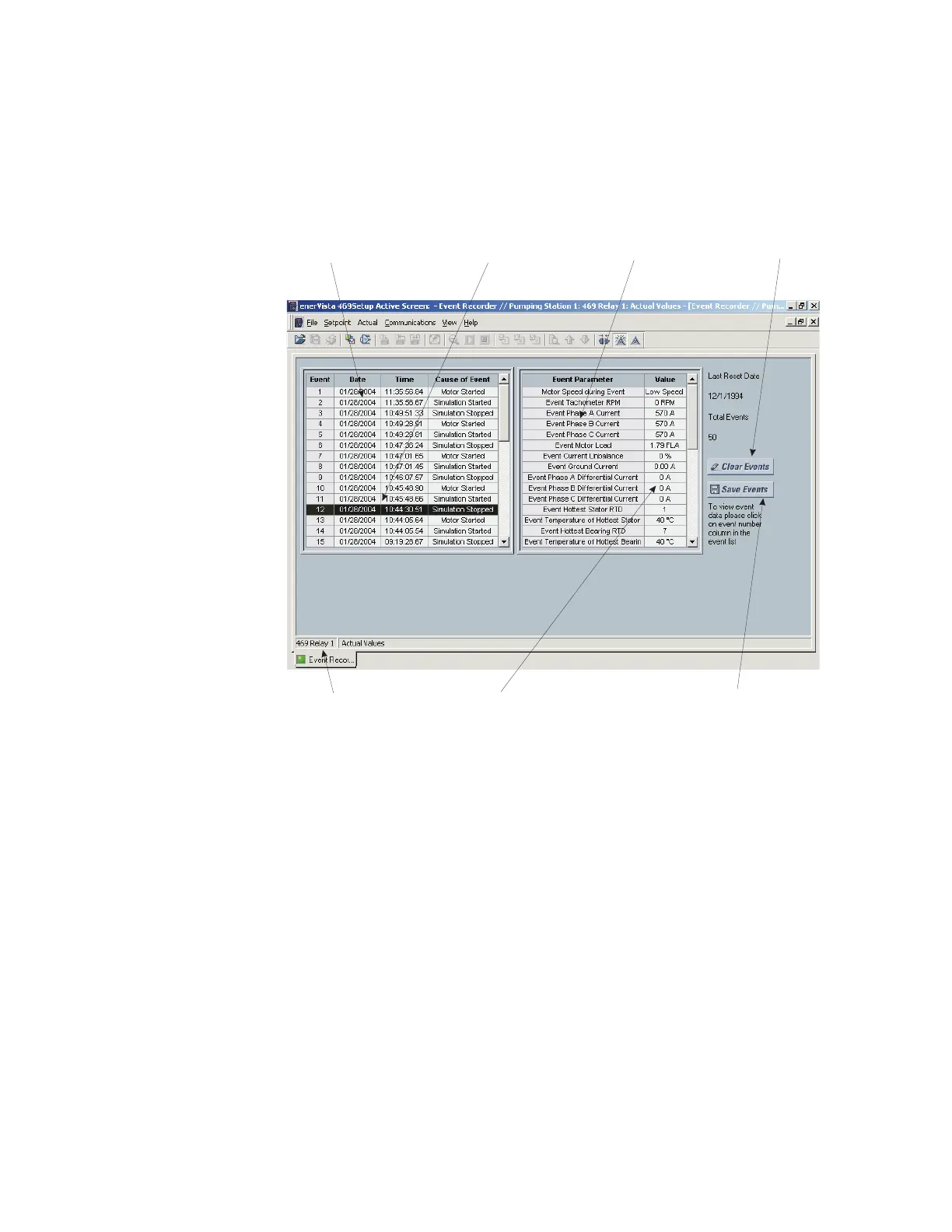

FIGURE 17: Event Recorder Window
2. To view detailed information for a given event and the system information at the
moment of the event occurrence, change the event number on the Select Event box.
11.6 Modbus user map
The EnerVista 469 Setup software provides a means to program the 469 User Map
(Modbus addresses 0180h to 01F7h). Refer to GE Publication GEK-106491: 469
Communications Guide for additional information on the User Map.
1. Select a connected device in EnerVista 469 Setup.
EVENT LISTING
Lists the last 256 events
with the most recent
displayed at top of list.
EVENT SELECTION
Select an event row to
view event data information,
which will be displayed in the
window to the right
CLEAR EVENTS
Click the Clear
Events button to
clear the event list
from memory.
SAVE EVENTS
Click the Save Events
button to save the event
record to the PC as a
CSV file.
EVENT DATA
System information as
measured by the relay
at the instant of the
event occurrence.
DEVICE ID
The events shown here
correspond to this device.
EVENT NUMBER
The event data information
is related to the selected
event is shown
