3. Load the setpoint file to be upgraded into the EnerVista 469 Setup environment as
described in “Adding setpoints files to the environment” on page 23.
4. In the File pane, select the saved setpoint file.
5. From the main window menu bar, select the File > Properties menu item and note the
version code of the setpoint file. If this version (e.g. 4.0X shown below) is different than
the Software Revision code noted in step 2, select a New File Version that matches
the Software Revision code from the pull-down menu.
6. For example, if the software revision is 2.80 and the current setpoint file revision is
4.00, change the setpoint file revision to “4.0X”, as shown below.
7. When complete, click Convert to convert the setpoint file to the desired revision. A
dialog box will request confirmation. See “Loading setpoints from a file” on page 26 for
instructions on loading this setpoint file into the 469.
9.7 Printing setpoints and actual values
The EnerVista 469 Setup software allows the user to print partial or complete lists of
setpoints and actual values. Use the following procedure to print a list of setpoints:
1. Select a previously saved setpoints file in the File pane or establish communications
with a 469 device.
2. From the main window, select the File > Print Settings menu item.

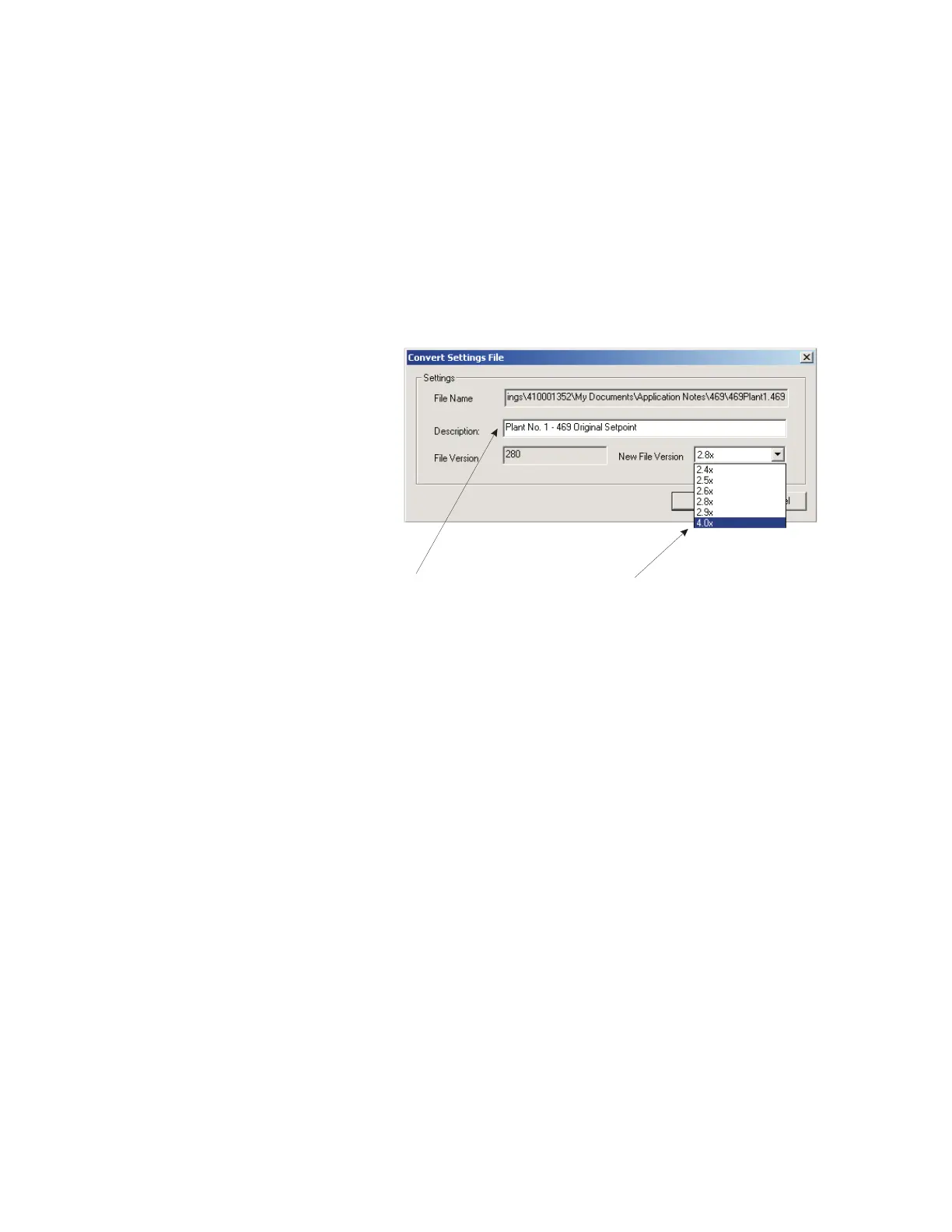

Select the desired setpoint version
from this menu. The 4.0x indicates
versions 4.00, 4.01, 4.02, etc.
Enter any special comments
about the setpoint file here.
