6 469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE

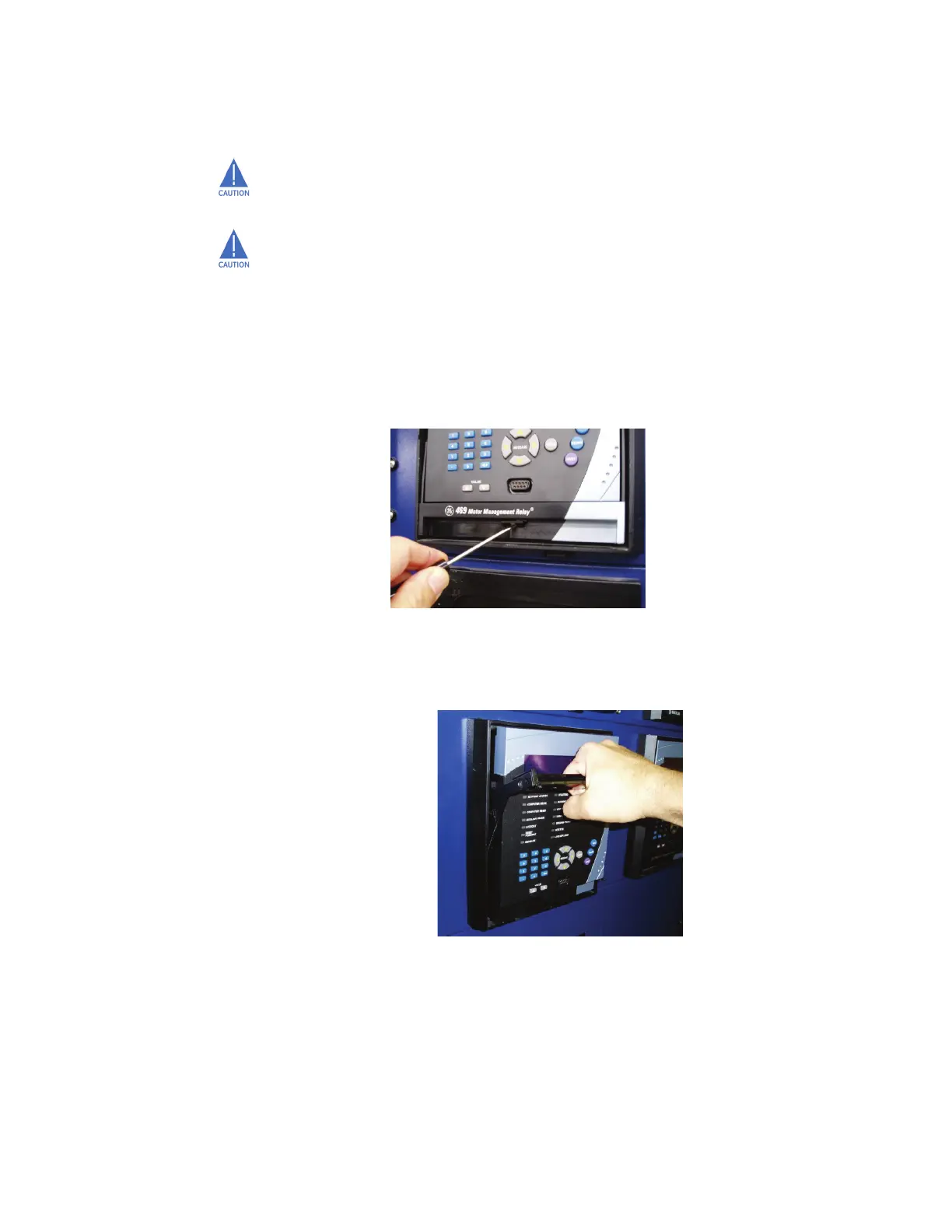

2.3 Unit withdrawal
Turn off control power before drawing out or reinserting the relay to prevent
maloperation!
If an attempt is made to install a relay into a non-matching case, the case's
configuration pin will prevent full insertion. Applying a strong force in this instance will
result in damage to the relay and case.
To remove the unit from the case:
1. Open the door by pulling from the top or bottom of its right side. It will rotate to the left
about its hinges.
2. Press upward on the locking latch, which is located below the handle, and hold in its
raised position. The tip of a small screwdriver may prove helpful in this operation.
FIGURE 5: Press latch up and pull handle
3. With the latch raised, pull the center of the handle outward. Once disengaged,
continue rotating the handle up to the stop position.
FIGURE 6: Rotating handle to stop position
4. When the stop position is reached, the locking mechanism will release. The relay will
now slide out of the case when pulled from its handle. To free the relay, it may
sometimes be necessary to adjust the handle position slightly.
