469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE 5

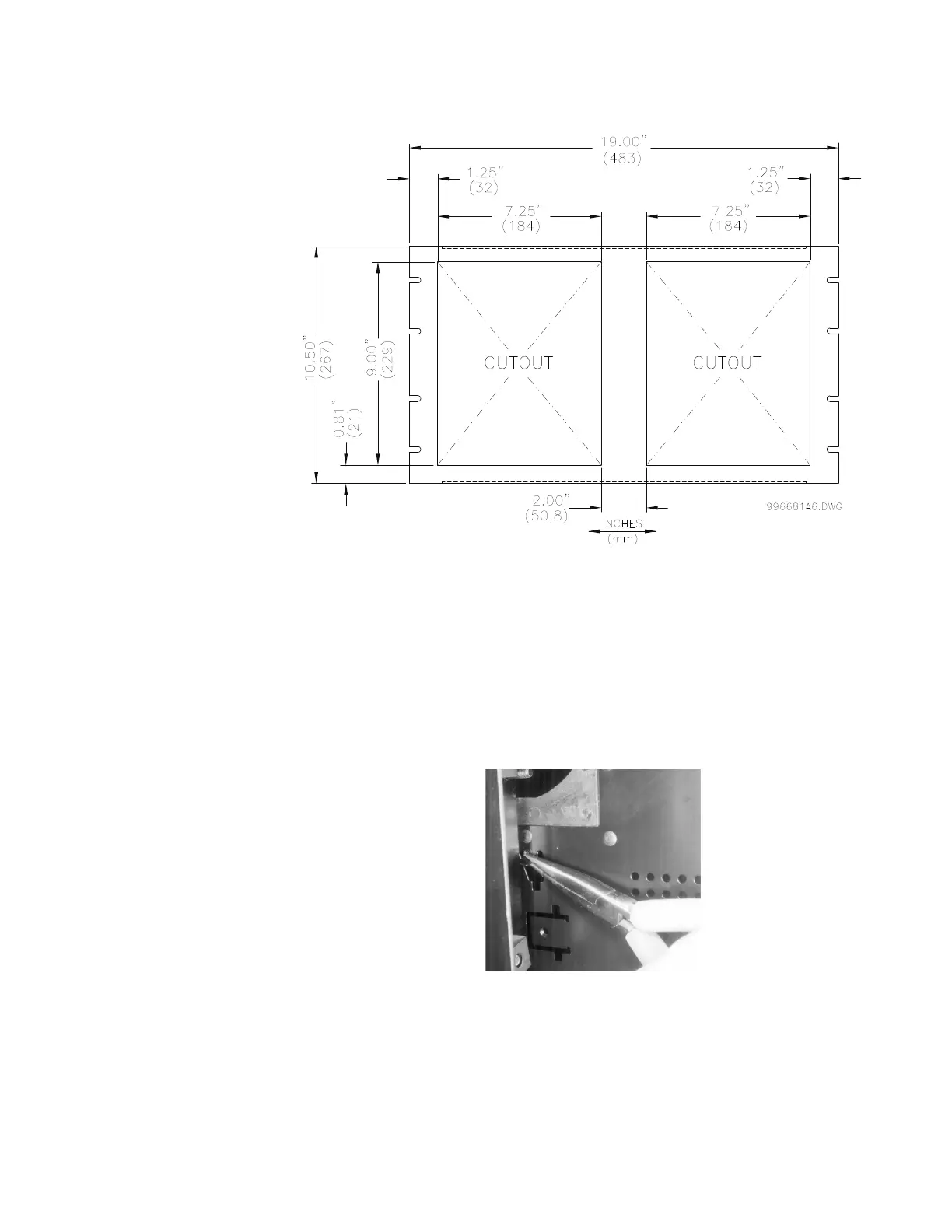

FIGURE 3: Single and double unit panel cutouts
Before mounting the 469 in the supporting panel, remove the unit from the case.
From the front of the panel, slide the empty case into the cutout. To ensure the front bezel
sits flush with the panel, apply pressure to the bezel front while bending the retaining tabs
90°. These tabs are located on the sides and bottom of the case and appear as shown
below. After bending all tabs, the case will be securely mounted and the relay can be
inserted. The SR unit is now ready for panel wiring.
FIGURE 4: Mounting Tabs
