QUICK REFERENCE GUIDE
469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE 33

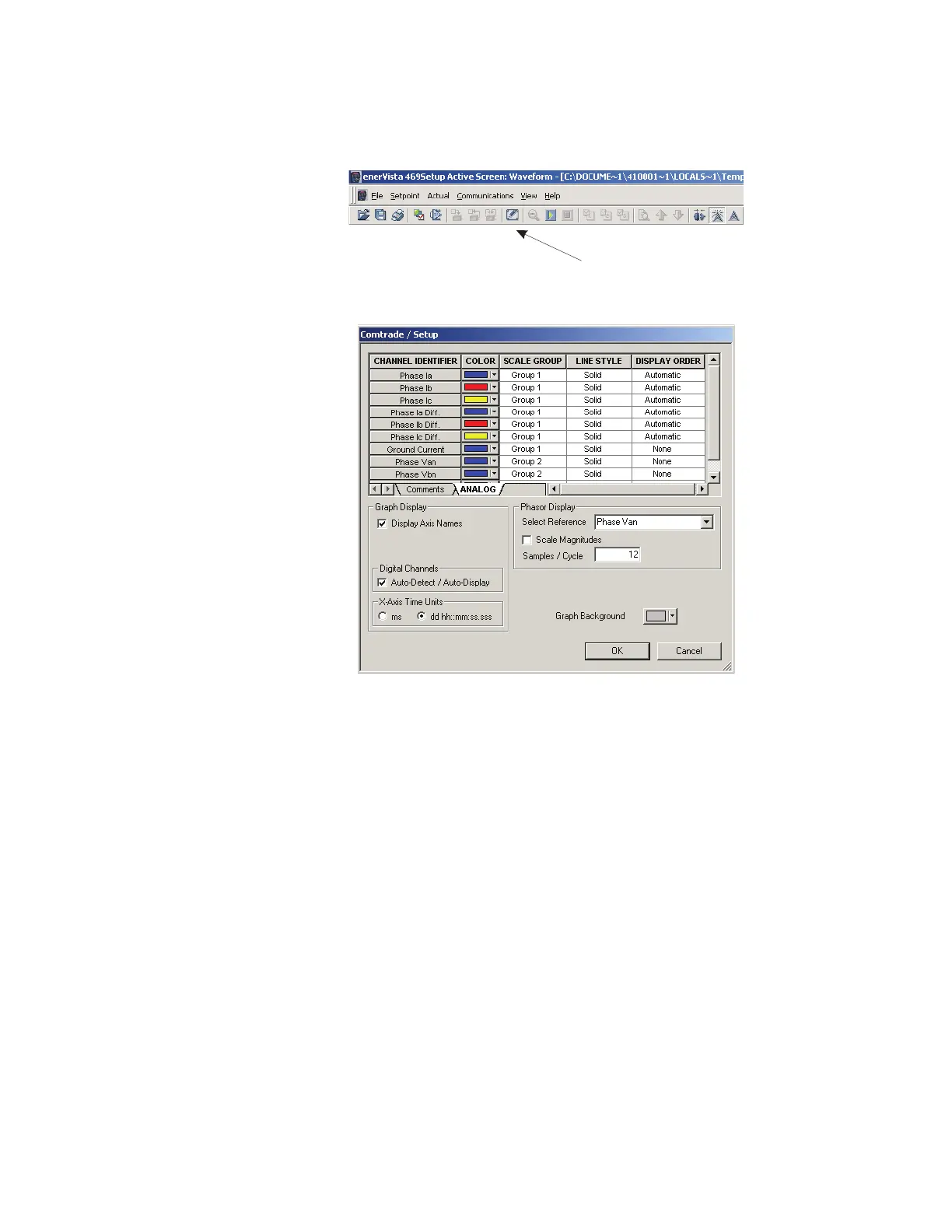

7. From the window main menu bar, press the Preference button to change the graph
attributes.
8. The following window will appear:
Change the color of each graph as desired, and select other options as required, by
checking the appropriate boxes. Click OK to store these graph attributes, and to
close the window.
9. The Waveform Capture window will reappear with the selected graph attributes
available for use.
11.3 Phasors
The EnerVista 469 Setup software can be used to view the phasor diagram of three-phase
currents and voltages. The phasors are for: phase voltages Va, Vb, and Vc; phase currents
Ia, Ib, and Ic.
1. With the EnerVista 469 Setup software running and communications established,
open the Actual Values > Metering Data window, then click on the Phasors tab.
