20 469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE
8 Working with setpoints
8.1 Engaging a device
The EnerVista 469 Setup software may be used in on-line mode (relay connected) to
directly communicate with a 469 relay. Communicating relays are organized and grouped
by communication interfaces and into sites. Sites may contain any number of relays
selected from the SR or UR product series.
8.2 Entering setpoints

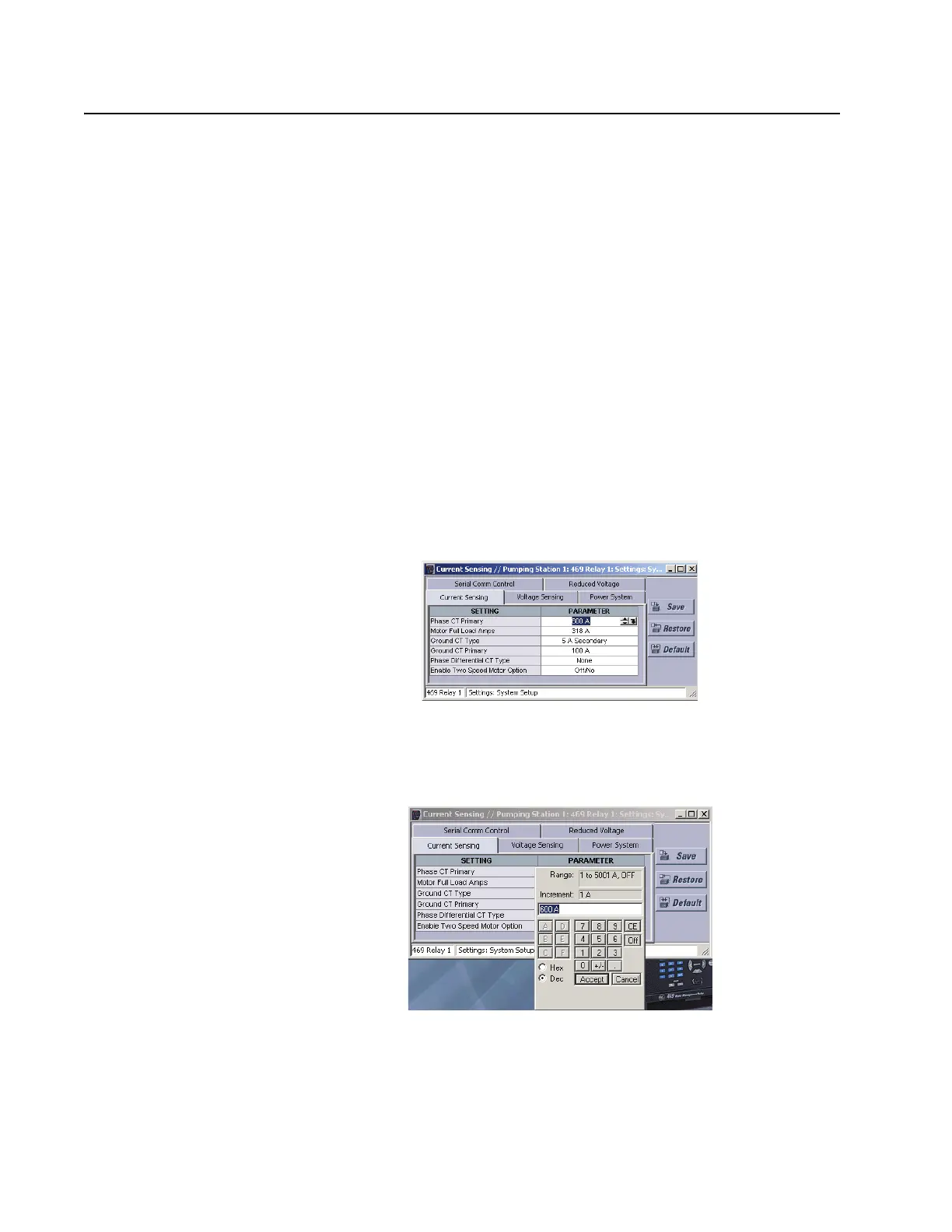

The system setup page used as an example to illustrate the entering of setpoints. In this
example, we will be changing the current sensing setpoints.
1. Establish communications with the relay.
2. Select the Setpoint > System Setup menu item. This can be selected from the device
setpoint tree or the main window menu bar.
3. Select the
PHASE CT PRIMARY setpoint by clicking anywhere in the parameter box. This
will display three arrows: up and down arrows to increment/decrement the value and
another to launch the numerical calculator.
4. Clicking the arrow at the end of the box displays a numerical keypad interface that
allows the user to enter a value within the setpoint range displayed near the top of the
keypad:
5. Click Accept to exit from the keypad and keep the new value. Click on Cancel to exit
form the keypad and retain the old value.
