469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE 21

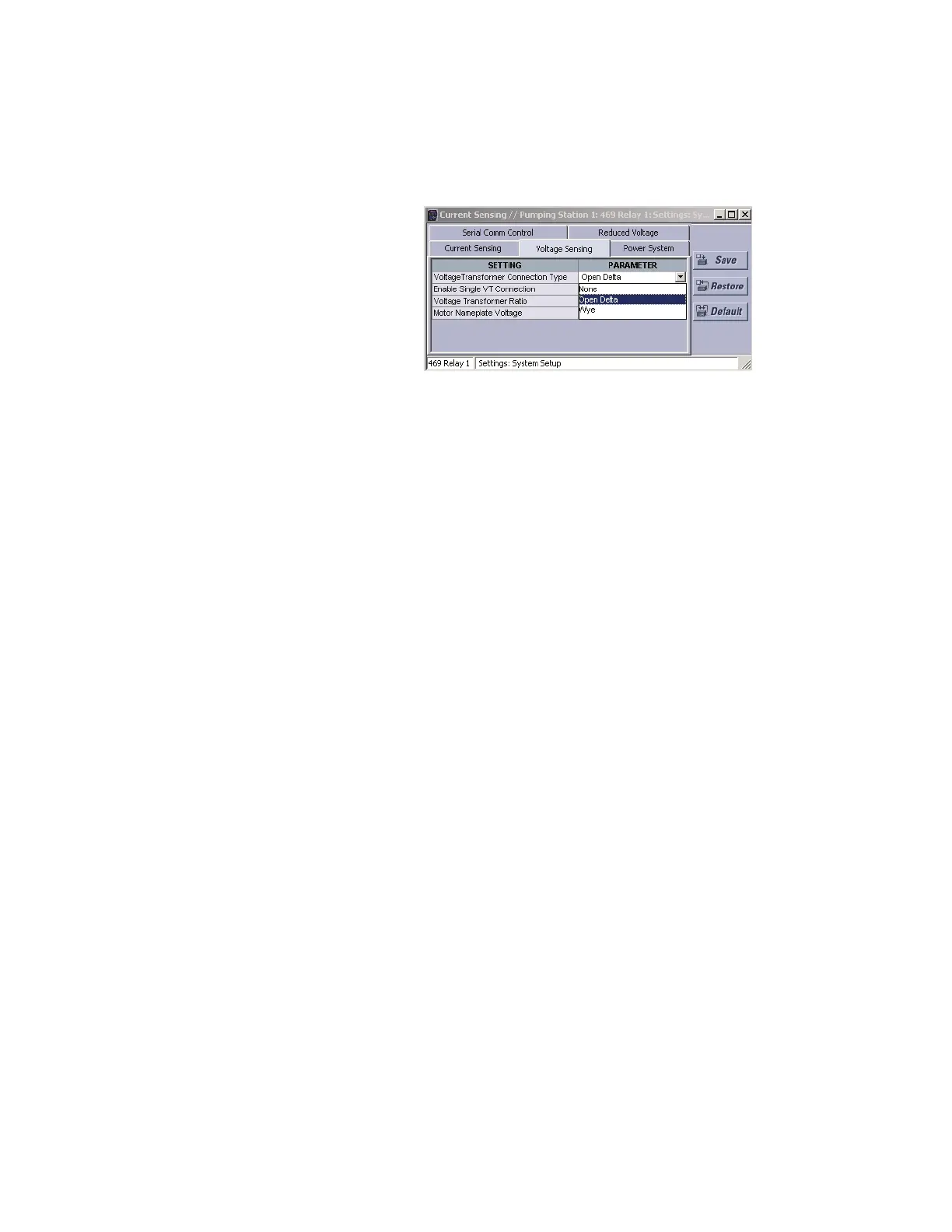

6. For setpoints requiring non-numerical pre-set values (e.g. VT CONNECTION TYPE
above, in the Voltage Sensing Tab), clicking anywhere within the setpoint value box
displays a drop down selection menu arrow. Click on the arrow to select the desired
setpoint.
7. For setpoints requiring an alphanumeric text string (e.g. message scratchpad
messages), the value may be entered directly within the setpoint value box.
8. Click on Save in the system setup dialog box to save the values into the 469. Click Yes
to accept any changes. Click No, and then Restore, to retain previous values.
