GE Multilin 469

34 469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE
QUICK REFERENCE GUIDE

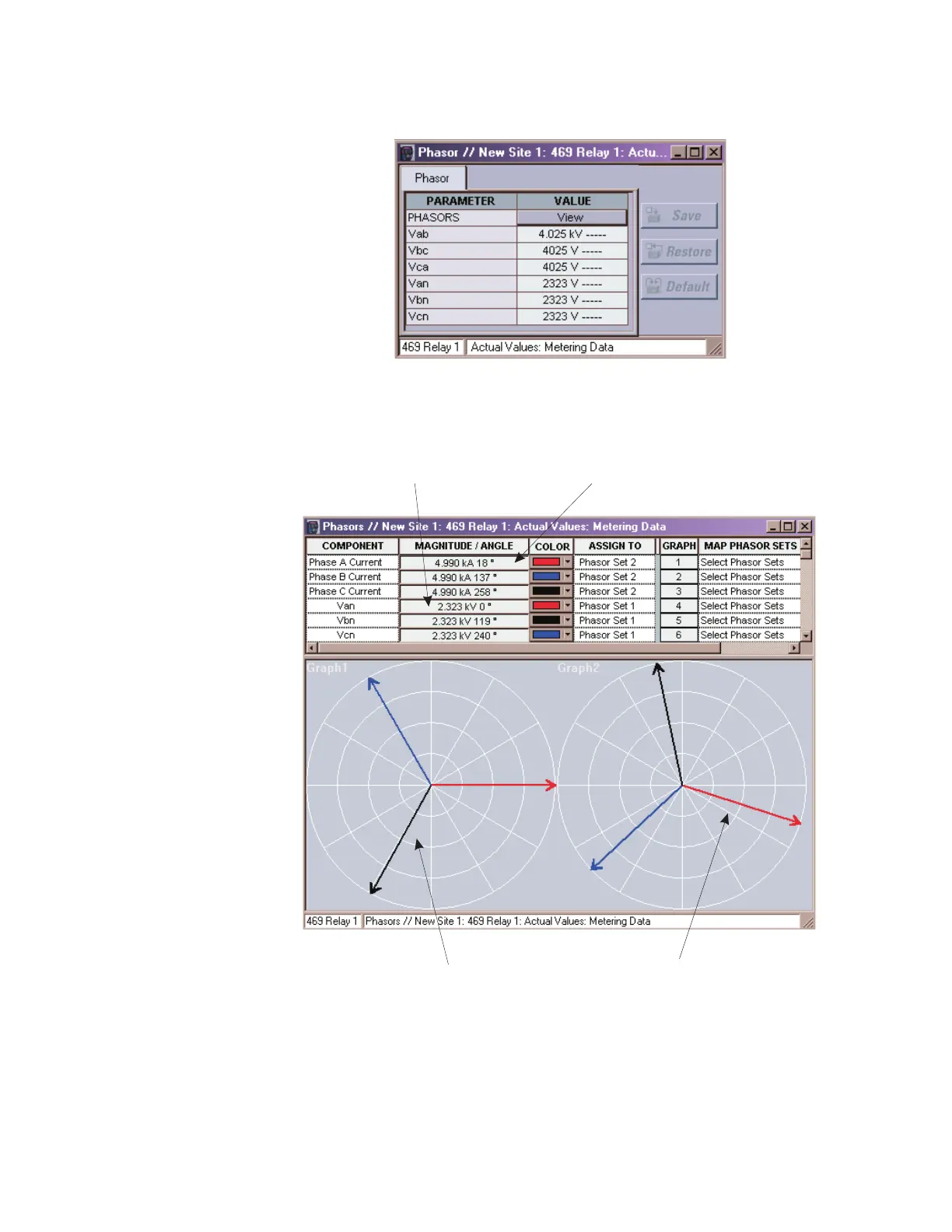

2. The EnerVista 469 Setup software will display the following window:
3. Press the “View” button to display the following window:
4. The 469 Motor Management Relay was designed to display lagging angles. Therefore,
if a system condition would cause the current to lead the voltage by 45°, the 469 relay
will display such angle as 315° Lag instead of 45° Lead.
VOLTAGE VECTORS
Assigned to Phasor
Set 1, Graph 1
CURRENT VECTORS
Assigned to Phasor
Set 2, Graph 2
CURRENT LEVEL
Displays the value
and angle of the
current phasor
VOLTAGE LEVEL
Displays the value
and the angle of
the voltage phasors
