QUICK REFERENCE GUIDE
469 MOTOR MANAGEMENT RELAY – QUICK REFERENCE GUIDE 41
To view a separate window for each group of actual values, select the desired item from
the tree, and double click with the left mouse button. Each group will be opened on a
separate tab. The windows can be re-arranged to maximize data viewing as shown in the
following figure (showing actual current, voltage, and motor status values tiled in the same
window):

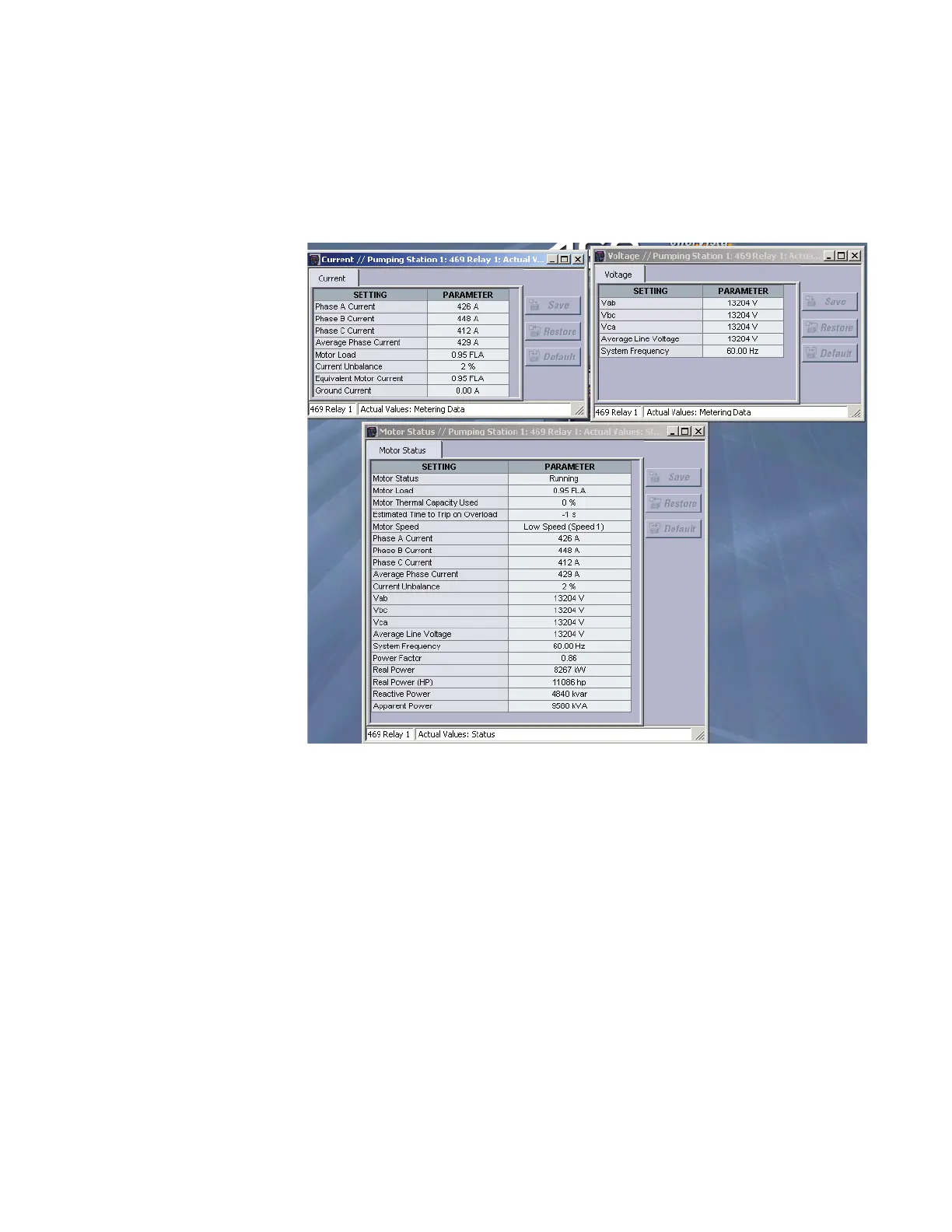

FIGURE 18: Actual Values Display
