Installing the NX-590E TCP/IP module

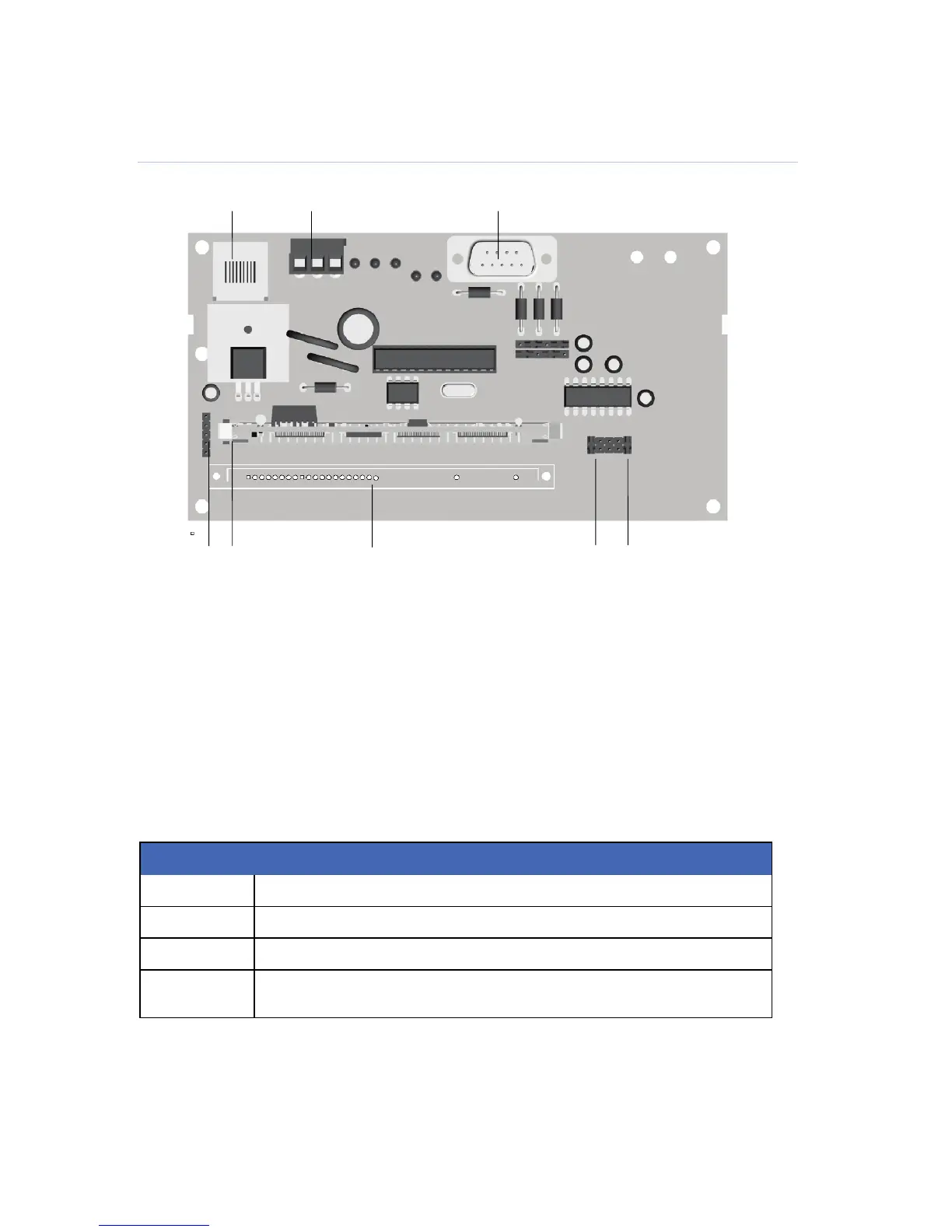

Figure 17. NX-590E TP/IP module
1
SIM pin 1
5
RS232
2
Modem pin 2
6
Connect to NX-10 panel
3
Processor to RS232 setting: position 9 &10
7
10BT ethernet
4
Processor to RS232 setting: position 3 & 4
8
Audio tap
Wiring the NX-590EE TCP/IP module
Table 15. NX-590E TCP/IP module terminal connections
Terminal Description
+ Connect to the panel bus POS terminal.
COM Connect to the panel bus COM terminal.
DATA Connect to the panel bus DATA terminal.
J16 Connect the Ethernet Jack J16 (10BT) to a 10BT Ethernet capable hub, router or gateway.
Do not use a CASCADE or X port in crossover mode.
2 3
4
1
56
7
8
