9. Connect the NetworX bus cables from the NX-534 to the panel. You can use standard
NetworX bus contacts or bus connectors.
10. Plug-in the 5-pin audio cable connector to the audio tap on the panel.
11. Attach the pillars for the NX-535 voice module to the board.
12. Attach the NX-535 voice module to the board via the pillars.
13. Connect the NX-534E listen-in module and NX-535 voice module with the dual audio
cable.
14. Connect the NetworX bus cables from the NX-535 voice module to the panel.
15. Flip down the PCB mounting tray.

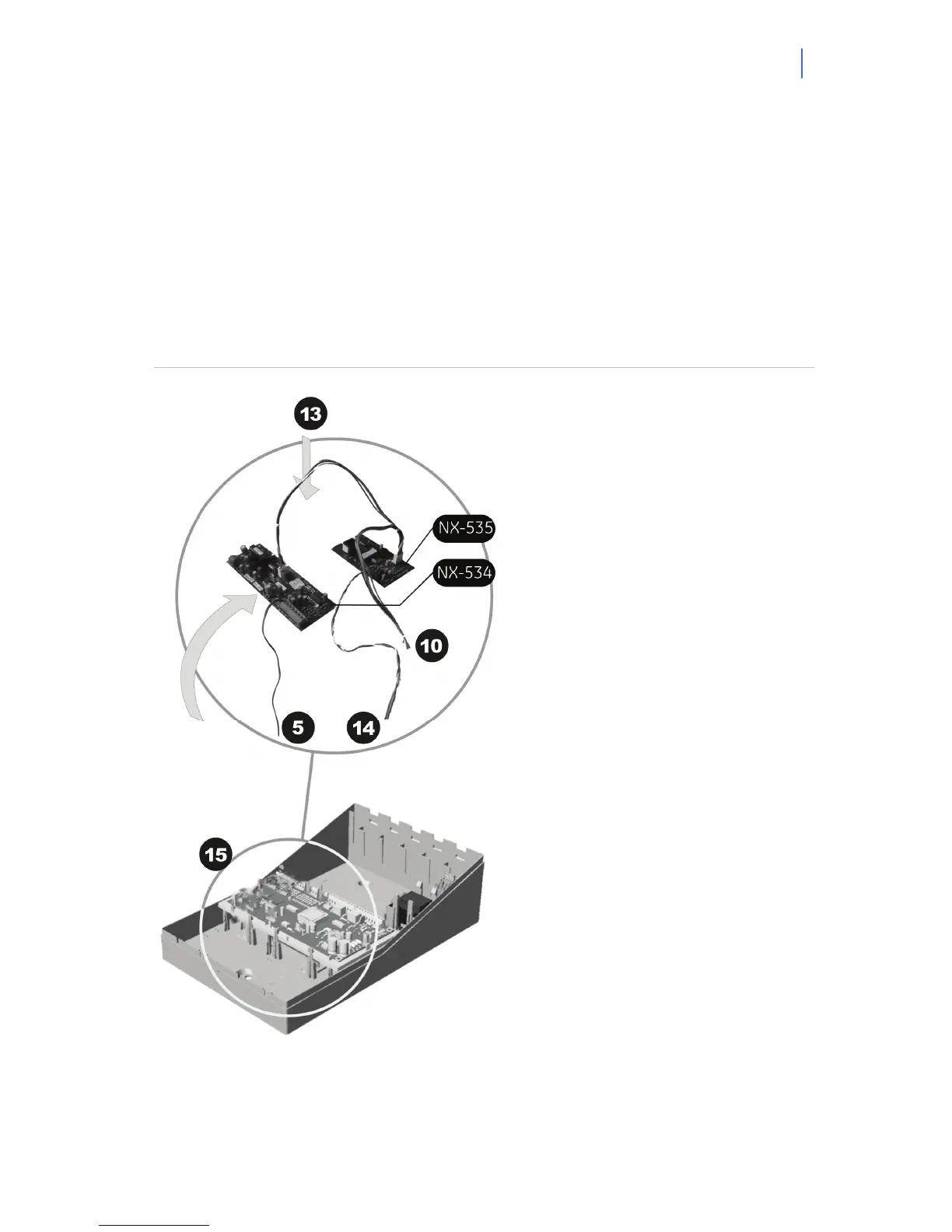

Figure 20. Attaching the NX-534E and NX-535 to the panel.
