PACE Pressure Controller User Manual
[EN] English 2 - 11 K0443 Revision A
Communication Connections (Ref: Fig 2-8 Communication Connectors)
Connect the applicable connectors into the rear panel communications ports and, if
appropriate, secure with the captive screws.
Note: Refer to the data sheet for a list of optional communication ports.
Refer to the data sheet for a list of standard shipped communication ports.
Set the required parameters in Supervisor Setup/communications menu, (Ref: Section 3.8,
Supervisor set-up).

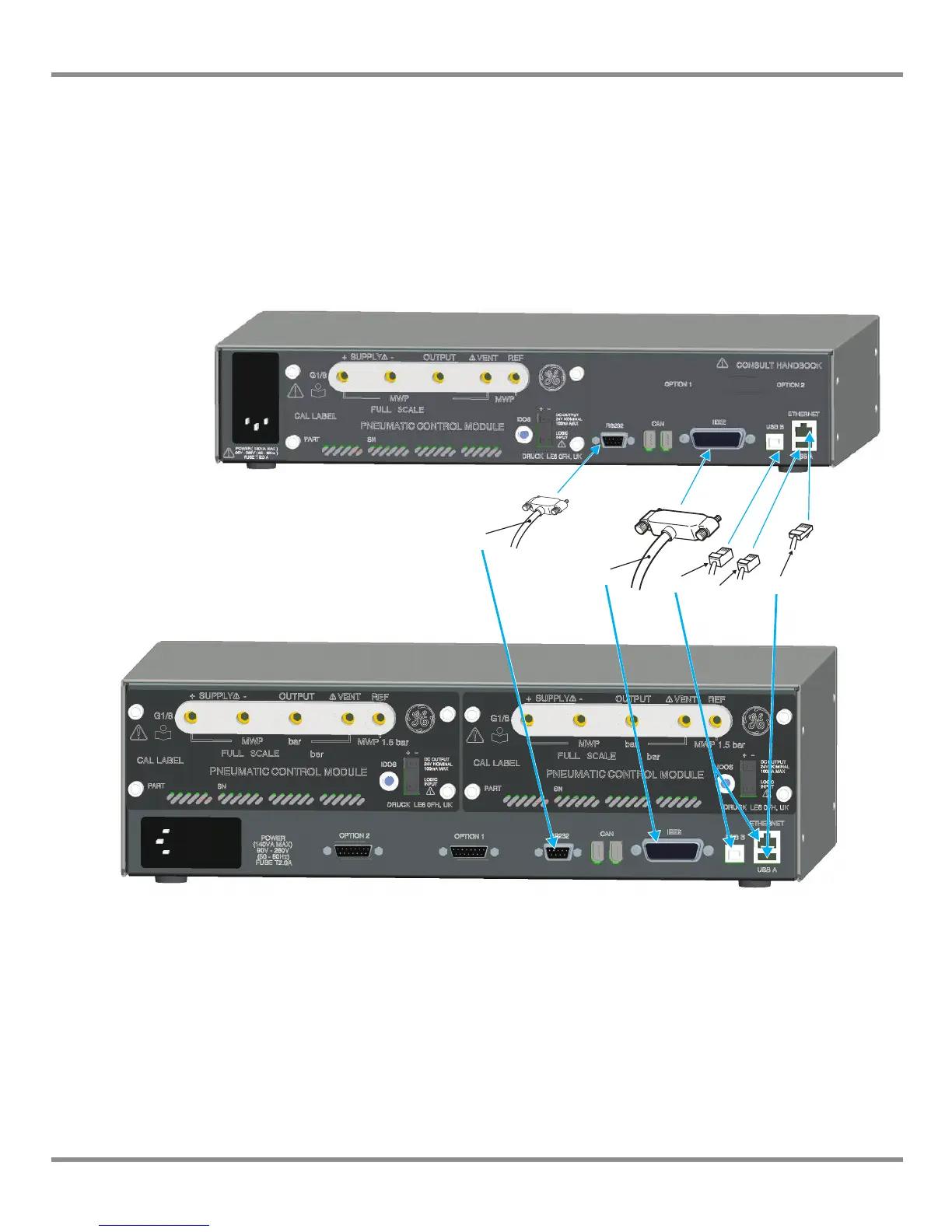

Figure 2-8, Communication Connectors
1 RS232 3 IEEE488 4 USB B
5 USB A 6 Ethernet
