4.9 Pressure module replacement (Ref: Figure 4-3, Pressure module)
WARNING
TURN OFF THE SOURCE PRESSURE AND VENT THE PRESSURE LINES BEFORE
DISCONNECTING OR CONNECTING THE PRESSURE LINES. PROCEED WITH CARE.

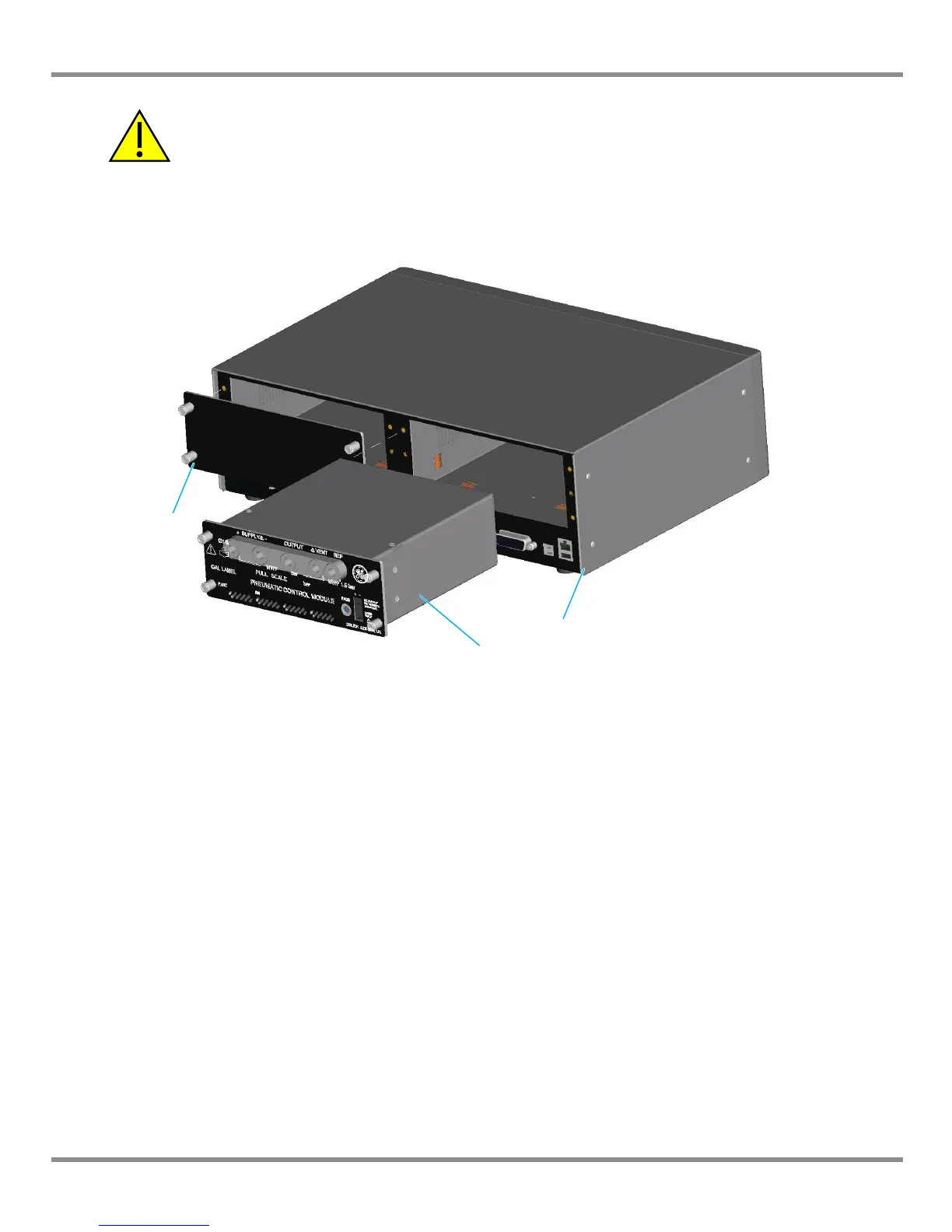

Figure 4-3 Pressure module
Remove
1. (Ref: Filter replacement, Remove, Section 4.8).
2. Fit the blanking plate (supplied) to protect the internal components.
Replace
1. Fit a fully compatible pressure module (1) into the instrument case (2).
2. (Ref: Installation, Section 2).
1 - Pressure module 2 - Instrument case 3 - Blanking plate
2
1
3
