3 Operation
K0443 Revision A 3 - 2 [EN] English
3.2 Power-up sequence

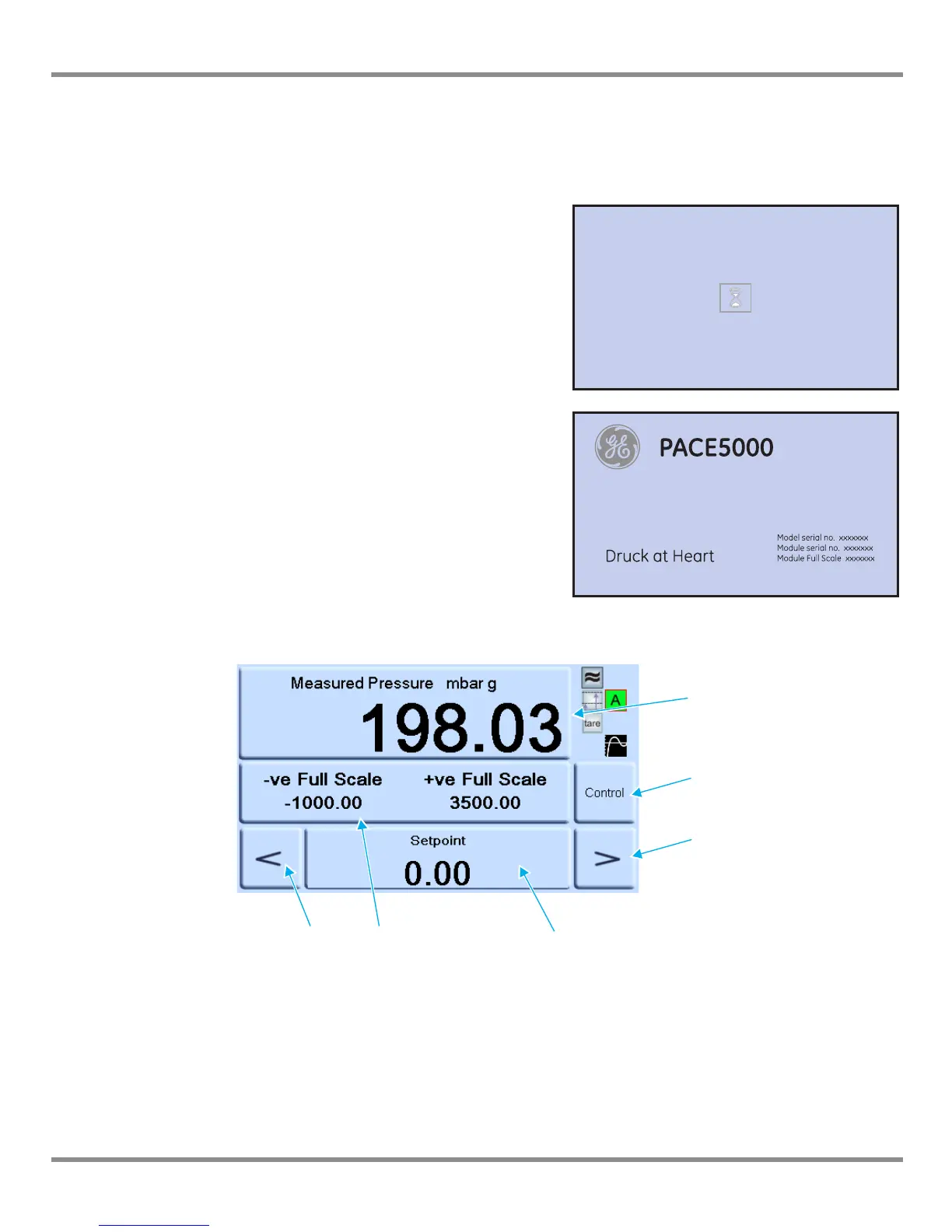

The following sequences of operation shows the instrument display.
Note: The following sequence is an example, the values and selections displayed depend on
the range(s) and options enabled in the instrument (Ref: Touch screen areas).
1. Set the power supply to ON:
2. The display shows the power-up sequence.
3. The instrument carries out a self-test.
If the test finds a fault, the display shows an
error (Ref: Fault Finding and Testing, Section
5).
4. If the self-test is successful the system
enables the touch screen and changes to
measure mode.
5. The touch screen shows the measured
pressure in the parameters selected in set-up.
6. The instrument is now ready for use.
Note: The PACE 6000 shows a single display
(default) this is the left hand pressure control
module. Change to dual display in Global Set-
up/Display.
Touch screen areas
1
Measure set-up
2
Control/Measure
3
Nudge up
4
Set-point entry
5
Status (touch to enter control set-up
6
Nudge down
To Next Page
