Chapter 10. OPC UA Server
186 PACSystems* RX7i & RX3i TCP/IP Ethernet Communications User Manual GFK-2224Q
From the client side, we can establish a connection by placing the above information into the connection string
(see screenshot below using an OPC UA Client).

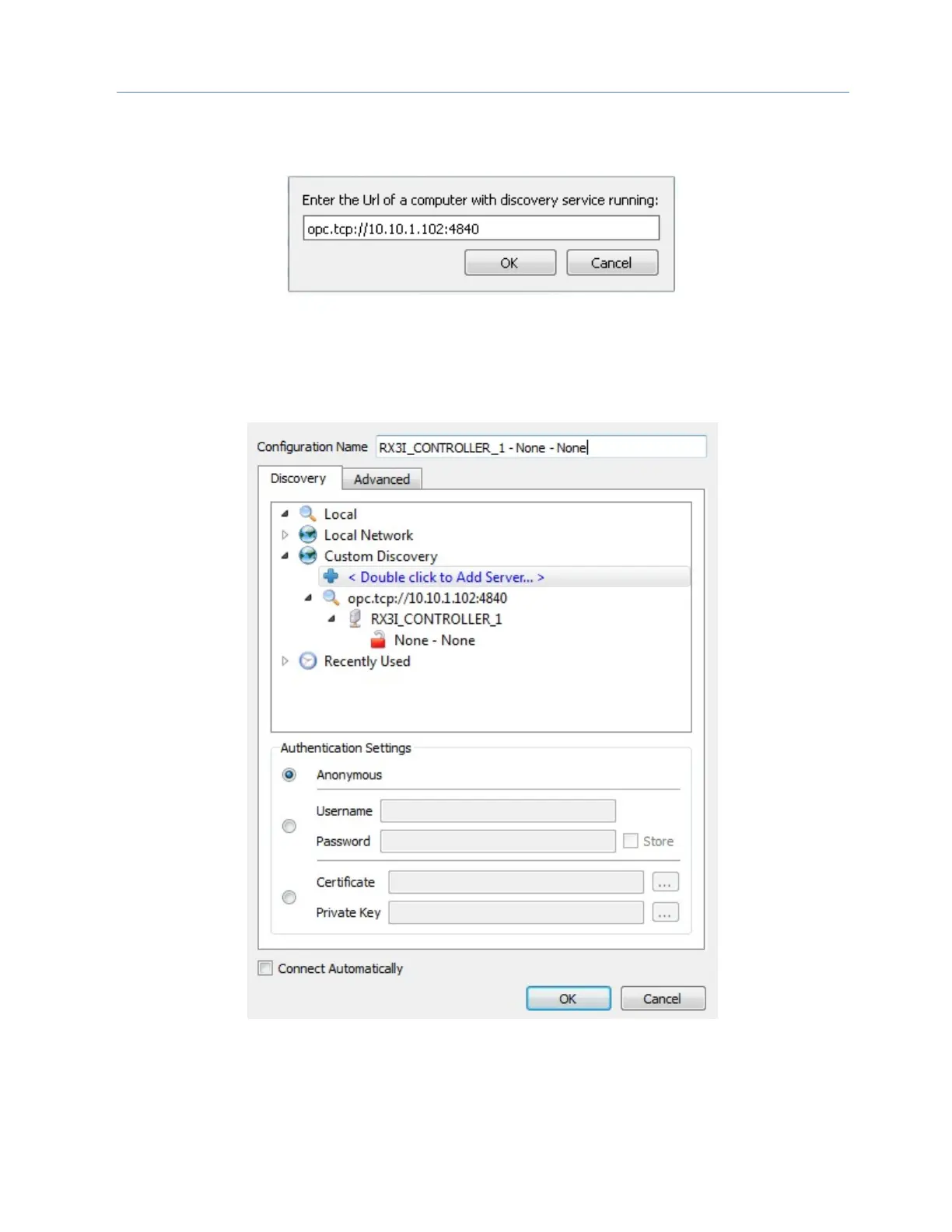

Figure 69: OPC UA Server Client Connection String
We can then connect to the OPC UA server.
Note: The Client can see the Controller Target Name when connecting to the server.
The Controller Target Name is set within Machine Edition and is displayed in the screenshot above. A sample
client connection can be seen below.
Figure 70: OPC UA Client Connection Dialog
Note: The RXi’s OPC UA server supports 5 clients. If 5 clients are connected, additional
connection requests will be rejected by the OPC UA server.
