GE SCB2000 - Remove Lower Blower Motor Assembly; Remove Turntable Motor; Remove Lower Halogen Lamp

– 38 –

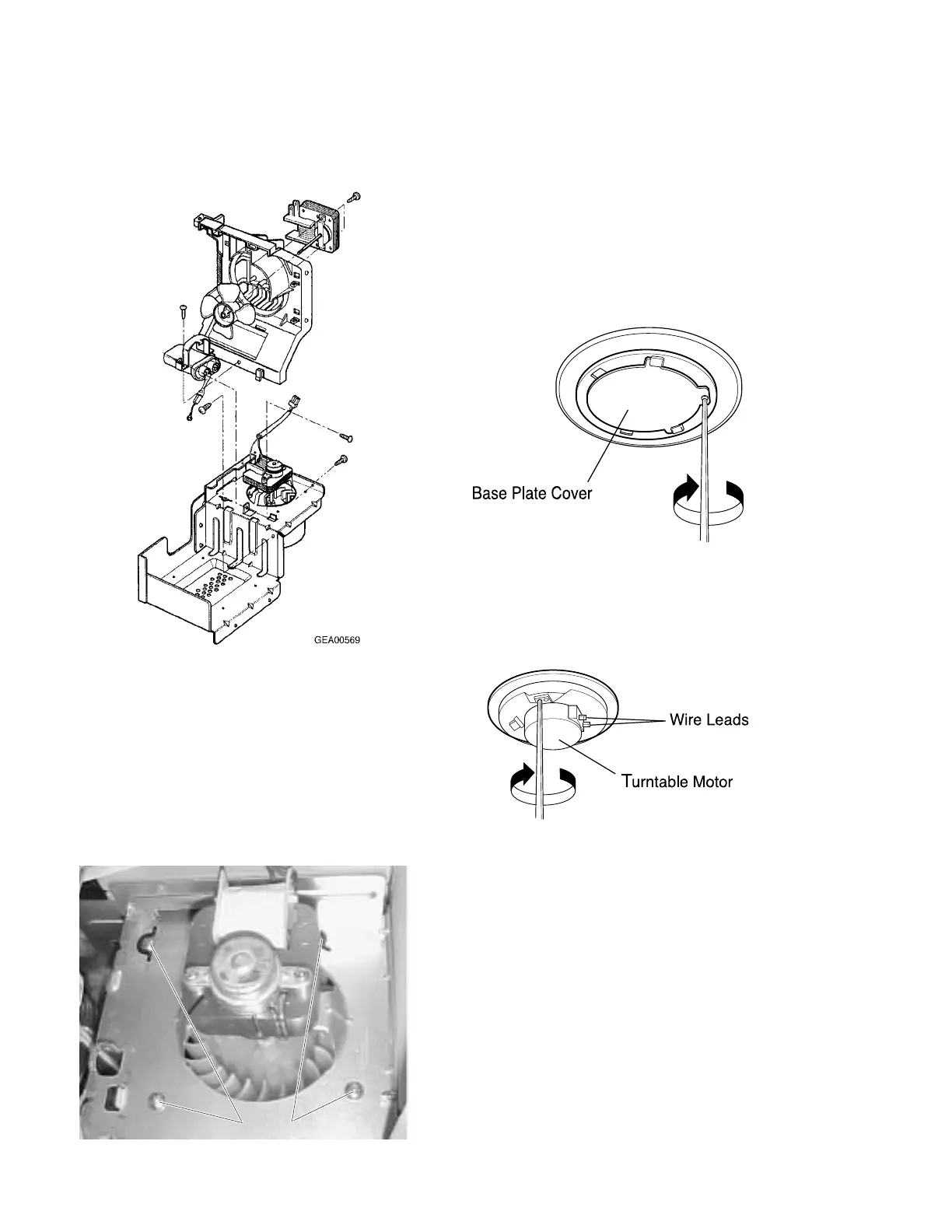

Remove Lower Blower Motor Assembly
Note: The magnetron fan motor, HV capacitor,
and diode must be removed before you can
access the lower blower motor assembly.
1. Remove the top and right access covers (see
page 28).
2. Remove 4 screws securing the magnetron
blower to the oven chassis (see page 37).
3. Remove 4 screws securing the lower blower
motor in place.
GEA00580
ScrewsScrews
4. Disconnect all associated connector plugs.
5. Lift fan motor assembly upward while
removing the lower blower motor assembly
from the chassis.
Remove Turntable Motor
1. Remove the turntable.
2. On the bottom access cover, remove 1 screw
from the base plate cover. Remove the cover
by rotating it counterclockwise.
GEA00370
3. Disconnect motor leads.
4. Remove 2 screws securing the turntable motor
to the oven cavity assembly.
GEA00347
Remove Lower Halogen Lamp
1. Remove the turntable.
2. Remove 3 screws from the lower right access
panel, and 1 screw from the lower corner of
the rear access panel.
3. Remove the left and bottom access covers
(see page 29).
4. Disconnect wiring to the lower halogen lamp
(white connector).
