GE SCB2000 Technical Service Guide

– 33 –

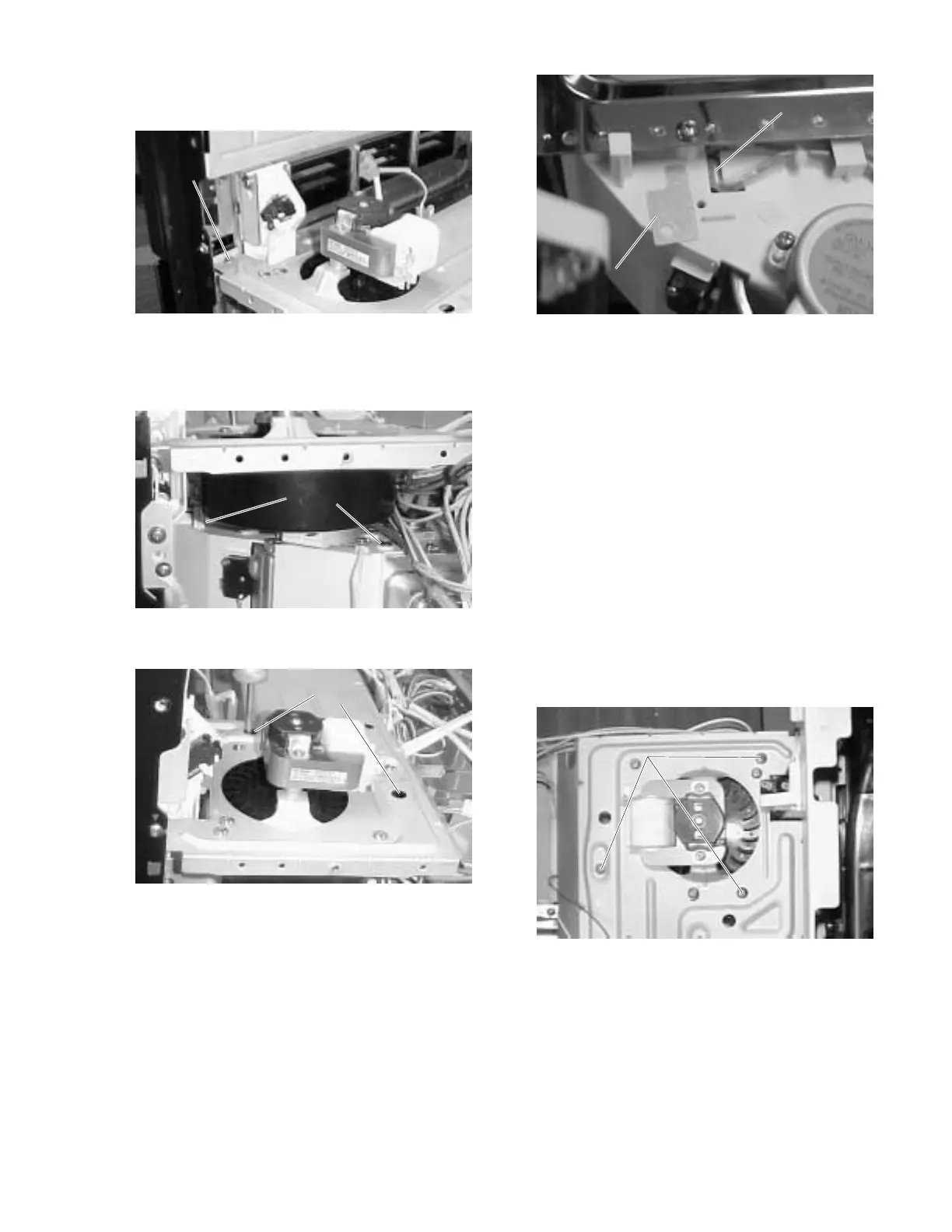

2. Remove 1 screw for more flexibility when
accessing the damper door assembly and
oven cavity thermistor.
GEA00576
ScrewScrew
3. Remove 2 screws via the damper screw
access holes.
GEA00575
ScrewsScrews
GEA00574
Damper Screw
Access Ports
Damper Screw
Access Ports
4. To change the thermal fuse, remove 1 screw
from the thermal fuse cover plate.
GEA00469
Thermal Fuse
Thermal Fuse
Cover Plate
Thermal Fuse
Thermal Fuse
Cover Plate
5. Move the fan motor assembly out of the way.
6. Remove 2 screws securing the damper door
assembly.
7. Remove the assembly.
Remove Upper Blower Motor Assembly
1. Remove the top and right access covers (see
page 28).
2. Remove the damper door assembly (see
previous procedure).
3. When the damper housing is removed,
remove 3 screws by the upper blower motor.
GEA00463
Screws
Screws
4. Remove the motor.
Remove Oven Cavity Thermistor
1. Remove the top and right access covers (see
page 28).
2. Remove the damper door assembly (see page
32), HV capacitor and diode (see page 36),
magnetron fan motor assembly (see page 36),
and magnetron (see page 37).
