Serviceability With Oven Installed
The following component can be accessed from
the front of the oven with the unit installed:
• Oven door
Remove Oven Door
WARNING: A microwave leakage test must be
performed anytime a door is removed, replaced,
disassembled, or adjusted for any reason. The
maximum leakage is 4 MW/CM
2
(refer to
“Microwave Leakage Test” on page 44).
1. Disconnect power by turning off the circuit
breaker.
2. Open the door and remove any ceramic or
metal trays or grills from the oven.
Caution: Put electrician’s tape on each side of the
hinges prior to performing the next step. This will
protect the door panel from scratches.
3. Insert a 1.0-in.-long pin (0.098-in. diameter)
into the hole of each hinge.
4. Close the door approximately one-third of the
way.
5. Lift up on the door to remove it from the oven.
GEA00345

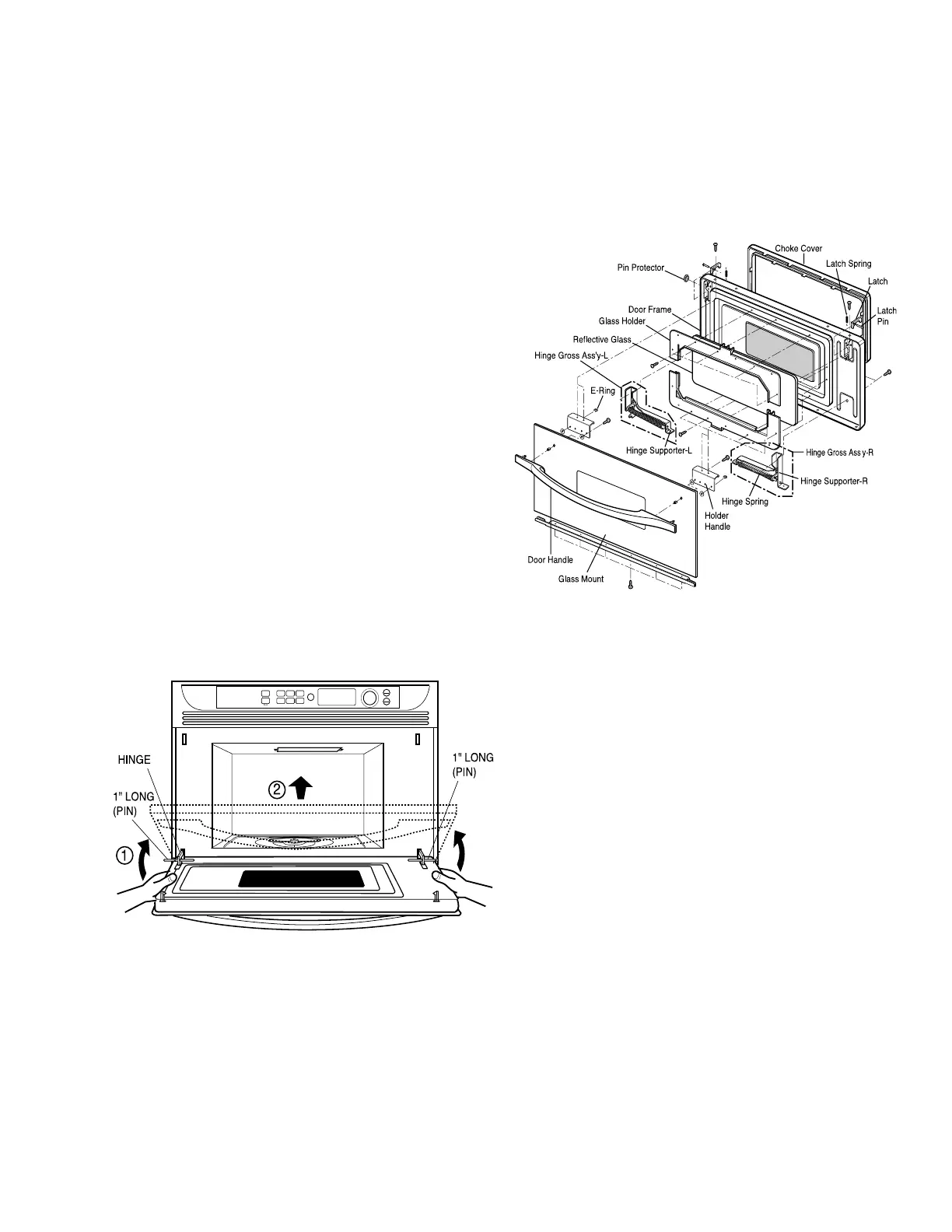

Disassemble Oven Door
1. Remove the door from the oven (see previous
procedure).
2. Remove 4 screws from the upper side of the
door frame. This will separate the door glass.
3. To remove the door handle, remove 2 screws
and 2 E-rings from the holder handle.
4. To remove the glass mount, remove 6 screws
from the bottom of the door frame.
5. To remove hinge assemblies, remove 6 screws
from the door frame.
GEA00352
Serviceability With Oven Removed
WARNING: Before proceeding, remove all power
to the oven by turning off the appropriate circuit
breaker.
WARNING: When reassembling the product,
remember to reattach all ground wires and put
screws in their correct locations.
The oven must be removed from the
installation to allow servicing of internal
components.
Remove Oven From Cabinet or
Wall Opening
WARNING: This oven requires 2 people for the
removal process. Grasp the bottom of the oven at
the front and rear on each side.
Caution: Do not use the oven handle to lift or
lower the oven. Damage will occur!
• Be careful that the conduit is not caught or
stressed during removal.
To Next Page
