GE SCB2000 Technical Service Guide

– 48 –
GEA00343
T.C.O.
Lower
Halogen
T.C.O.
Magnetron
T.C.O.
Oven
Cavity
T.C.O.
Upper Rear
Halogen
T.C.O.
Upper Front
Halogen
Door Closed
Door Open
Tab
GEA00540

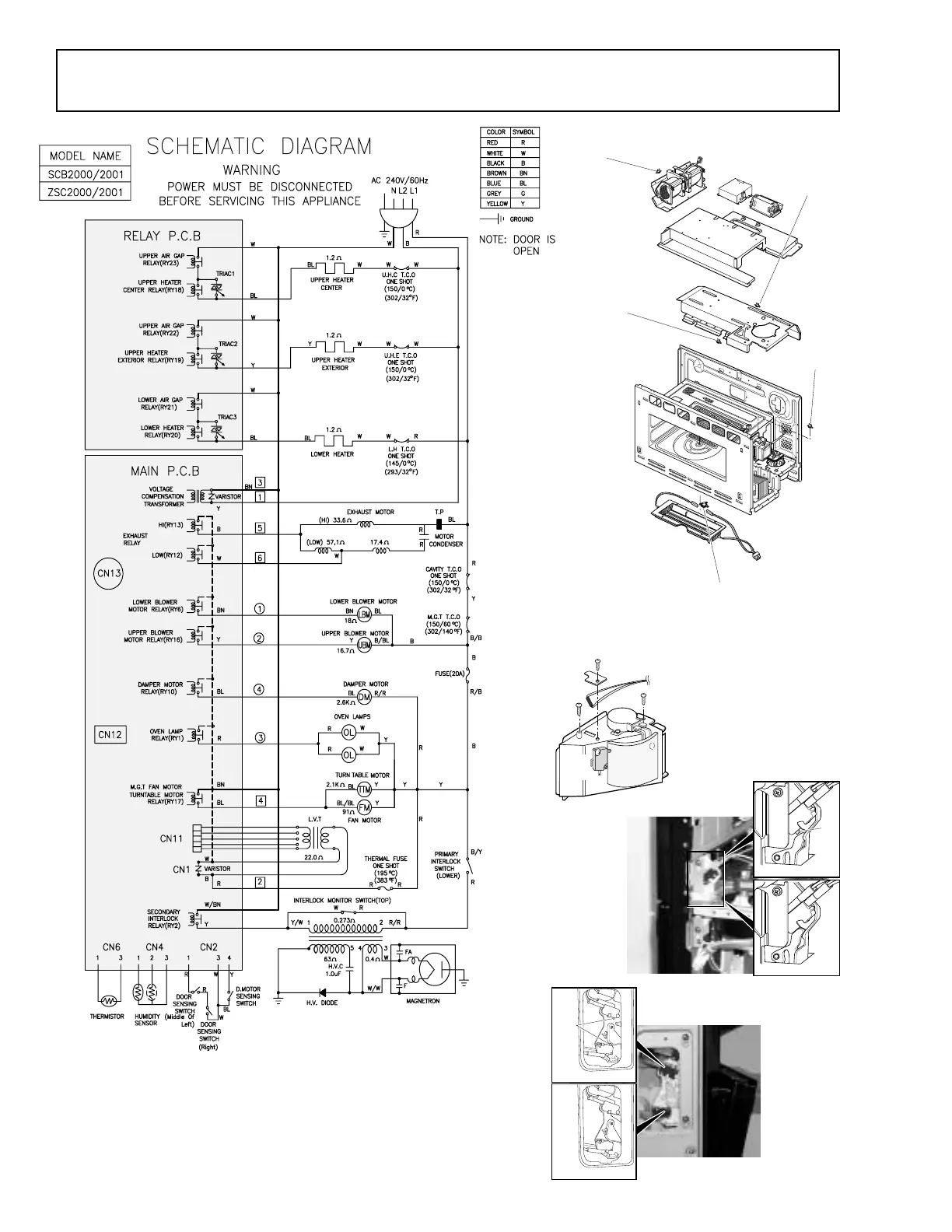

Schematics and Wiring Diagrams
T.C.O. LOCATIONS
SWITCH LOCATIONS
Left Latch
Assembly
Right Latch
Assembly
GEA00430
THERMAL
FUSE
DOOR
SENSING
SWITCH
DAMPER
MOTOR
All T.C.O.s are non-resettable (“one shot”) except
for the magnetron T.C.O., which will reset at 140°F
(60°C).
Door Closed
Door Open
Tabs
GEA00541
