GE SCB2000 Technical Service Guide

– 37 –

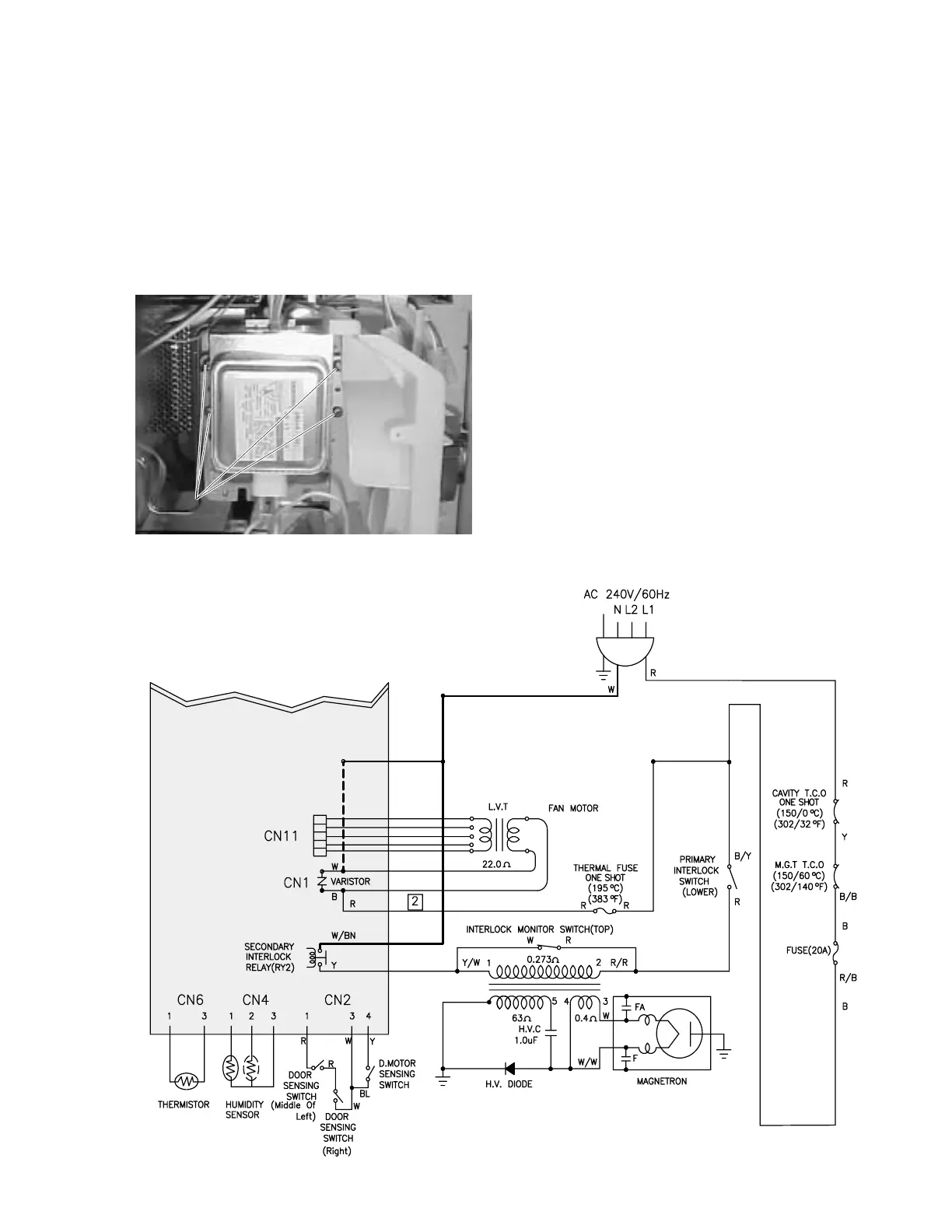

Remove Magnetron Assembly
1. With the top and right access covers removed,
remove the HV capacitor, diode, magnetron
fan (see page 36); and the damper housing
(see page 32).
2. Disconnect all associated connector plugs.
3. Remove 4 screws securing the magnetron
assembly to the oven chassis and remove the
magnetron assembly.
GEA00577
ScrewsScrews
4. Remove the magnetron thermal cut-out
(T.C.O.).
Remove High-Voltage Transformer
1. Disconnect 6 wiring connector plugs.
2. Remove 4 screws that secure the high-voltage
transformer to the lower blower motor
assembly.
3. Remove the high-voltage transformer.
GEA00522
