– 39 –
GEA00350
5. Remove 2 screws from the lower edge of the
inside left panel.
6. Remove 1 screw from the small right barrier
and remove the barrier.
7. Remove 1 screw from the large right barrier,
straighten the mounting tabs, and remove the
barrier.

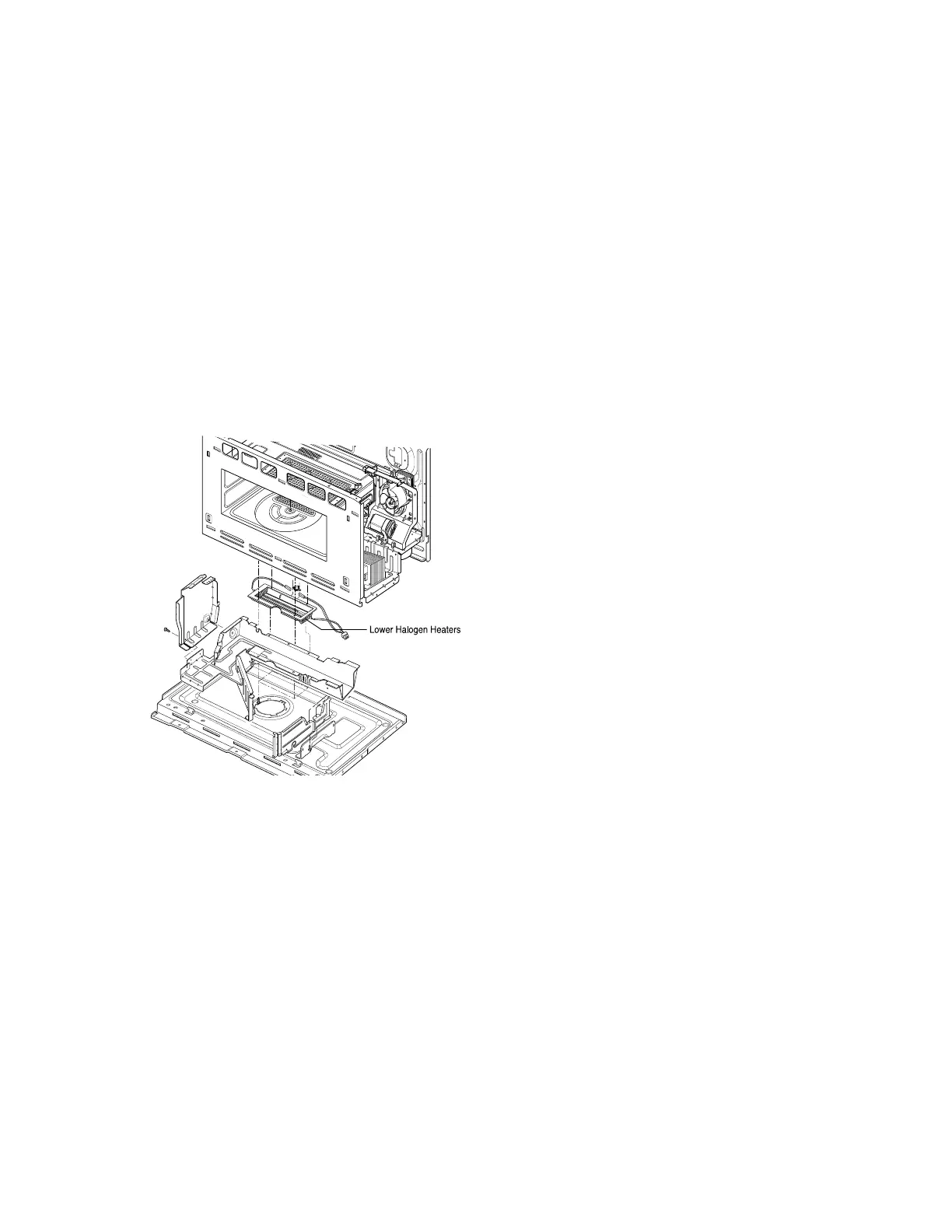

8. Remove 4 screws from the lower air tunnel
assembly.
9. Lower the air tunnel and ease it out from
under the inside left panel.
10. Disconnect the leads to the lower halogen
lamp T.C.O.
11. Remove the halogen lamp.
To Next Page
