Full line seizure wiring with one premises phone
If a single phone is all that exists on the premises, full line seizure can be
accomplished without an RJ31X.
1. Disconnect the phone from the premises phone jack and plug it into the panel
PHONE jack. This jack is disconnected automatically whenever the panel reports.
2. Connect the included phone cord to the panel LINE jack and the premises phone
jack.
Note: If customers add phones or other phone devices to another phone jack, full line
seizure no longer exists. Inform them to contact you if they want to add a phone or
other device so that you can rewire for full line seizure by adding an RJ31X.
Wiring the power transformer
Connect the power transformer to the two 9 VAC in terminals on the panel.

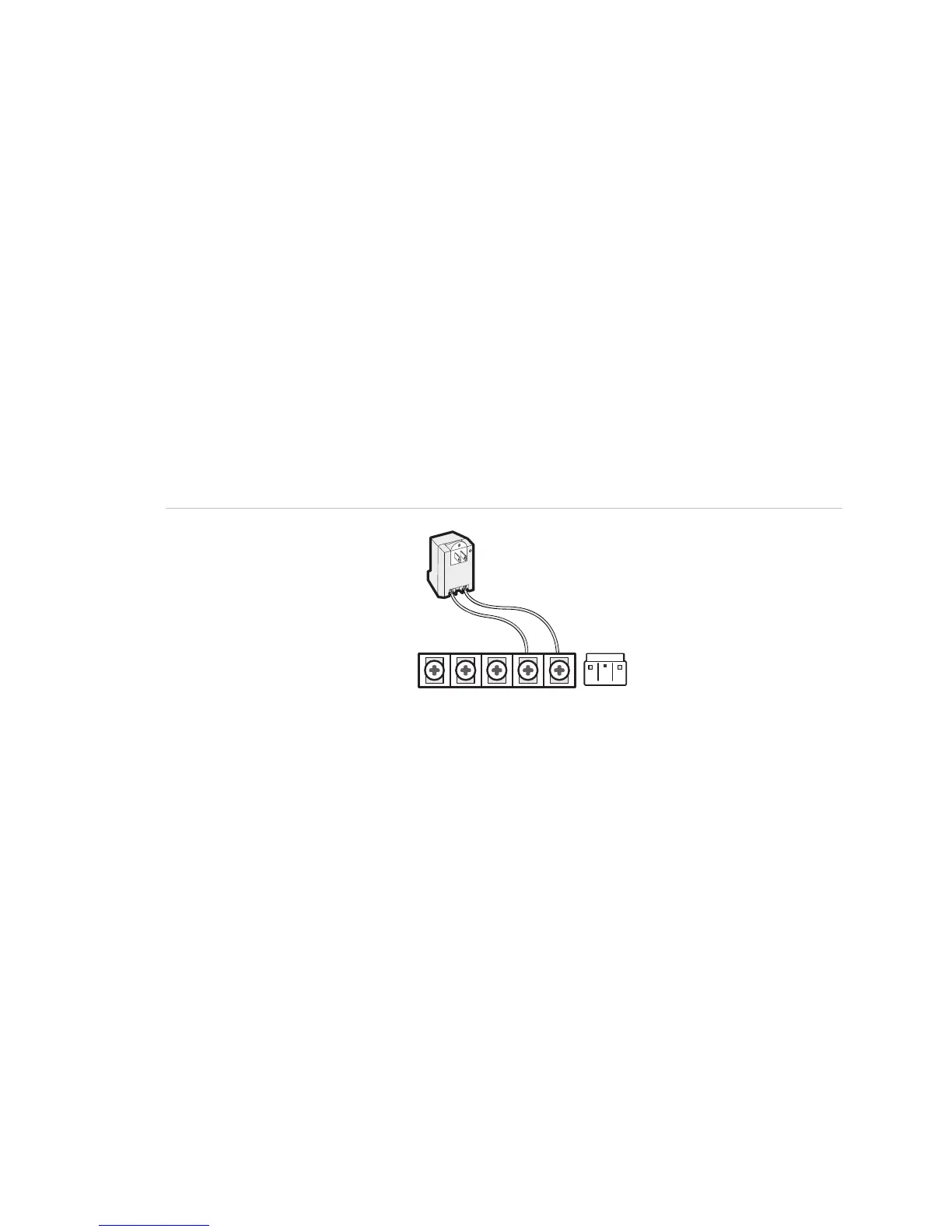

Figure 9: Transformer connections
1234
5
4 9 VAC In
5 9 VAC In
Do not plug in the transformer at this time. When applying power to the panel
connect the battery first, and then plug in the AC power transformer. This sequence
prevents a battery fault condition.
Note: Maximum battery charge current is 45 mA. It may take up to 24 hours for a
new battery to fully change.
To install the backup battery (6 VDC, 1.2 Ah):
1. Connect the lug end of the red battery lead to the red battery tab.
2. Connect the lug end of the black battery lead to the black battery tab.
3. Align the red (+) battery terminal with the right end of the terminal strip. The logo
and specification information should be readable.
4. Insert the front end of the battery under the forward battery compartment latch.
Simon XT Installation Manual 19
