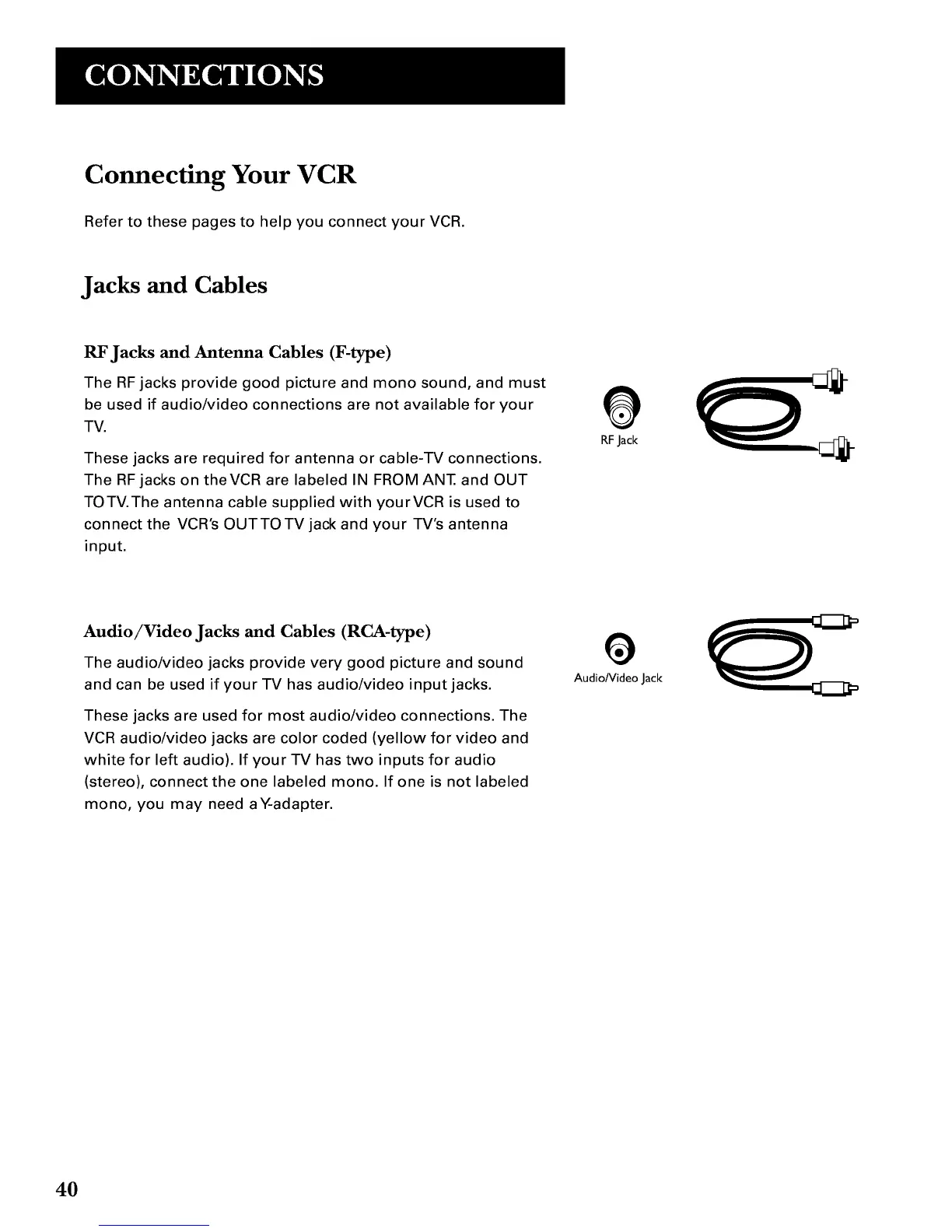

Connecting Your VCR
Refer to these pages to help you connect your VCR.
Jacks and Cables
RFJacks and Antenna Cables (F-type)
The RF jacks provide good picture and mono sound, and must
be used if audio/video connections are not available for your
TV.
These jacks are required for antenna or cable-TV connections.
The RF jacks on theVCR are labeled IN FROM ANT. and OUT
TOTV.The antenna cable supplied with yourVCR is used to
connect the VCR's OUTTOTV jack and your TV's antenna
input.
O
RFJack
Audio/Video Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and sound
and can be used if your TV has audio/video input jacks.
These jacks are used for most audio/video connections. The
VCR audio/video jacks are color coded (yellow for video and
white for left audio). If your TV has two inputs for audio
(stereo), connect the one labeled mono. If one is not labeled
mono, you may need aY-adapter.
O
AudiolVideo Jack
4O
