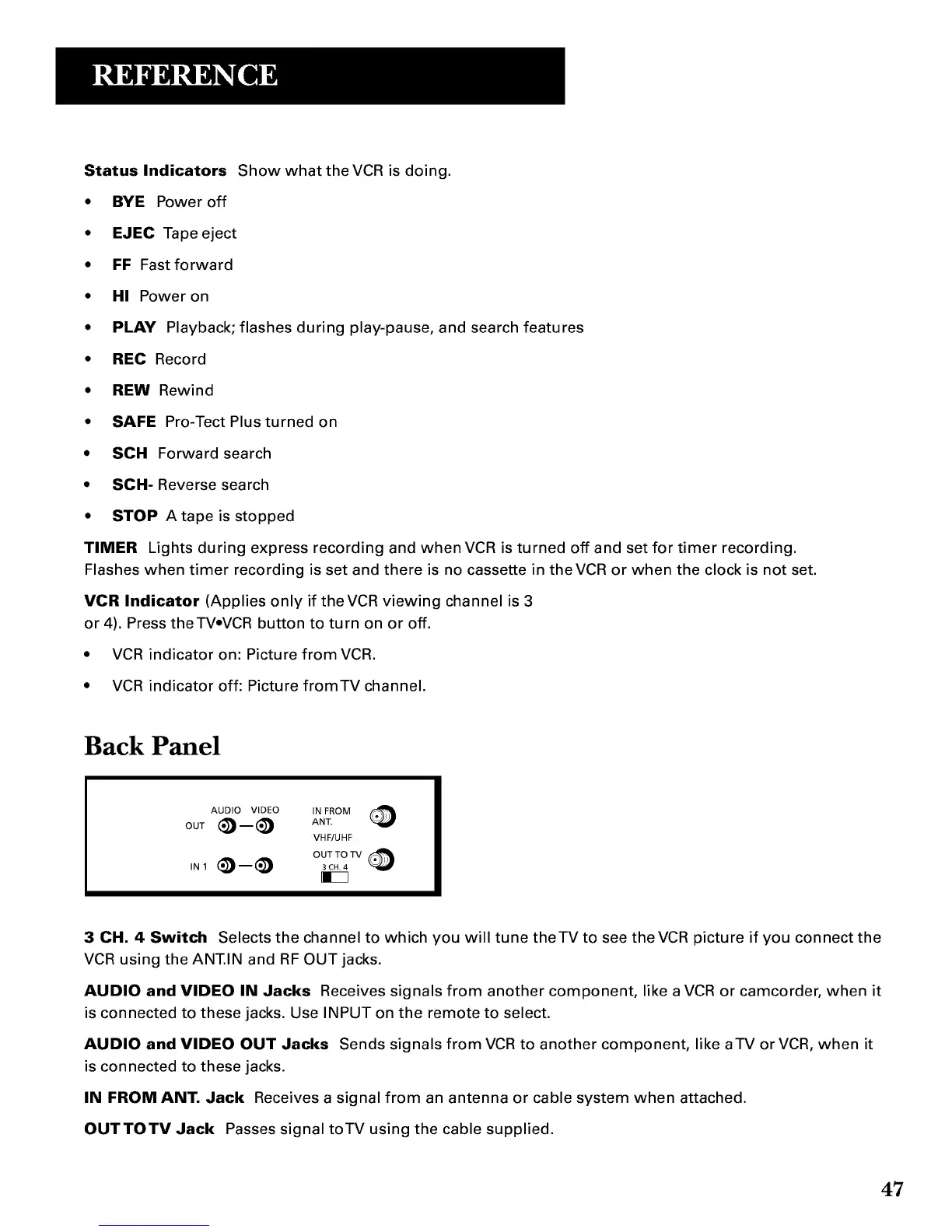

Status Indicators Show what theVCR is doing.
• BYE Power off
• EJEC Tape eject
• FF Fast forward
• HI Power on
• PLAY Playback; flashes during play-pause, and search features
• REC Record
• REW Rewind
• SAFE Pro-Tect Plus turned on
• SCH Forward search
• SCH- Reverse search
• STOP A tape is stopped
TIMER Lights during express recording and when VCR is turned off and set for timer recording.
Flashes when timer recording is set and there is no cassette in theVCR or when the clock is not set.
VCR Indicator (Applies only if theVCR viewing channel is 3
or 4). Press theTV•VCR button to turn on or off.
• VCR indicator on: Picture fromVCR.
• VCR indicator off: Picture fromTV channel.
Back Panel
Auo,owoEo ,NERoM
ooT ANT.
VHF/UHF
OUT TO TV
,N1 (_--@ 3CH,4
3 CH, 4 Switch Selects the channel to which you will tune theTV to see theVCR picture if you connect the
VCR using the ANT.IN and RF OUT jacks.
AUDIO and VIDEO IN Jacks Receives signals from another component, like a VCR or camcorder, when it
is connected to these jacks. Use INPUT on the remote to select.
AUDIO and VIDEO OUT Jacks Sends signals from VCR to another component, like aTV orVCR, when it
is connected to these jacks.
IN FROM ANT. Jack Receives a signal from an antenna or cable system when attached.
OUTTOTV Jack Passes signal toTV using the cable supplied.
47
