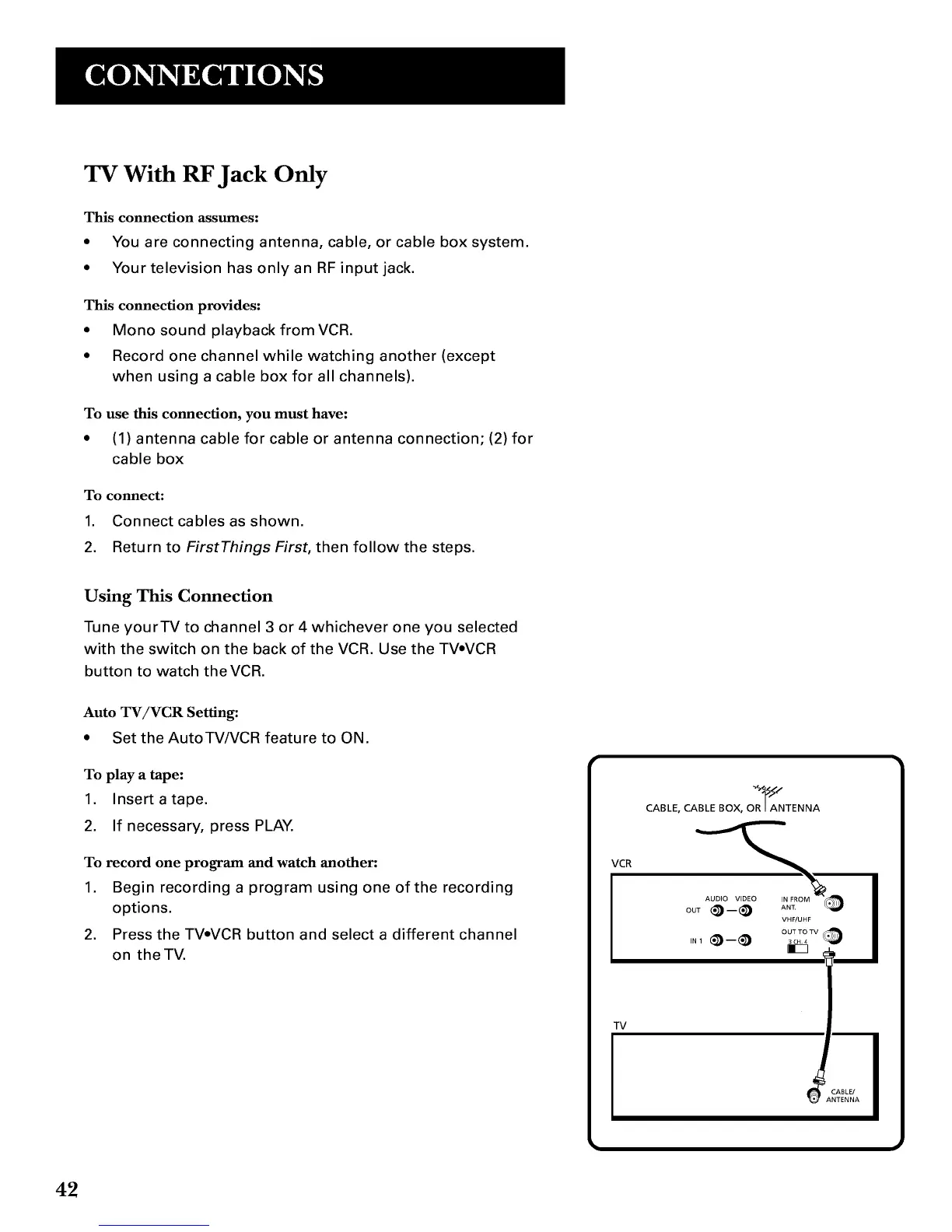

TV With RF Jack Only
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
To usethis connection, you must have:
• (1) antenna cable for cable or antenna connection; (2) for
cable box
To connect:
1. Connect cables as shown.
2. Return to First Things First, then follow the steps.
Using This Connection
Tune yourTV to channel 3 or 4 whichever one you selected
with the switch on the back of the VCR. Use the TVoVCR
button to watch the VCR.
Auto TV/VCR Setting:
• Set the AutoTV/VCR feature to ON.
To play a tape:
1. Insert atape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the recording
options.
2. Press the TV.VCR button and select a different channel
on the TV.
VCR
%
CABLE, CABLE BOX, OR TENNA
TV
42
