IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 8 - Replacement procedures 8 - 161
8-7-1-2 XY Mechanism removal procedure
1.) From the rear side of the VIVID E9 / VIVID E7, remove the four (4x) fixing screws.
2.) Remove the XY mechanism.

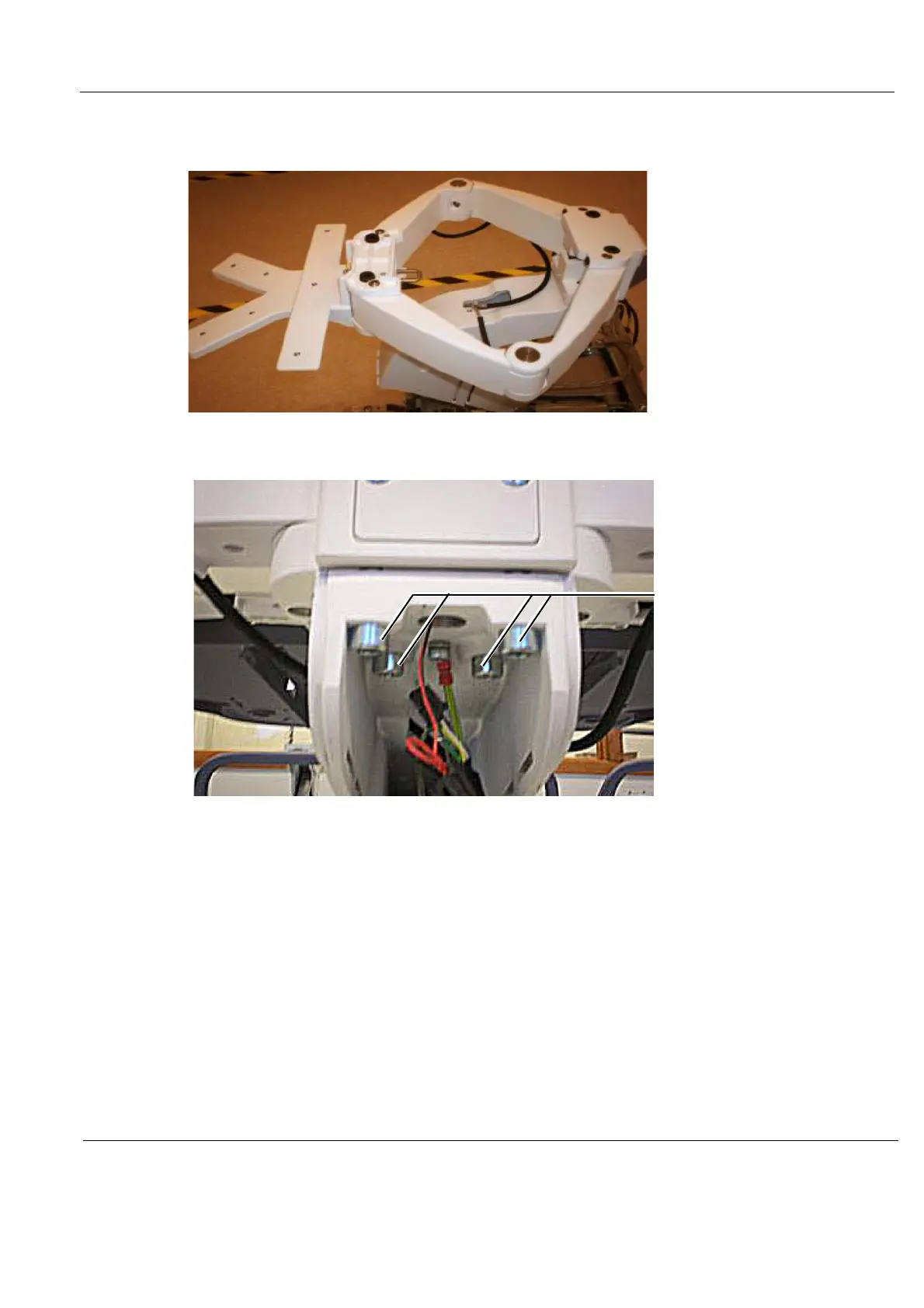

Figure 8-140 Operator Panels have been removed
Figure 8-141 Remove screws for the XY (Frogleg) mechanism
NOTE!
MAIN CABLE IS NOT SHOWN IN
THIS PICTURE.
REMOVE FOUR (4X) SCREWS
