8-7-4-2 Z-Mechanism removal procedure
The Z-Mechanism is fastened with several screws.
1.) Remove four (4x) screws from the lower part of the Z-Mechanism.
2.) Remove four (4x) screws.
3.) Lift the Z-Mechanism away.

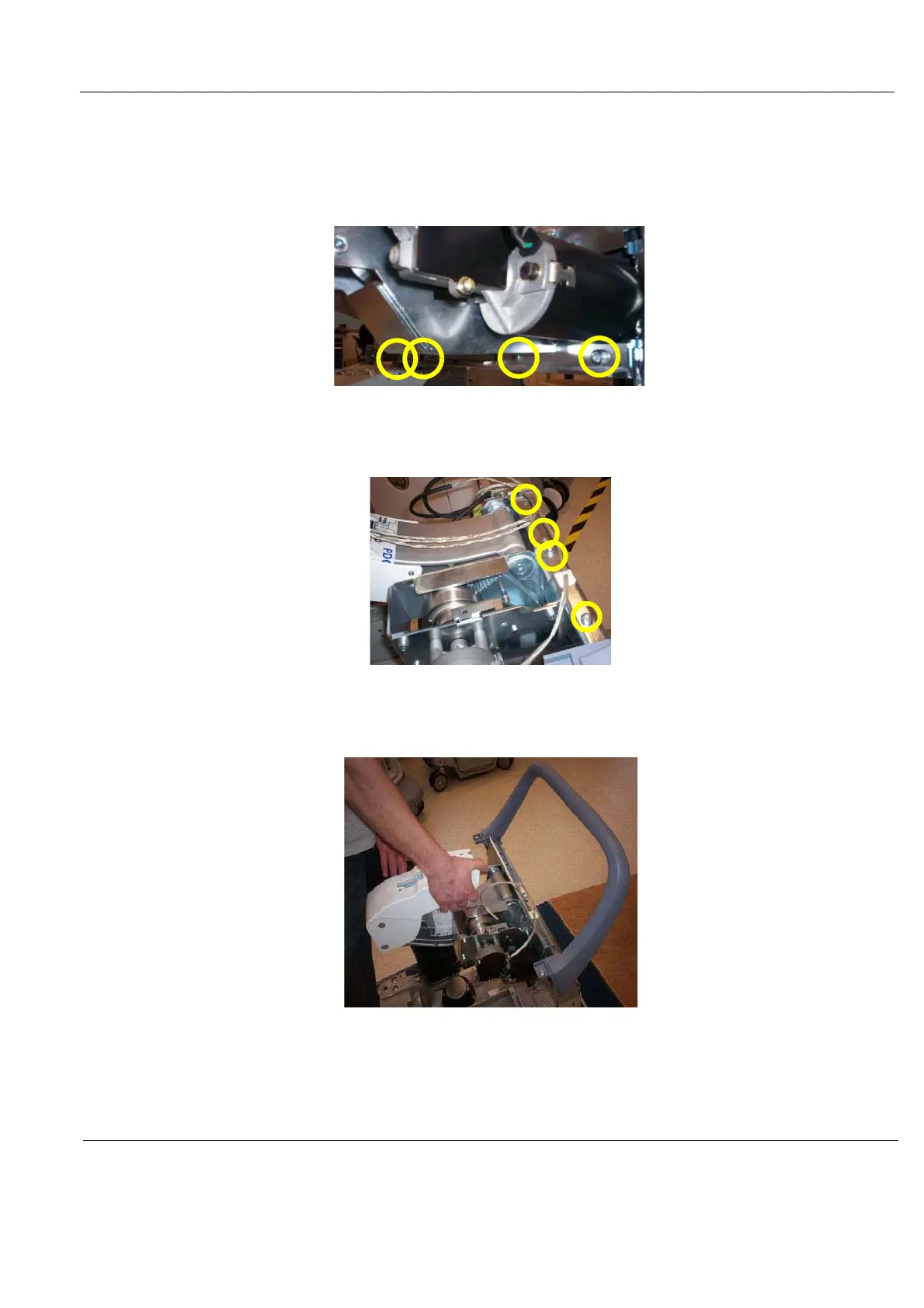

Figure 8-150 Remove four (4x) screws
Figure 8-151 Remove four (4x) screws
Figure 8-152 Lift the Z-Mechanism away.
