IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 8 - Replacement procedures 8 - 237
8-11-2-2 Remove BEP6 Power Board Assembly
Follow these steps to remove the BEP6 Power Board Assembly:
1.) Unplug the cable (plug) at the top of the BEP6 Power Board Assembly.
2.) Remove the two screws that secure the BEP6 Power Board Assembly.
3.) Slide the BEP6 Power Board Assembly out of the BEP. You will need to apply some force - use the
two brackets as handles. Refer the two small yellow rings in Figure 8-187 - BEP6 Power Board
Assembly removal (above).
4.) To install the BEP6 Power Board Assembly, go to:
8-11-2-3 "Install the BEP6 Power Board Assembly" on page 8-238.

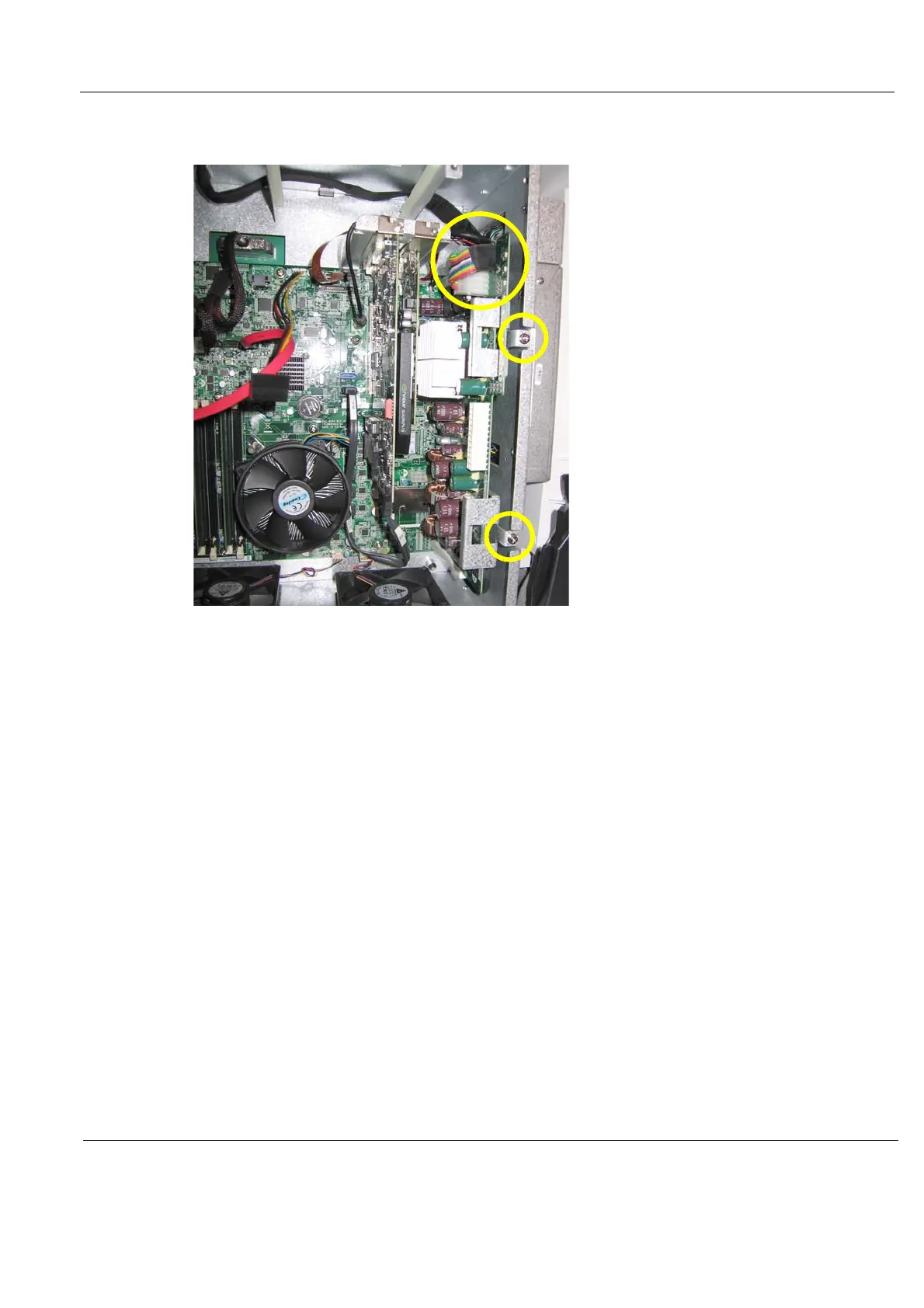

Figure 8-187 BEP6 Power Board Assembly removal
