IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 8 - Replacement procedures 8 - 243
8-11-3-2 BEP6 Hard Disk Drive (HDD) removal procedure
Follow these steps to remove the HDD:
1.) Disconnect the cables connecting the HDD.
2.) Remove the two screws that secures the HDD Bracket to the BEP’s frame.
3.) Get hold of the HDD assembly, see figure below, and pull it out.

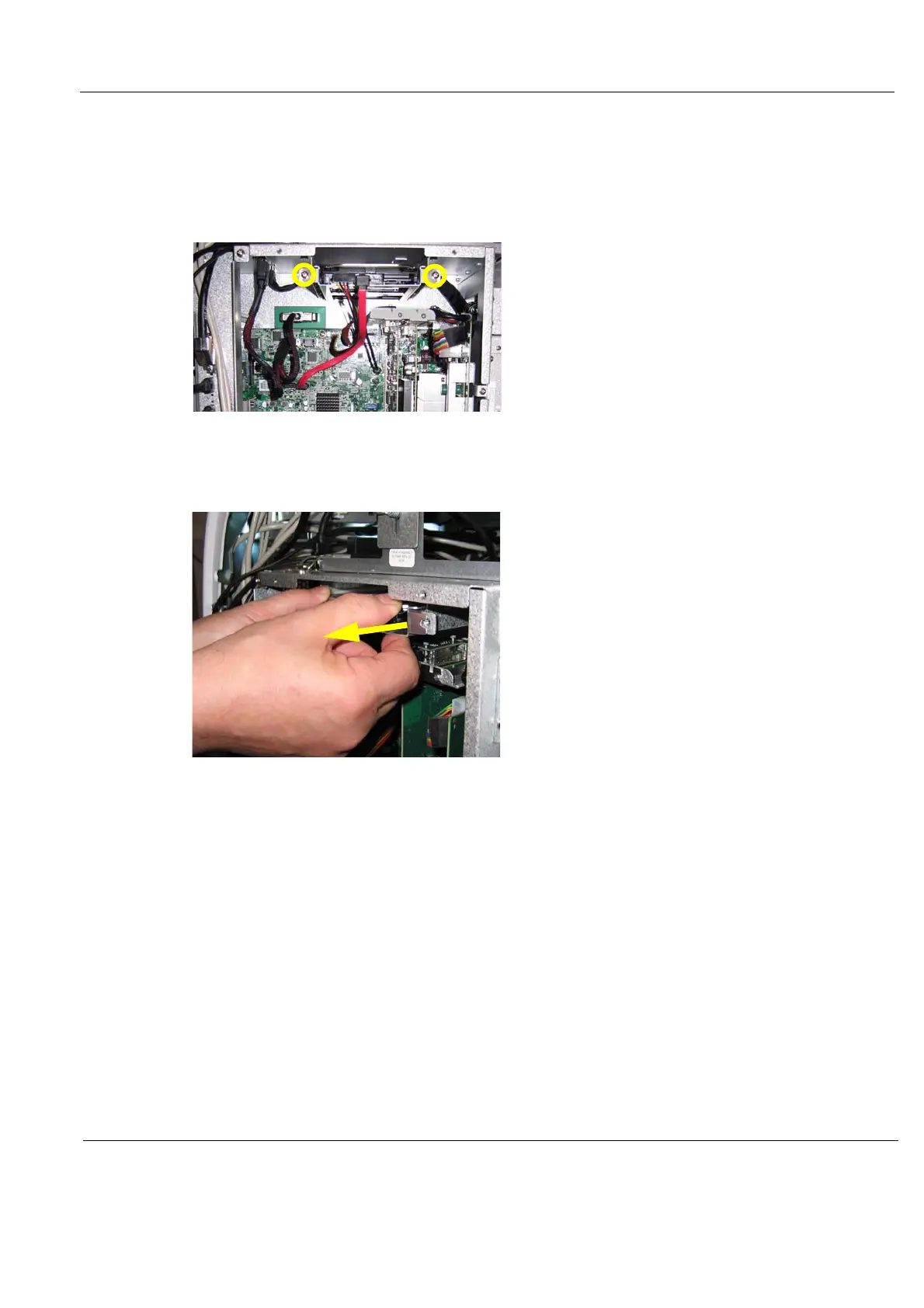

Figure 8-190 BEP6 HDD screws
Figure 8-191 Pull out the HDD assembly
