8-11-3-4 BEP5 Hard Disk Drive (HDD) removal procedure
Follow these steps to remove the HDD:
1.) Remove the screw that secures the HDD bracket.
2.) Swing the HDD bracket out.
3.) Disconnect the cables connecting the HDD.
4.) Lift the bracket up, freeing the hinge tabs from the slots.

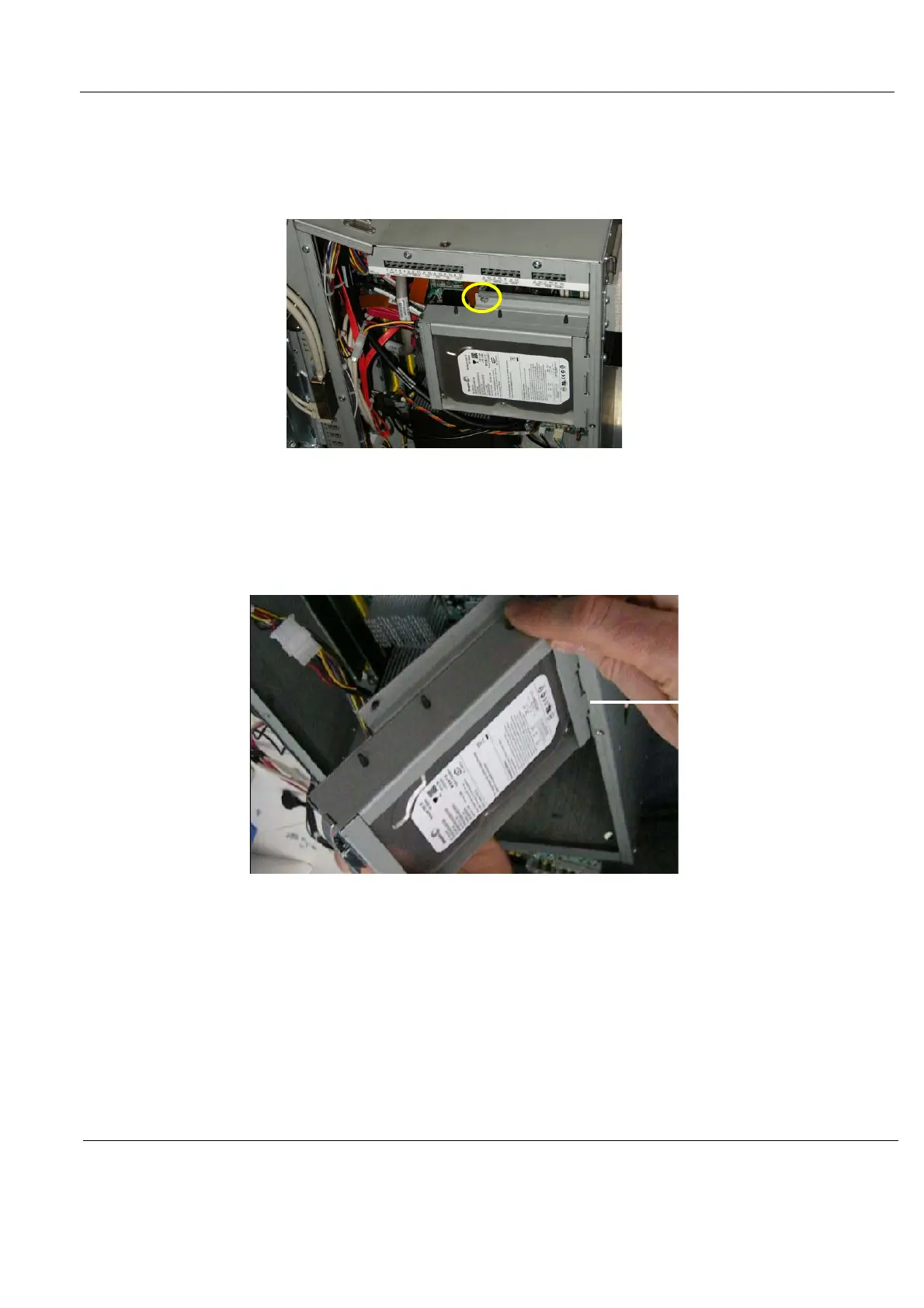

Figure 8-192 BEP Hard Disk Drive screw
Figure 8-193 BEP Hard Disk Drive
SCREW SECURES
HDD BRACKET
HDD BRACKET
HINGES
