IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
Chapter 9 - Renewal parts 9 - 59
6.
BRACKET, LOCK HDMI 2 GA307624
TO FIX THE LCD HDMI CONNECTOR TO
THE BULKHEAD BACKSIDE.
1 N Y
7.
CABLE, USB OP-BULKHEAD 5248610
CABLE G
USB (short cable inside the UI)
(J24 - P7), (J25 - P8)
2NY
8.
CABLE, XYZ UP/DOWN GA200311
CABLE U
UP/DOWN/LOCK BUTTONS
2NY
9.
LCD Monitor Arm Cable Kit GA200668
- Powerd_USB_cable_frey
- L9 19” LCD Video Cable
1NY
10.
Powerd_USB_cable_frey 5196890 1 N Y
11.
L9 19” LCD Video Cable 5256600 1 N Y

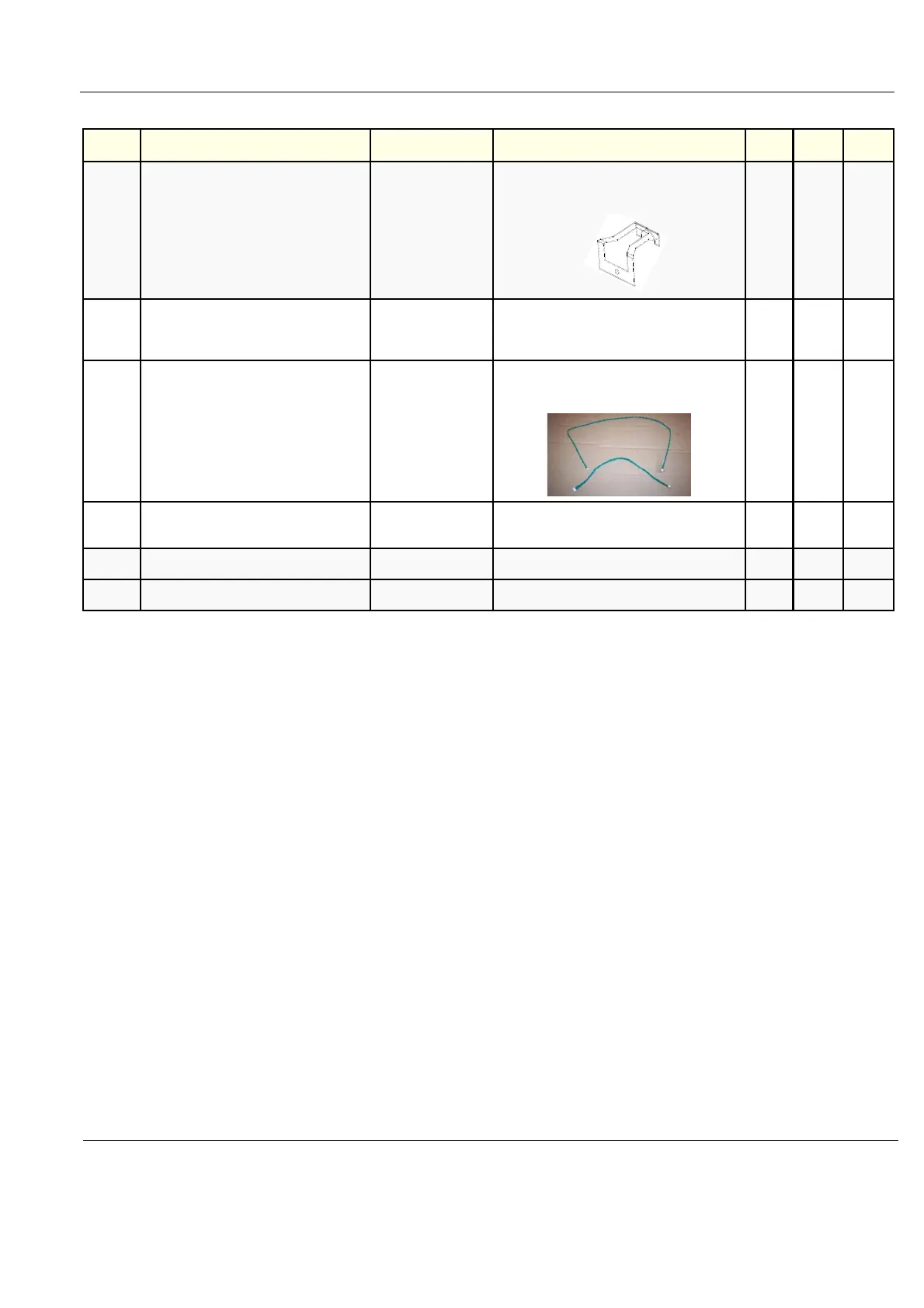

Table 9-35 VIVID E9 / VIVID E7 Top Console cables sheet 2 of 2 (cont’d)
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
