IRECTION GB091046, REVISION 2 VIVID E9 / VIVID E7 BT’13 SERVICE MANUAL
9 - 60 Section 9-17 - Internal Cables - VIVID E9 / VIVID E7
9-17-3 XYZ Controller cables

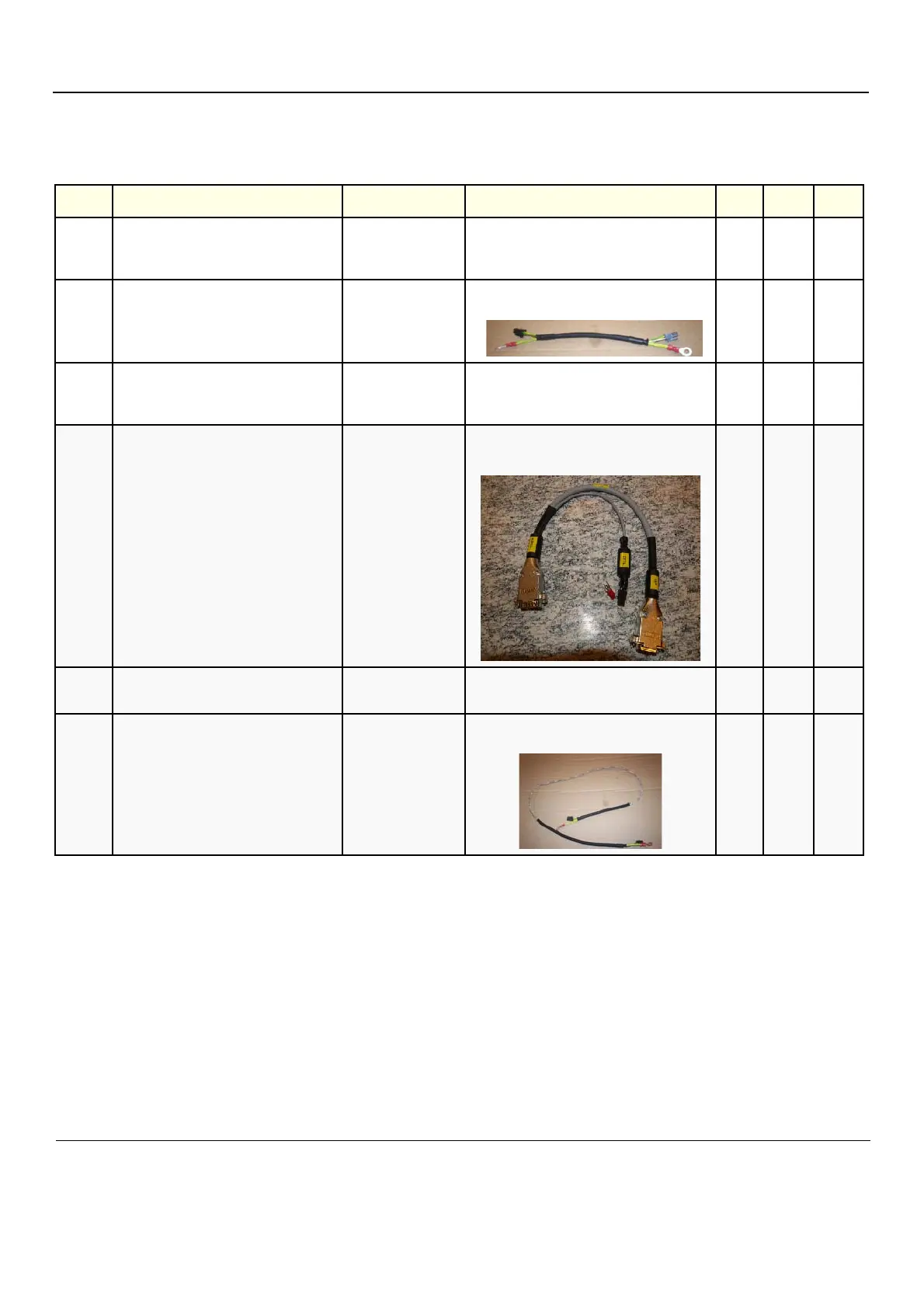

Table 9-36 XYZ Controller cables
ITEM PART NAME PART NUMBER DESCRIPTION QTY CRU FRU
1.
BRAKE CONTROL LEFT / RIGHT GA200335
CABLE B
(XYZ CONTROLLER - INNER FROG
BRAKES)
2NY
2.
BRAKE ARM LEFT RIGHT - CABLE GA200334
CABLE C (INNER BRAKE - OUTER
BRAKE)
2NY
3.
MAIN CABLE - XYZ SWITCH
SIGNALS
SEE MAIN CABLE
[PART OF MAIN CABLE]
CABLE D3 (XYZ CONTROLLER - OP
PANEL)
1NN
4.
POWER CABLE - BEP 48V GA200291
CABLE I (J1 - MAIN POWER SUPPLY -
XYZ CONTROLLER)
1 N Y
5.
CABLE USB A-B HIGH SPEED 5194492-2
CABLE L, USB CABLE (J28 - XYZ
CONTROLLER)
1 N Y
6.
XY – LOCK GA200225
CABLE T (XYZ CONTROLLER - LOCK
MOTOR)
1 N Y
