GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

7-44 Section 7-7 - Hardware Tests

NOTE: The "System Diagnostics Tool"(see: Figure 7-53 on page 7-49 ) appears on the screen.

Automatic/Not-Automatic diagnostic tests are executed from this System Diagnostics Tool.

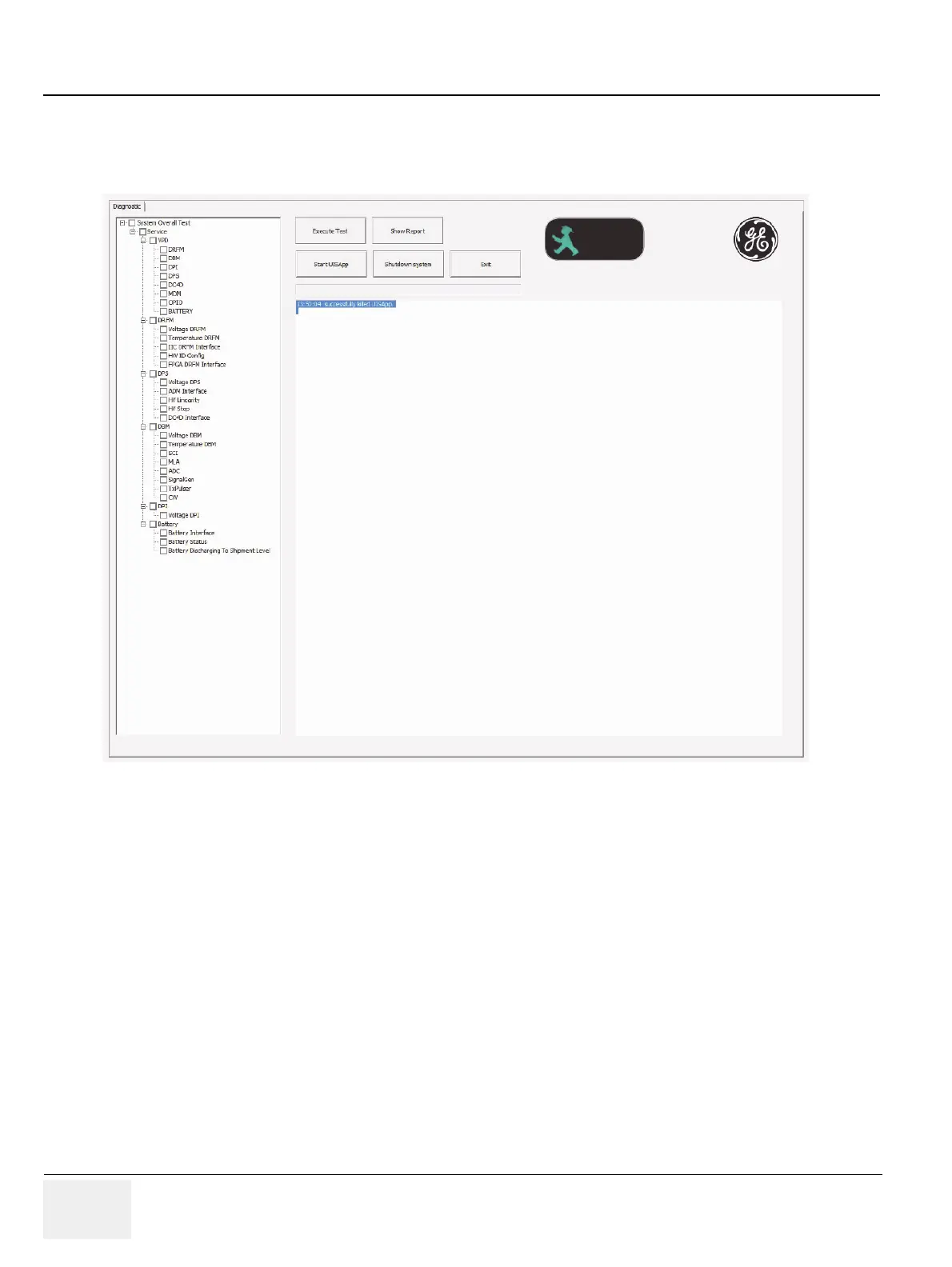

Figure 7-45 System Diagnostics Tool
