GE Voluson P8 - 8-49-5 Installation Procedure

To Next Page

To Previous Page

GE DRAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

Chapter 8 - Replacement Procedures 8-147

3.) Unscrewing 2 screws to remove the DVD .

4.) Unscrewing 4 screws to remove the SIDE STRIPS.

8-49-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-40: Replacement of the DVD - Functional Tests..

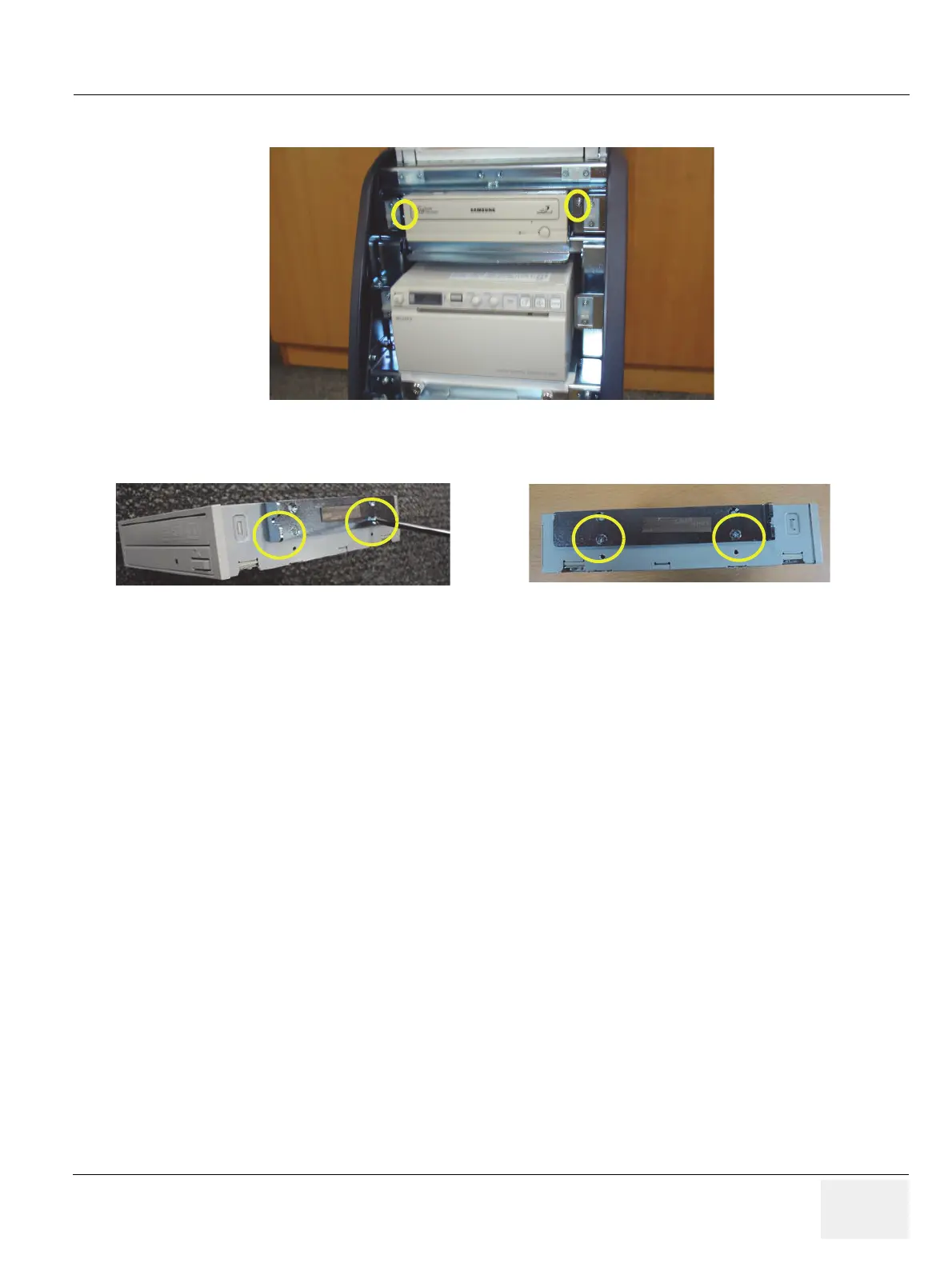

Figure 8-209 Removing the DVD

Figure 8-210 Removing the SIDE STRIPS
