GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-104 Section 8-32 - Replacement of SIDE COVER R ASSY

3.) Remove the COVER TOP CABINET PLASTIC BT16. Refer to the figure below.

4.) Unscrew 3 screws, and remove the RS Knobs. Refer to the figure below.

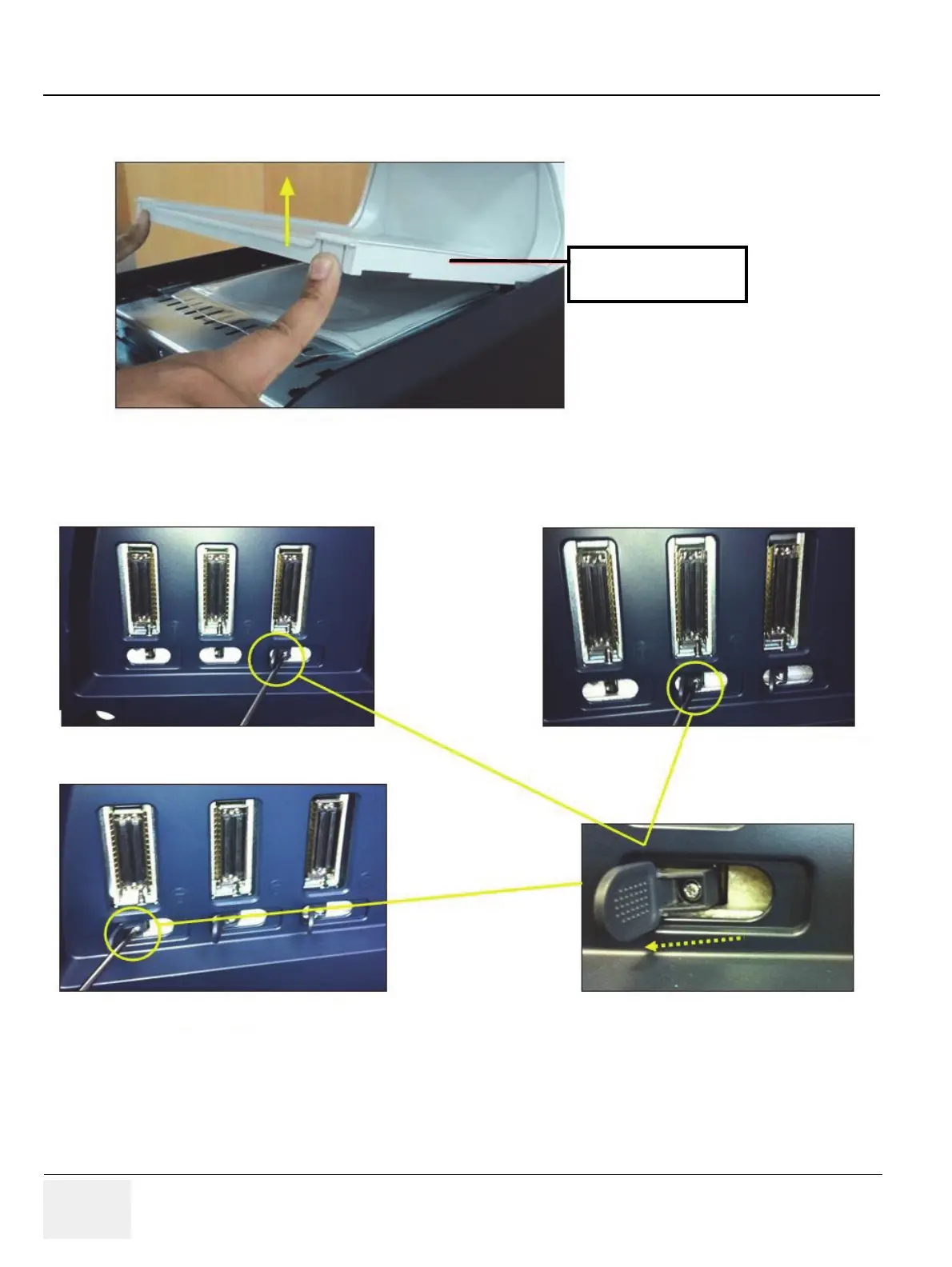

Figure 8-154 Removing the COVER TOP CABINET PLASTIC BT16

Figure 8-155 Removing the RS Knob

COVER TOP CABINET

PLASTIC BT16

Removing first RS knob

Removing second RS Knob

Removing third KR Knob
