8-124 Section 8-39 - Replacement of the REAR HANDLE

2.) Remove the TOP CABINET COVER BT16. Refer to the figure below.

3.) Remove BOTTOM PEDESTAL COVER BT16. Refer to the figure below.

4.) Unscrew 2 screws, and remove the FRONT PEDESTAL COVER BT16. Refer to the figure below.

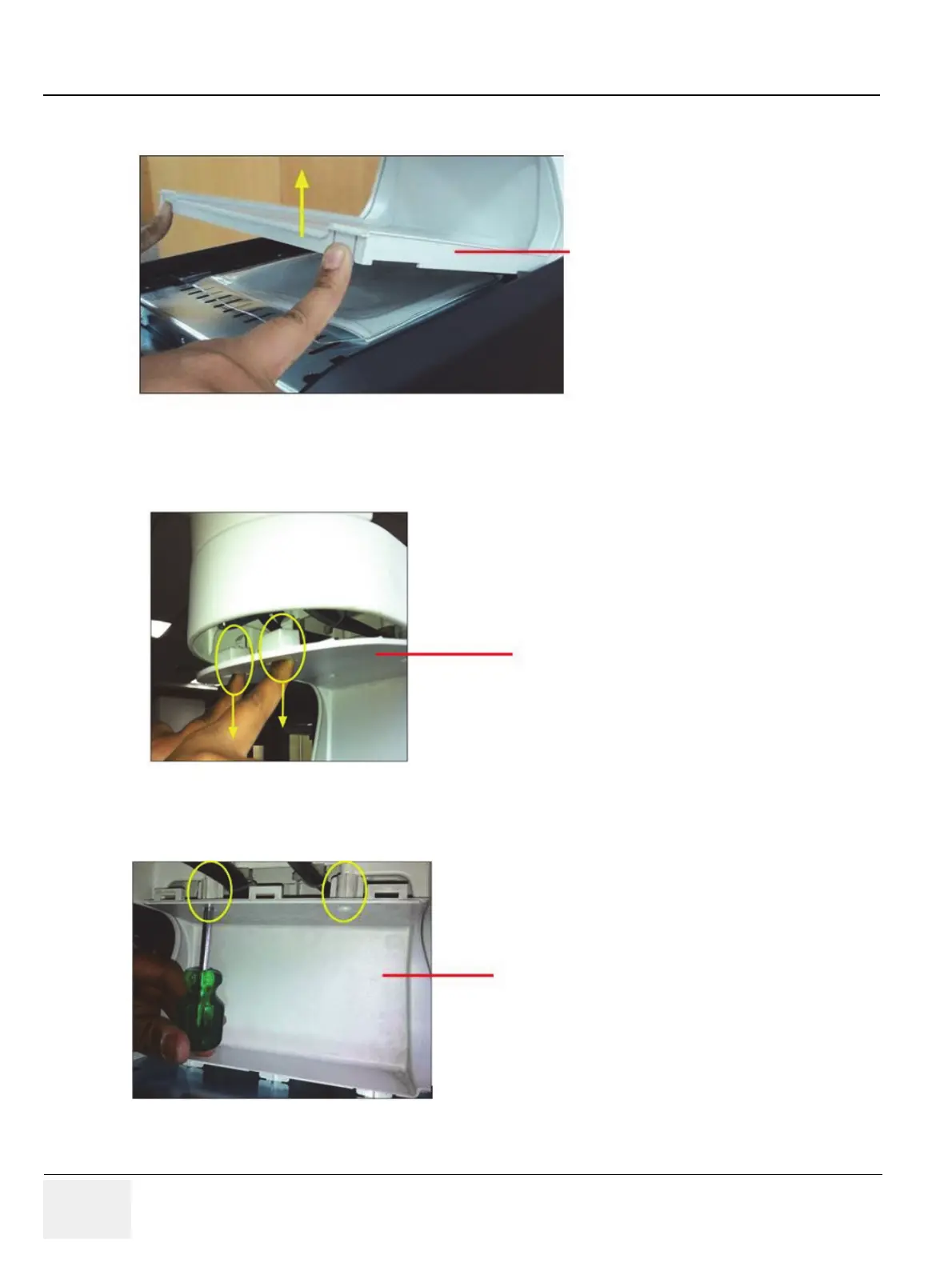

Figure 8-180 Removing the TOP CABINET COVER BT16

Figure 8-181 Removing the BOTTOM PEDESTAL COVER BT16

Figure 8-182 Removing the FRONT PEDESTAL COVER BT16

TOP CABINET COVER

BT16

BOTTOM PEDESTAL COVER BT16

FRONT PEDESTAL COVER BT16
